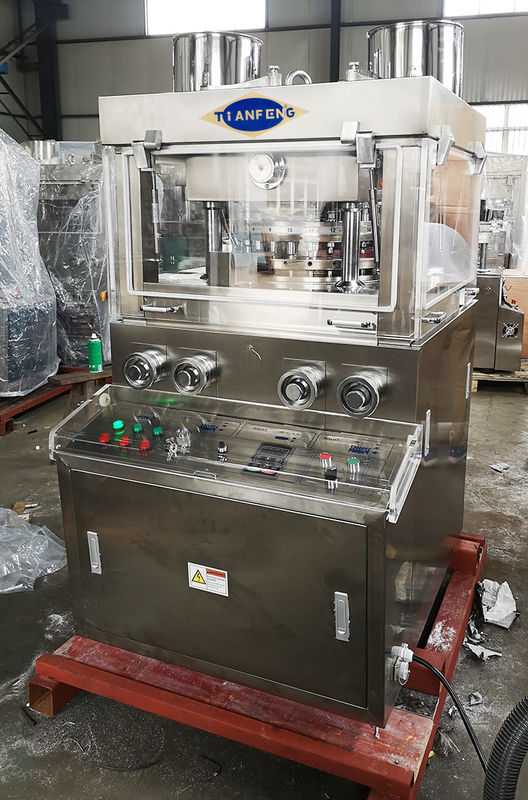

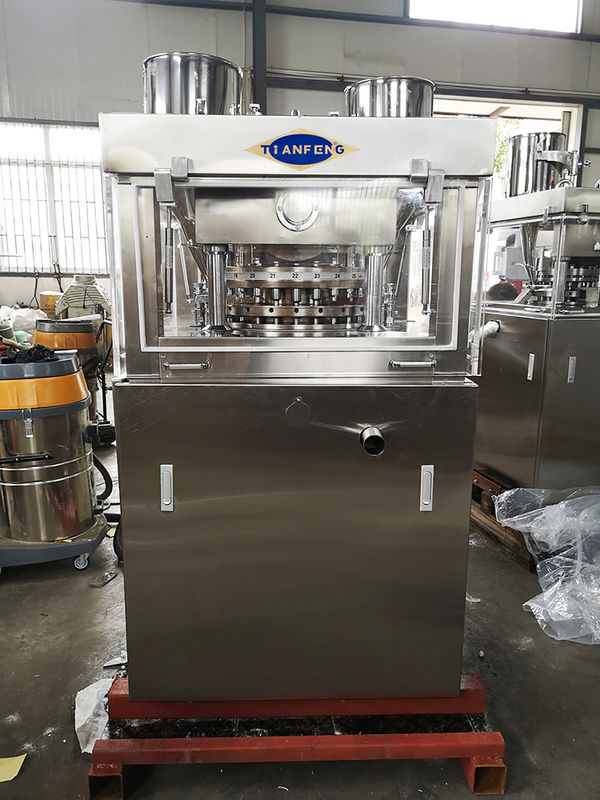

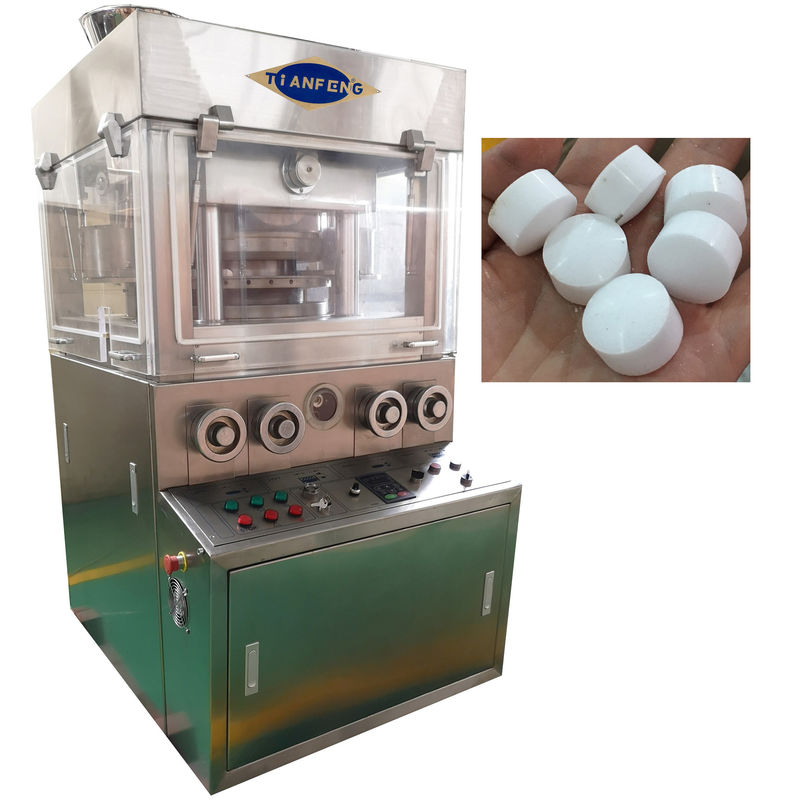

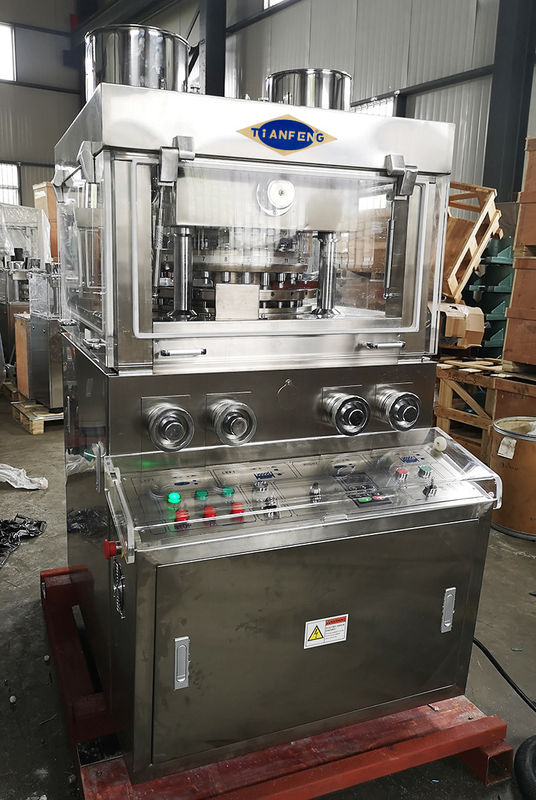

salt cube pill tablet press machine ZPW29 ZPW31 for diameter 3-25 mm salt sugar pills
ZPW29/31 Special Tablet Press Machine
Description
This machine is a double-press type .continuous automatic tablet press for pressing granular raw materials into tablets .It is mainly used in pharmaceutical industry and also the chemical,food,electronic industries.
Produce all kinds of round tablets, irregular tablets ,double-layered and annular tablets.
The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel .The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the GMP requirement.
It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier.

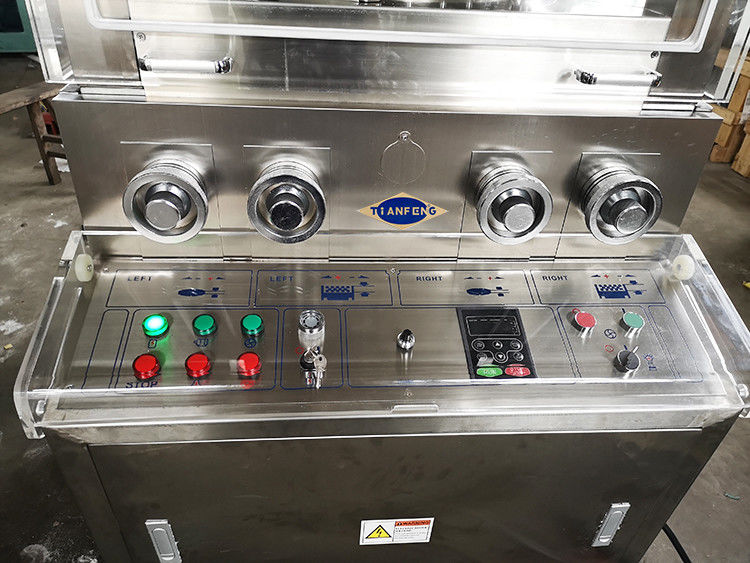

The lay-out of all the controllers and the operate parts is reasonable.
The speed adjustment of the driver is controlled by the frequency conversion device.
All the drive devices are located inside the machine so keep the machine clean.
A overload protection unit is included in the system to avoid the damage of the punches and apparatus ,when overload occurs, the machine stops automatically.
Technique Parameters of ZPW29/31 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 100 | 100 |
| Max. Dia. of tablet (mm) | 22 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 9 | 9 |
| Turret speed (r/min) | 14-25 | 14-25 |
| Production capacity (pc/h) | 48000-87000 | 48000-87000 |
| Motor (KW) | 5.5 | 5.5 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1800 | 1800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped salt tablet press machine ZPW29 ZPW31 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
