Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPB23 ZPB25
1. Applications

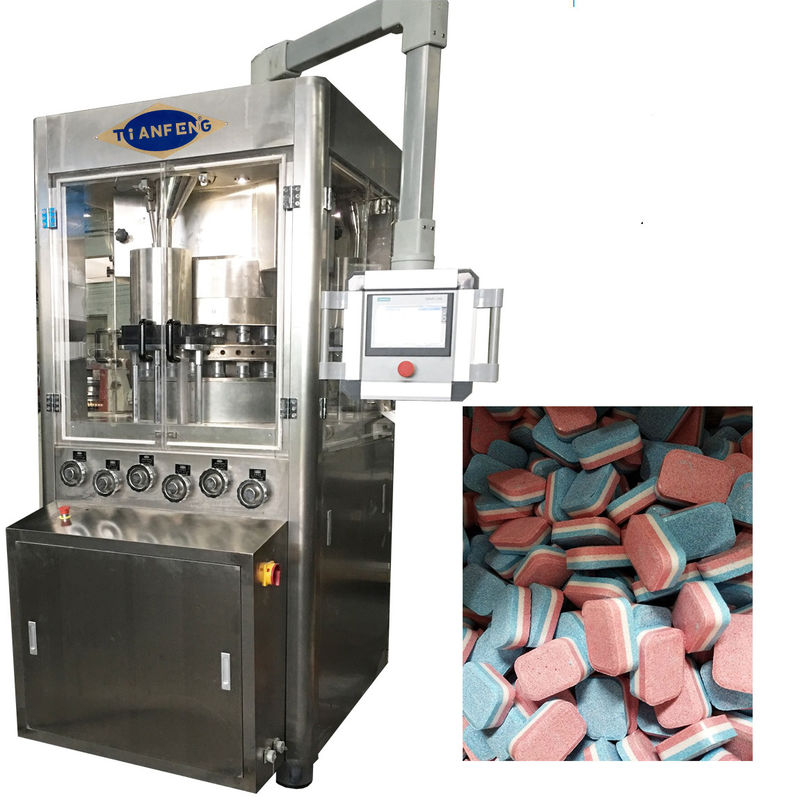

1.1 The ZPB23 rotary tablet press is mainly used in pharmaceutical, foodstuff, chemical and electronic industries. The machine is used to press various granular materials that meet the requirement for tablet pressing into tablets.
The machine is suitable to the tablet pressing production with the granular materials that contain less 10% of powder (over 100 meshes)
1.3 The machine is applicable for pressing round tablets, shaped and double-sided letter-engraved tablets.
1.4 The machine is applicable for pressing single-layer, double-layer and three-layer tablets. In ordering the machine, the customer should state clearly in the contract that single-layer, double-layer or three-layer tablets will be produced on the machine so that we can adjust the machine according to the customer,s requirement and the necessary spare parts and accessories can be supplied when the machine is delivered form our factory.
2. Main Specifications
| Item | Description | Unit | Quantity | ||
| 1 | Number of punches and dies | Set | 25 | ||
| 2 | Max. compression pressure | KN | 150 | ||
| 3 | Max. tablet diameter | mm | 45 | ||
| 5 | Diameter of upper and lower punches | mm | 50 | ||
| 6 | Length of upper punch | mm | 229 | ||
| 7 | Length of lower punch | mm | 219 | ||
| 8 | Diameter of die | mm | 70 | ||
| 9 | Height of die | mm | 50 | ||
| 10 | Working diameter of turret | mm | 640 | ||
| 11 | Rotation speed of turret | r/min | 10~15 | ||
| 12 | Max. tablet output | Three-layer |
Tab/h |
20000 | |
| 13 | Power of main motor | KW | 7.5 | ||
| 14 | Height of main machine | With hopper | mm | 2140 | |
| Without hopper | mm | 2000 | |||
| 15 | Floor space of the main machine | mm | 1500 x 1800 | ||
| 17 | Net weight of the main machine | kg | 4500 | ||
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special double layertablet press machine ZPB23 ZPB25 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
