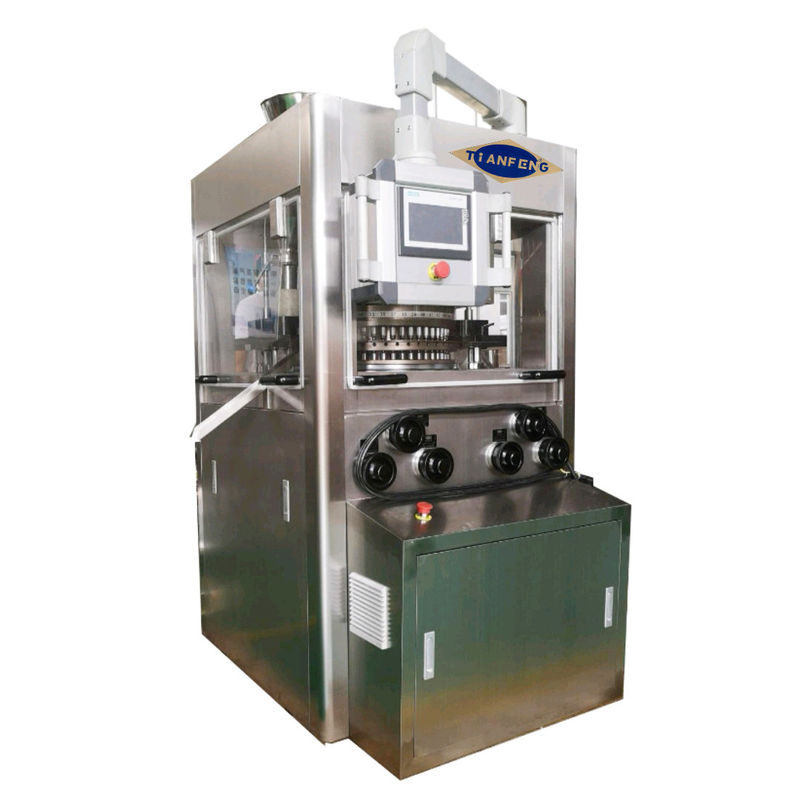

high speed rotary tablet press Pharmaceutical Pill Press

high speed rotary tablet press Pharmaceutical Pill Press

45 Turns Pharmaceutical Pill Press

45 Turns M Pharmaceutical Pill Press

45 Turns Effervescent High Speed Tablet Press

Place of Origin:

Shanghai, China

Brand Name:

Tianfeng

Certification:

CE/ISO

Model Number:

HSZP35 HSZP41 HSZP45 HSZP51 HSZP57

Contact Us
Request A Quote
Product Details
Voltage:
220V/380V, 50HZ/60HZ
Condition:
New
Warranty:
13 Months
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Power(w):
7.5KW
Power Source:
Mechanical, Electric
Type:
Rotary Type, Tablet Pressing Machine, High Capacity Output, ZPW15D ZPW17D ZPW19D Granules Powder Tablet Press Machine
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
welcome to consult
Packaging Details
export wooden case
Delivery Time
45 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
50 units/month
Product Description

Products catalogues, can download here

Shanghai Tianfeng products catalogues.pdf



pharmaceutical pill press machine 45 turns/minute high speed HSZP tablet press with European standard D tooling



Main application:
This machine is a continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.


Operating principle:
1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2. High speed with large quantity punches, double press rollers, suitable for mass production.
3. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
4. Perfect tablet pressing system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
5. Automatic oil and grease central lubrication system, ensure the lubrication of pressure rollers.
6. With voltage overload, over current protection devices, the machine can stop automatically in case of over pressure to protect the punch pins from being damaged.
7. PLC and touch screen control, automatic and easy control.
Main Parameter
Model
HSZP-35
HSZP-37
HSZP-43
Dies (sets)
35
37
43
Max. Pressure (kn)
80
80
80
Max. Pre-Pressure (kn)
60
60
60
Max. dia. of tablet (mm)
25
23
18
Max. Depth of fill (mm):
18
18
18
Max. Thickness of largest table (mm)
6
6
6
Production capacity (pcs/h)
189000
199800
232200
Turret speed (r/min)
45
45
45
Motor power (kW)
7.5
7.5
7.5
Machine Height (mm)
Without Hopper
1750
1750
1750
Machine Height (mm)
Without Hopper
1900
1900
1900
Machine Floor Space (m2)
1170*1290
1170*1290
1170*1290
Weight (kg):
3500
3500
3500
Model
HSZP-45
HSZP-53
HSZP-57
Dies (sets)
45
57
53
Max. Pressure (kn)
80
80
80
Max. Pre-Pressure (kn)
60
60
60
Max. dia. of tablet (mm)
17
13
11
Max. Depth of fill (mm):
18
18
18
Max. Thickness of largest table (mm)
6
6
6
Production capacity (pcs/h)
243000
286200
307800
Turret speed (r/min)
45
45
45
Motor power (kW)
7.5
7.5
7.5
Machine Height (mm)
Without Hopper
1750
1750
1750
Machine Height (mm)
Without Hopper
1900
1900
1900
Machine Floor Space (m2)
1170*1290
1170*1290
1170*1290
Weight (kg):
3500
3500
3500


high speed rotary tablet press Pharmaceutical Pill Press 0high speed rotary tablet press Pharmaceutical Pill Press 1high speed rotary tablet press Pharmaceutical Pill Press 2high speed rotary tablet press Pharmaceutical Pill Press 3

Packaging & Shipping



Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

Usually shipped salt tablet press machine HSZP35 HSZP41 HSZP51 HSZP57 by sea.

Our Services

One station service to make sure our customer get good products and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours

except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Spare Part Replacement

First round mold for free, discount if more order. Send one stainless steel dust collector for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.


2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!


3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
