Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
HSZP35 HSZP41 HSZP45 HSZP51 HSZP57
Video
Video
Video

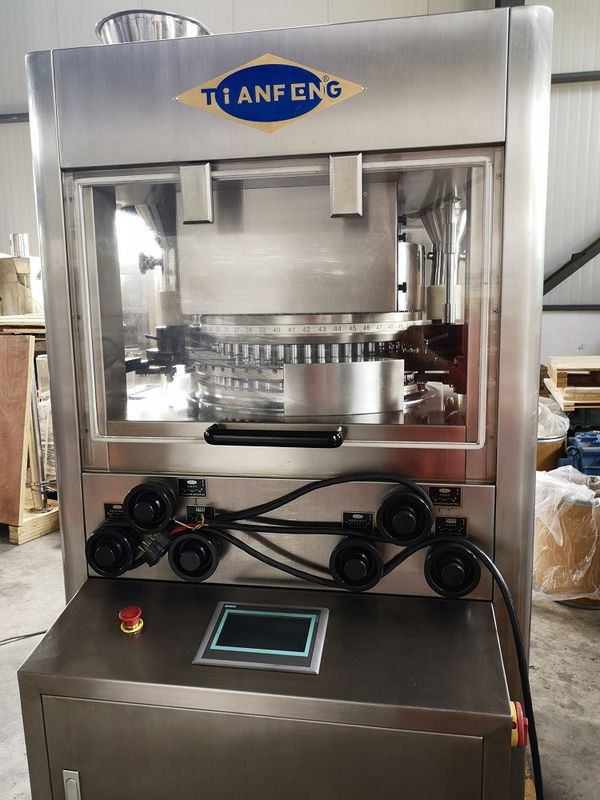

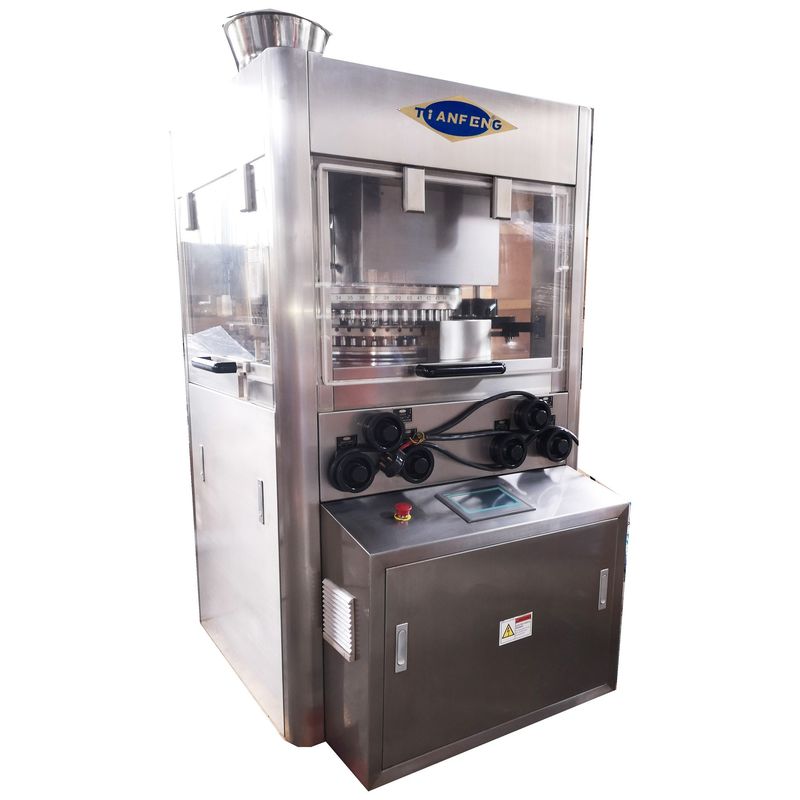

tablet compression machine pharmaceutical equipment pill maker high capacity rotary tablet pressing machine HSZP series
HSZP series high speed rotary tablet machine is widely used in the pharmaceutical industry, but also can be used in food, chemical, electronics and other industries. The utility model is suitable for drying granular raw materials, and is not suitable for semi solid, moist particles, low melting point and raw materials. Circular sheet capable of pressing double-sided lettering and geometric shape of profiled sheet.
1. The work area uses the full closed transparent window structure, the dust pollution is little, the seal is good.
2. The studio is completely separated from the transmission mechanism to effectively prevent cross infection.
3. GMP standards for drug production and quality management.
4. This machine has the functions of frequency conversion speed regulation, pressure average display and overload protection, emergency braking, etc..
5. The company adopted the Bechl lubricator, ABB motor, INVT inverter, SIEMENS display, OMRON switch, circuit breaker.
Technical parameter
| Model | HSZP-35 | HSZP-37 | HSZP-43 | HSZP-45 | HSZP-53 | HSZP-57 | |
| No.of Stations | 35 | 37 | 43 | 45 | 53 | 57 | |
| Type of Tooling | IPT | IPT | IPT | IPT | IPT | IPT | |
| Max. Pressure (kn) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Max. Pre-pressure (kn) | 60 | 60 | 60 | 60 | 60 | 60 | |
| Max. Filling Depth (mm) | 18 | 18 | 18 | 18 | 18 | 18 | |
| Max. Tablet Dia (mm) | 25 | 23 | 18 | 17 | 13 | 11 | |
| Max. Tablets output (ten thousand/ hour) | 18.9 | 19.98 | 23.22 | 24.3 | 28.62 | 30.78 | |
| Max. Turret Speed (r/min) | 45 | 45 | 45 | 45 | 45 | 45 | |
| Main Motor Power(kw) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
| Height of the Machine (mm) | Without Hopper | 1750 | 1750 | 1750 | 1750 | 1750 | 1750 |
| With Hopper | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | |
| Machine Floor Space (mm²) | 1170*1290 | 1170*1290 | 1170*1290 | 1170*1290 | 1170*1290 | 1170*1290 | |
| Machine Net Weight(kg) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped salt tablet press machine HSZP35 HSZP41 HSZP51 HSZP57 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
