Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP23 ZP25 ZP27

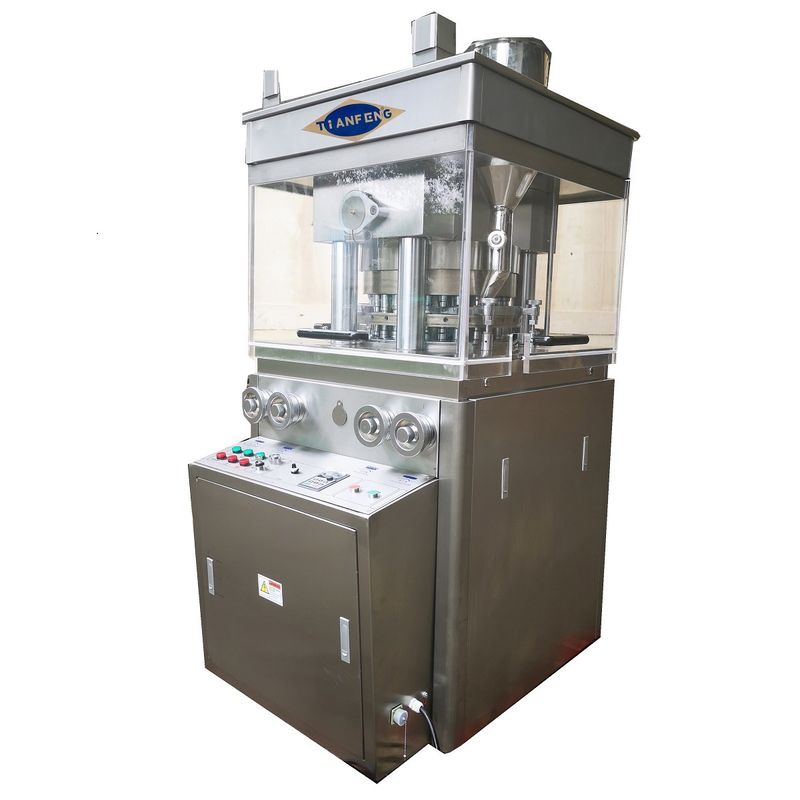

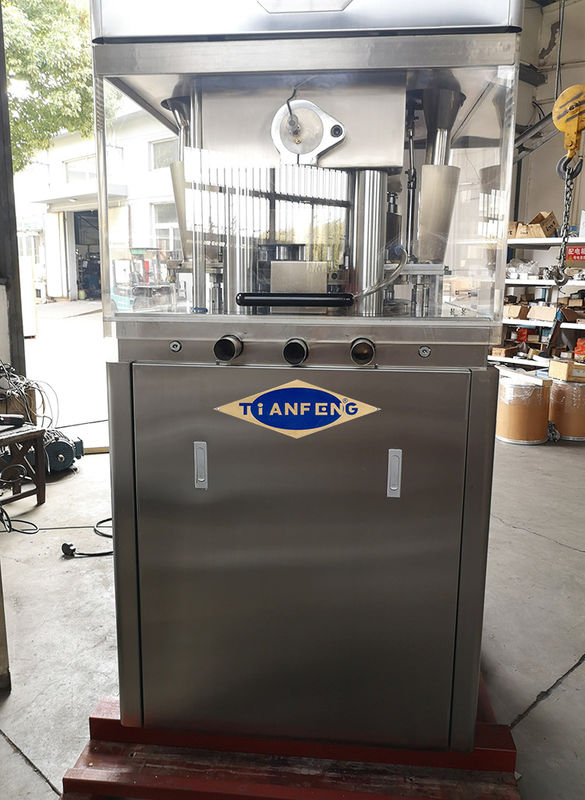

special tablet press machine high pressure big bolus pill pressing for veterinary drugs animal medicine pressing Zp27
Application:
This machine is a double-press type continuous automatic tablet press machine for pressing granular raw material into tablets. It is mainly used in pharmaceutical. Chemistry, foodstuff, electronic industries and suitable for make large size tablets.
Features:
Technique Parameter of ZP-27 Rotary Tablet Press Machine
| TYPE | ZP-25 | ZP-27 | ZP-23 |
| Dies (sets) | 25 | 27 | 23 |
| Max. Pressure (Kn) | 100 | 100 | 100 |
| Max. Dia. of tablet (mm) | 35 | 30 | 40 |
| Max. Thickness of tablet(mm) | 15 | 15 | 15 |
| Max. Filling Depth (mm) | 30 | 30 | 30 |
| Max production capacity (up to 28mm) (pieces/h) | 75000 | 81000 | 69000 |
| Rotational diameter (mm) | 445 | 445 | 445 |
| Rotational speed of revolving table (r/min) | 10-25 | 10-25 | 10-25 |
| Diameter of middle mould (mm) | 52 | 52 | 52 |
| Highness of middle mould (mm) | 38 | 38 | 38 |
| Length of up and down punch pole (mm) | 45 | 45 | 45 |
| Length of up punch pole (mm) | 175 | 175 | 175 |
| Length of down punch pole (mm) | 180 | 180 | 180 |
| Overall dimensions (mm) | 1000×1250×1900 | 1000×1250×1900 | 1000×1250×1900 |
| Net weight (KG) | 3200 | 3200 | 3200 |
| Motor model | YU132M4A | YU132M4A | YU132M4A |
| Motor (KW) | 7.5 | 7.5 | 7.5 |
| Voltage(V) | 380 | 380 | 380 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW29 ZPW31 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
