5 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine

5 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine

Single Punch Tdp 5 Tablet Press

Tdp 5 Pill Press Machine

Tdp 5 Tablet Press Machine

Place of Origin:

Shanghai, China

Brand Name:

Tianfeng

Certification:

CE/ISO

Model Number:

TDP-5

Contact Us
Request A Quote
Product Details
Warranty:
13 Months
Power(w):
0.75 KW
Power Source:
Optional 380V/220V 50Hz/60Hz
Product Name:
Single Punch Tablet Compression Machine
Capacity:
5500 Pcs/hour
Type:
Single Punch Tablet Making Machine
After-sales Service Provided:
Online Support
Maximum Diameter Of Tablet:
20 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Welcome to consult
Packaging Details
plywood export wooden case/ plywood case
Delivery Time
15-25 working days
Payment Terms
T/T, , Western Union, L/C
Supply Ability
99 unit/month
Product Description
tablet compression machine TDP-5 tablet press 5 ton pressure 5000 pcs/hour home use pill press


Knowledge of tablet ingredients before you start tableting.
There are thousands of powder types. According to our factory's many years of experience, most of the raw materials are suitable for tabletting, or after simple processing, they are suitable for tabletting. Some raw materials are not suitable for tabletting.
Please refer to the following elements or consult customer service whether it is suitable for tabletting, please read it carefully, so as not to cause your loss due to withdrawal due to raw material problems.
Suitable for tablet material requirements:
1. Dry powder: The raw material must be dry powder and the moisture content must be controlled within 5%.
2. Fluidity: The raw material needs to have good fluidity (ideally the particle size of the tablet material is preferably between 20 and 60 mesh, and a small amount of fine powder is better). If the raw material fluidity is not good, it can be solved by making particles.
3. Adhesiveness: Tackiness means that the powder can form agglomerates or the powder can stick together by external forces. For non-sticky raw materials, it may be necessary to increase the binder to improve (such as maltodextrin, starch, sugar, microcrystalline cellulose, etc.)
4. Does not contain a large amount of oil: Raw materials containing a large amount of oil are difficult to form, so the material must not contain too much oil. If you are not sure whether your raw materials are suitable for tabletting, you can send us the raw materials and we will help you test the machine.


Technical Parameters



Model
TDP-5
Filling depth
16mm(adjustable)
Tablet thickness
6mm(adjustable)
Tablet diameter
20mm (replaceable mold)
Tablet pressure
50 kN
Maximum tablet diameter
5-20mm
Motor power
750w
Production capacity
5500pcs/ hour
Machine weight
120kg
Machine size
70x40x80cm

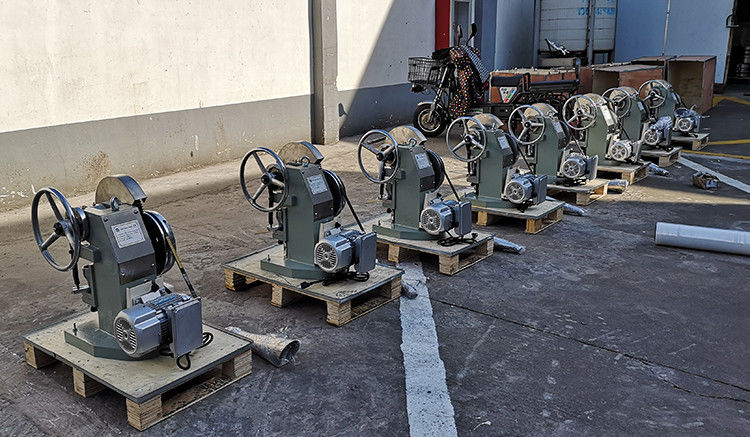

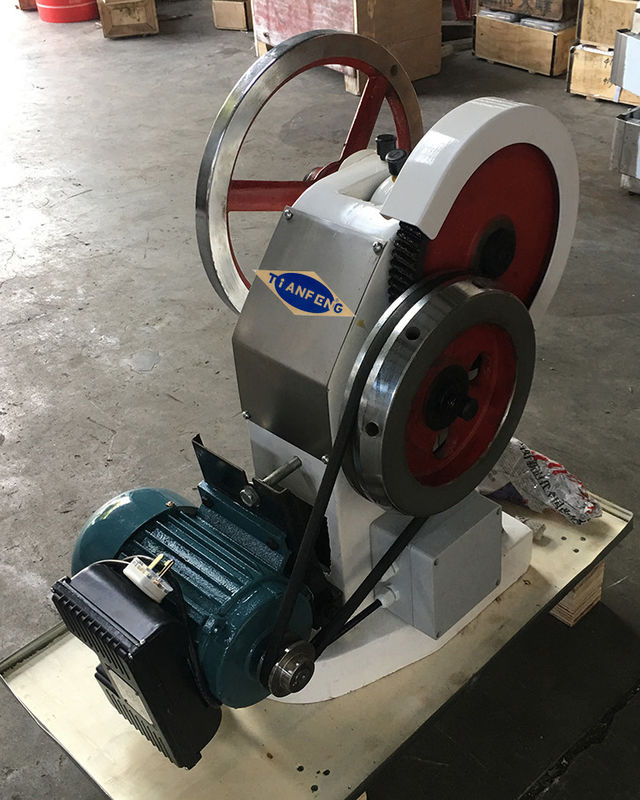

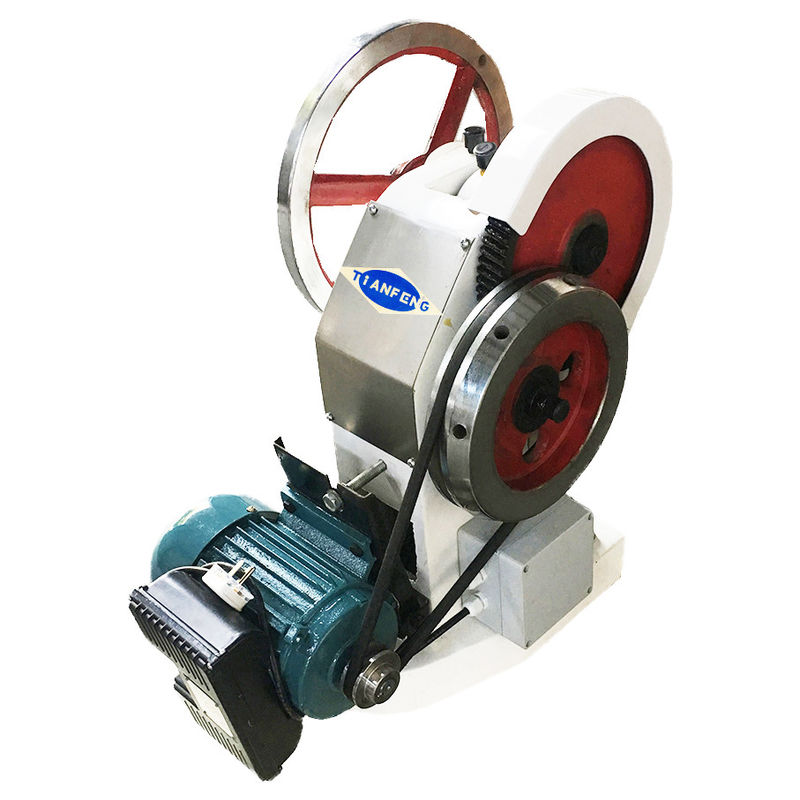

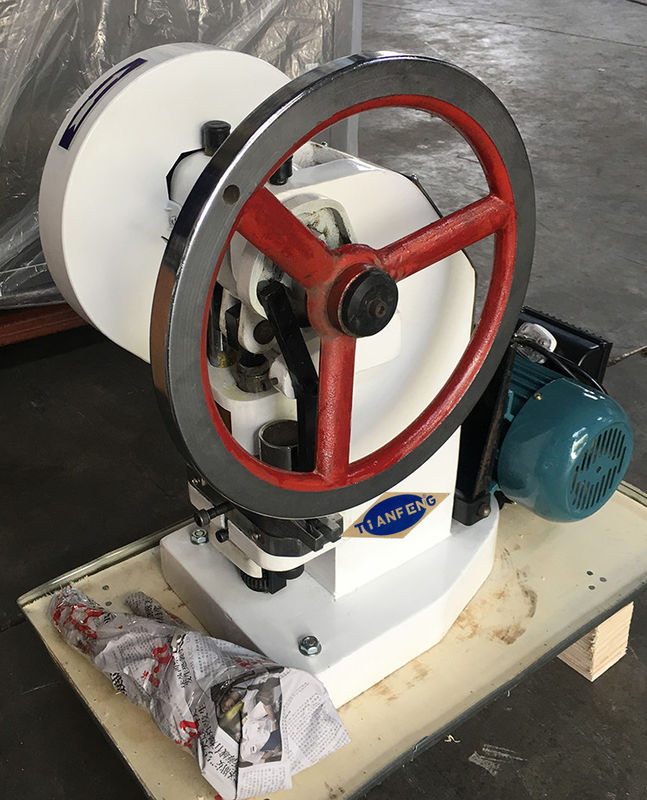

5 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine 05 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine 15 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine 2

Packaging & Shipping

5 Ton 5000 Pcs/H Home Single Punch Tdp 5 Tablet Press Machine 3

 Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

TDP5 single puch pill press machine usually send by sea. also can send by air or express.

Our Services

One station service to make sure our customer get good products and good service.



(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours

except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Spare Part Replacement

First round mold punch die set for free, discount if more order.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.


2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!


3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
