Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW8 ZPW10

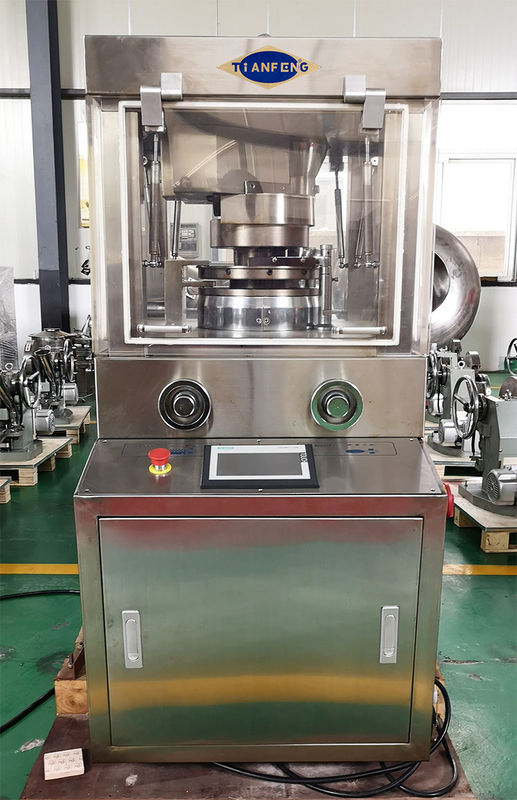

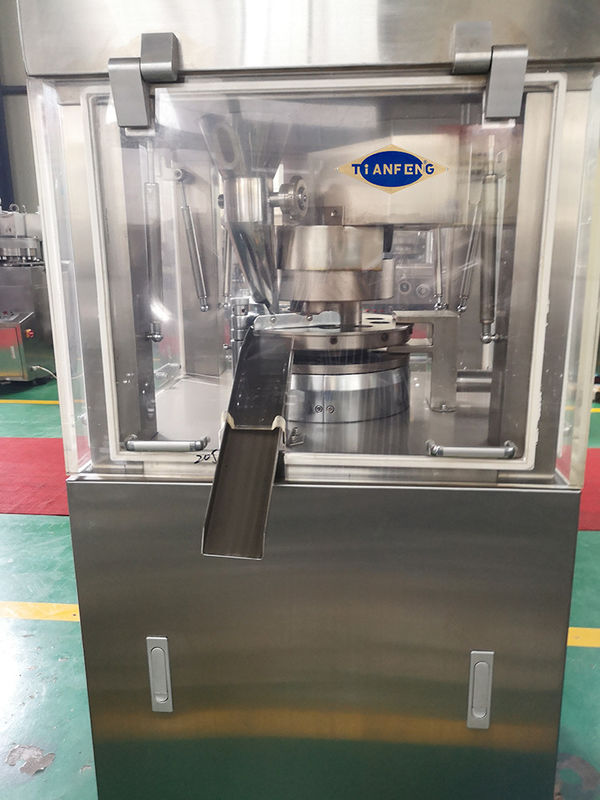

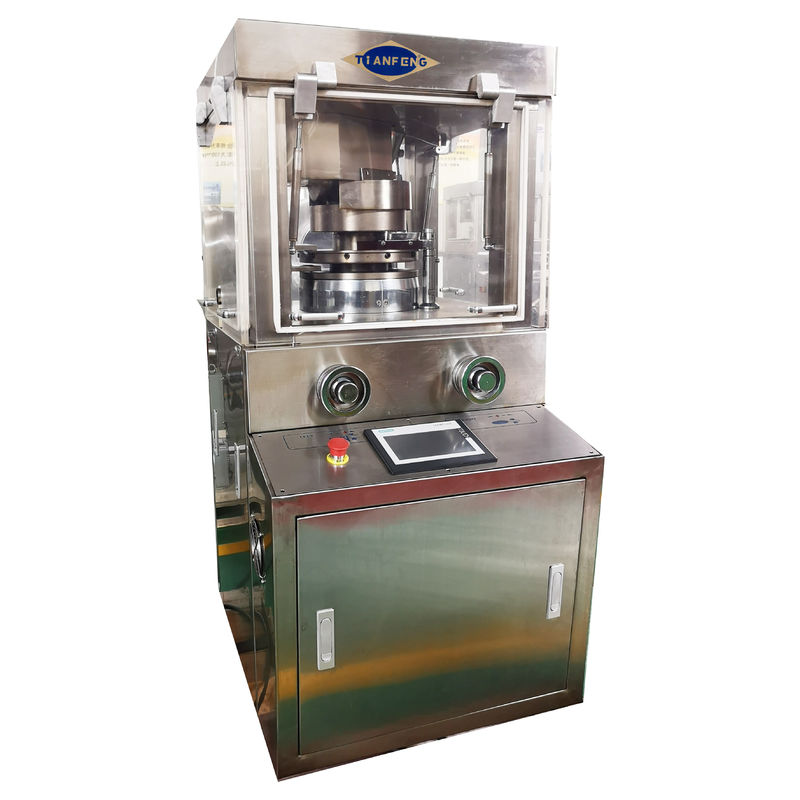

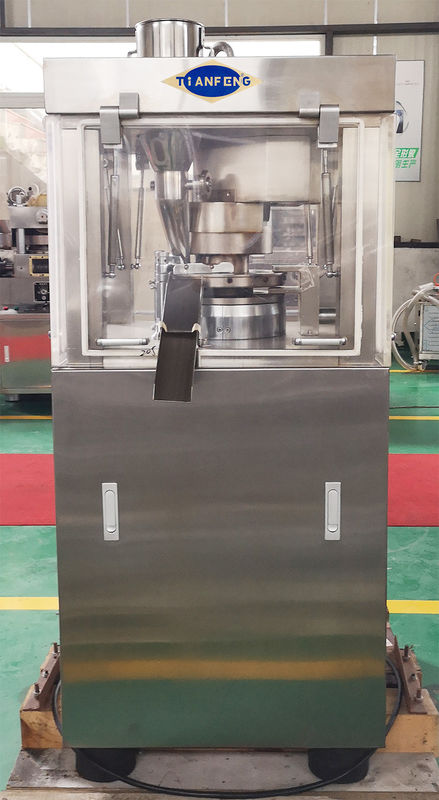

Lab pharmaceutical machine rotary tablet press with PLC touch screen 80KN pressure diameter 25mm pill making machine
Main uses
ZPW8 rotary tablet press machine is a singlepress type, continuous automatic tablet press for pressing granular raw materials into tablets. ZPW8 rotary tablet press is mainly used in pharmaceutical, chemical, food, electronic and other industries. The cover of ZPW8 rotary tablet press machine is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution, meeting the G.M.P requirement.ZPW8 rotary tablet press has transparent windows so that press condition can be observed clearly and the Windows can be opened. Cleaning and maintenance is easier. All the controller and devices are located in one side of the machine, so that it can be easier to operate. Use RHVC to regulate the electric control of motor speed, easy operation, steady running, safe and accurate. All transmission devices are arranged inside the machine, keep the parts clean.
Characteristics
1. The maximum pressure is 80KN.
2. The maximum diameter is 23mm.
3. PLC and touch screen controlled.
4. Displaying pressure, capacity, rotate speed.
2. It is the first selection of laboratory and small batch production.
Technical Parameters
| Model | ZPW-8 |
| Dies (sets) | 8 |
| Max. Pressure (KN) | 80 |
| Max. Dia. of tablet (mm) | 23 |
| Max. Filling Depth (mm) | 15 |
| Thickness of largest tablet (mm) | 6 |
| Turret speed (r/min) | 0-30 |
| Production capacity (pc/h) | 14400 |
| Motor Power (KW) | 2.2 |
| Overall dimensions (mm) | 820*650*1550 |
| Net weight (KG) | 840 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special double layertablet press machine ZPW8 ZPW10 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
