Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPS8 ZPS10

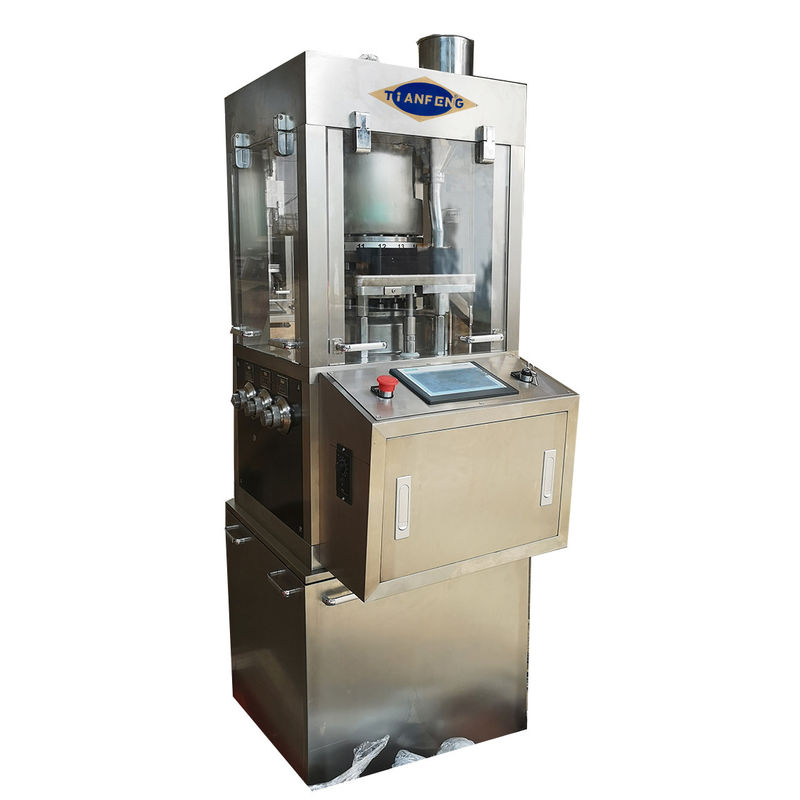

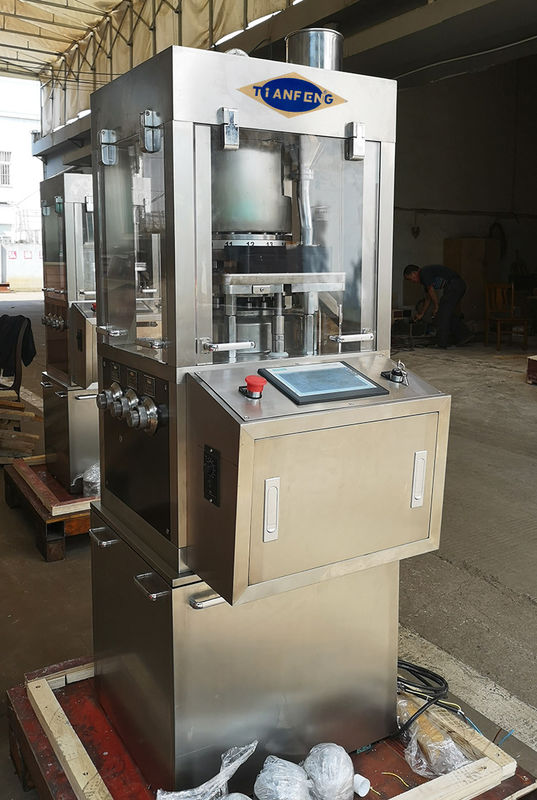

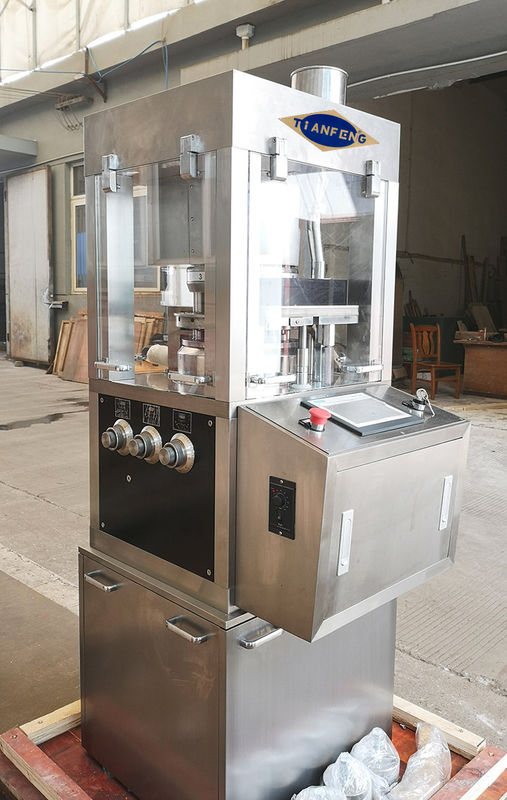

Lab pharmaceutical machine rotary pill press with PLC touch screen 10KN pre-pressure pill maker with D tooling
Characteristics
1. It is a single –sided press machine. Use IPT punch, can press granular raw materials into round tablet and a variety of special-shaped pieces.
2. There are two features, pre-pressure and main pressure that can improve the quality of the tablet.
3. Adopts PLC speed regulating device, convenient operation, safe and reliable.

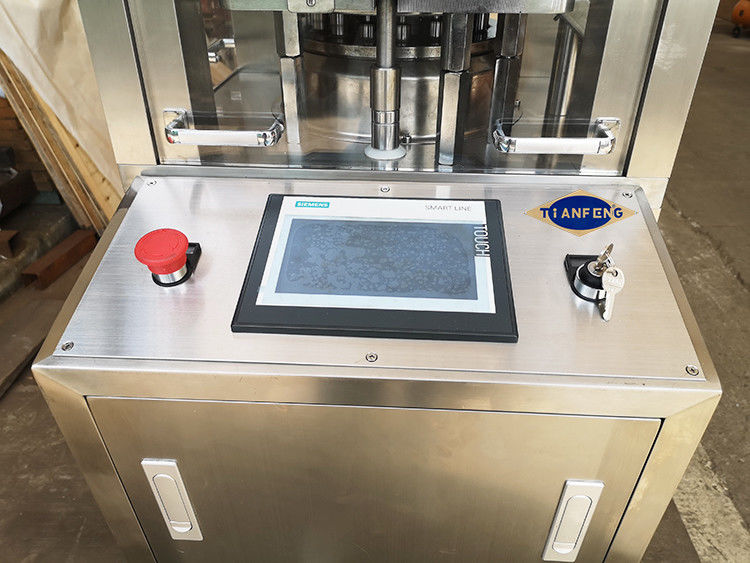

4, PLC touch screen has a digital display, if connected with US ports, enabling tablet operating state data collection.
5. The main transmission structure is reasonable, good stability, long service life.
6. With a motor overload protection device, when the pressure overload, can shut down automatically. And have overpressure protection, emergency stop and strong exhaust cooling devices.
7. Stainless steel external casing is fully enclosed; all spare parts to be in contact with the materials are made of stainless steel or surface treated specially.

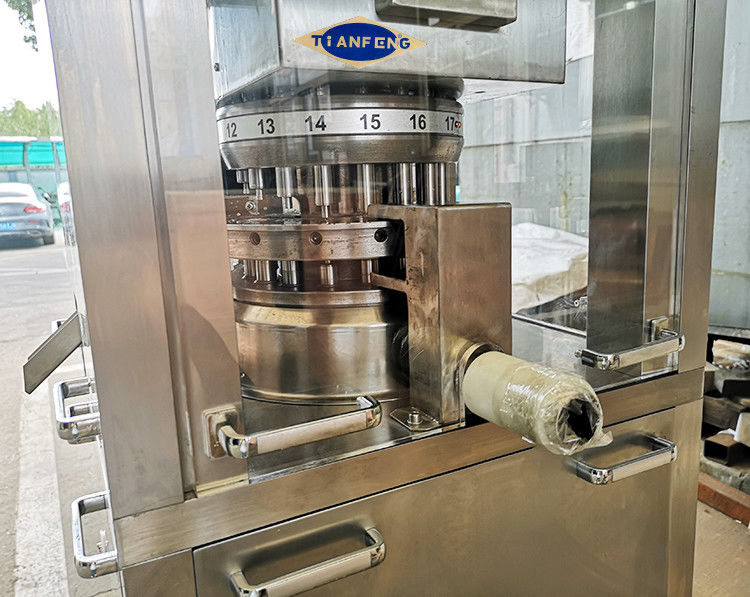

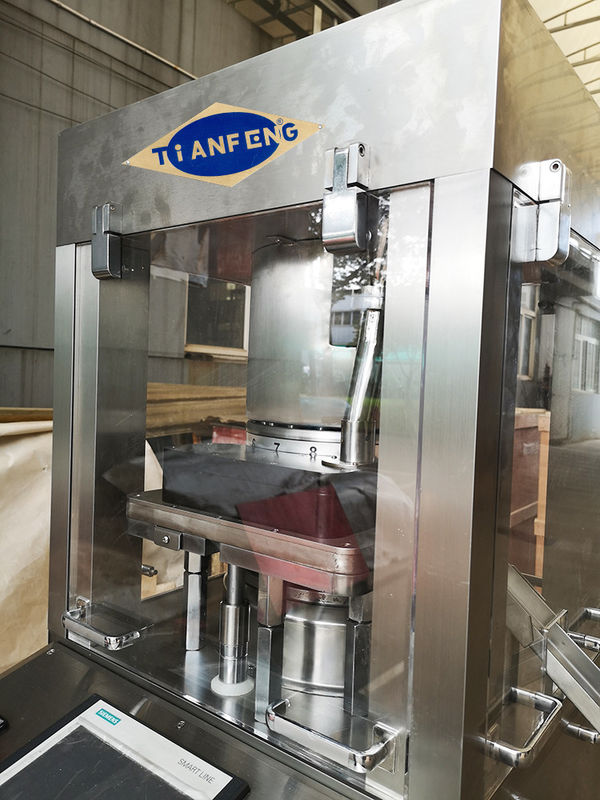

8. The compression area is enclosed with transparent organic glass, can fully open, easy to clean and maintain.
9. Optional forced feeder or ordinary feeder.
Main uses
This machine is an intelligent small rotary tablet press machine. It can apply to the R & D centers of pharmaceutical industry, laboratories and other small batch production of tablets.
It uses PLC control system; touch screen can display working turntable speed. It can set the system pressure, filling depth, pre-press, thickness and capacity of tablets, can display the working status of each punch in immediate working pressure, and can set the average pressure of dies. The impeller speed of forced feeder also can be displayed. It can display the contents of emergency stop, motor overload, system overpressure and other faults.
Technique Parameter
| Model | ZPS8 | ZPS10 |
| Dies (sets) | 8 | 10 |
| Type of Tooling | 1′D | 1′D |
| Max. Pressure (KN) | 60 | 60 |
| Max. Pre-Pressure(KN) | 10 | 10 |
| Max. Tablet Diameter (mm) | 22 | 22 |
| Max. Filling Depth (mm) | 17 | 17 |
| Max. Thickness of largest tablet (mm) | 6 | 6 |
| Max. Turret Speed(r/min) | 5-30 | 5-30 |
| Capacity (pcs/hour) | 14400 | 18000 |
| Motor Power (KW) | 2.2 | 2.2 |
| Overall dimensions (mm) | 750×660×1620 | |
| Net weigh t(kg) | 780 | |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special double layertablet press machine ZPW8 ZPW10 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
