Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-2 ZPW-4-4
Products catalogues, can download here
Shanghai Tianfeng products catalogues.pdf
Special tablet press machine ZPW-4-4 ZPW-4-2 compressed biscuit making machine 100-200 KN pressure

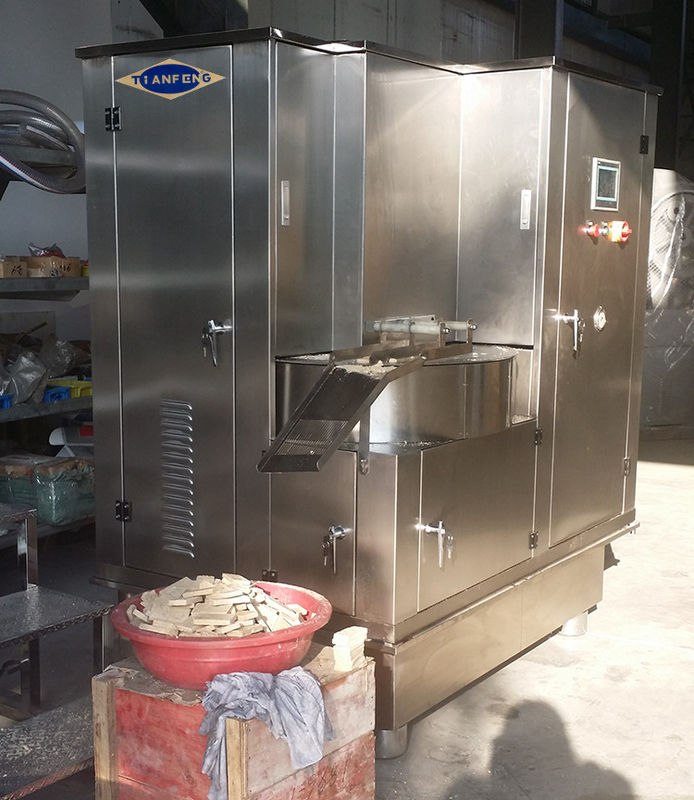

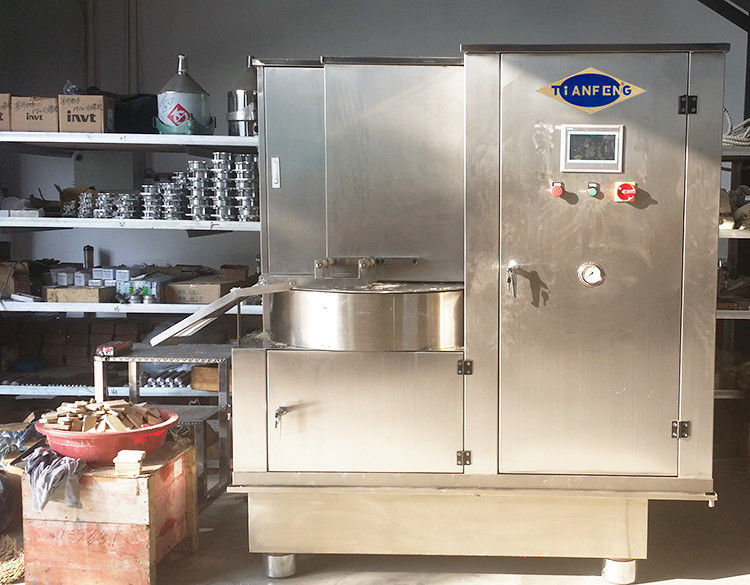

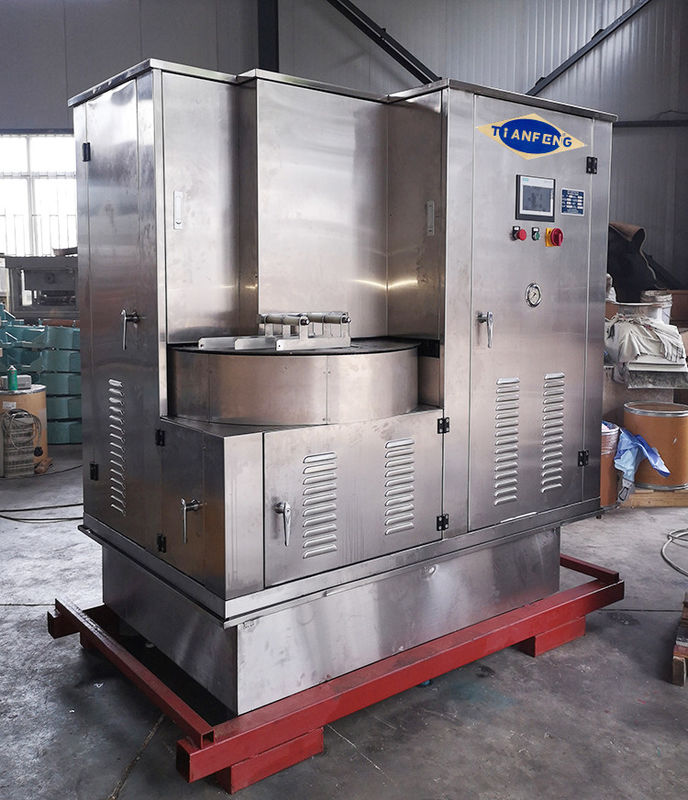

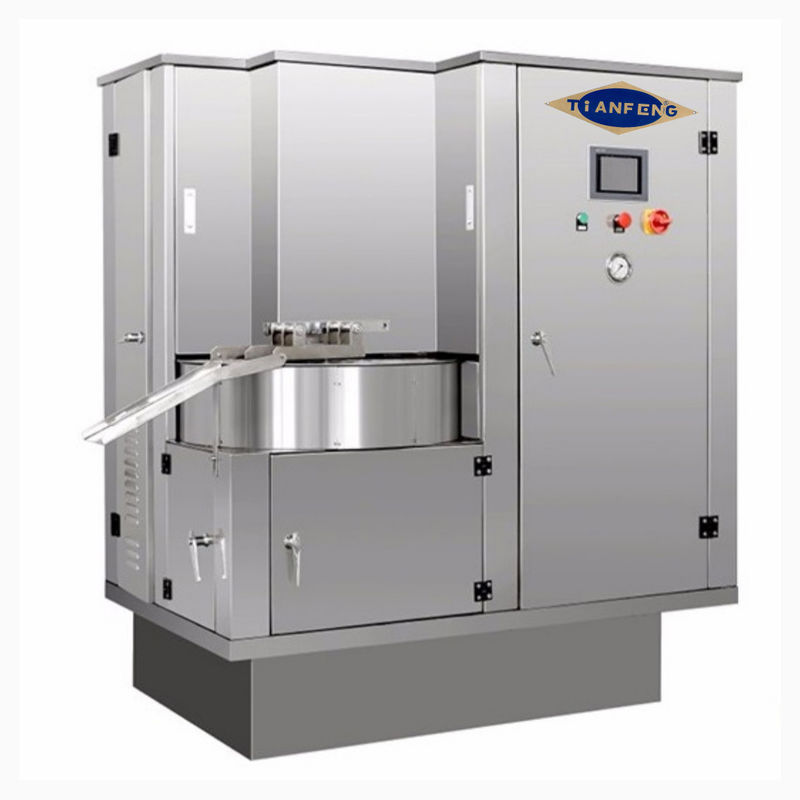

ZPW-4 Rotary Tablet Press
This rotary tablet press is a type of food machinery, which is used to produce compressed biscuits for military and civilian use. Compressed biscuit production involves five main processes, that is, biscuit baking, powderizing, mixing, compressing and packaging. The rotary tablet press plays an important role in making compressed biscuits.
This rotary tablet press is primarily composed of mechanical structure, hydraulic system, electric drive unit and electronic control unit. In addition, it is equipped with stainless steel hopper and other devices. Except material feeding, the machine performs other operations automatically. So, it can realize full automation if equipped with an automatic feeding device.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 3000 | 200 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW4-2 ZPW-4-4 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First ordinary mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
