Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPS8 ZPS10

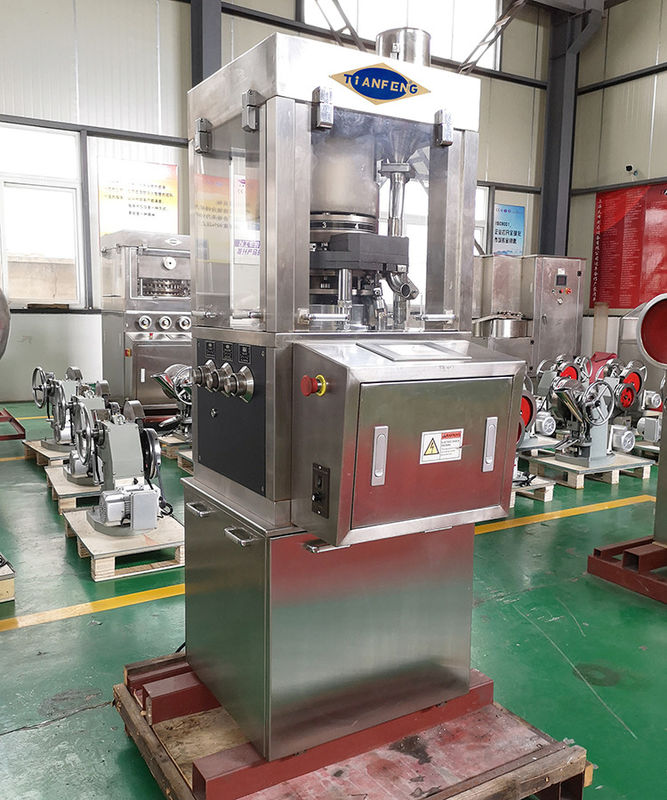

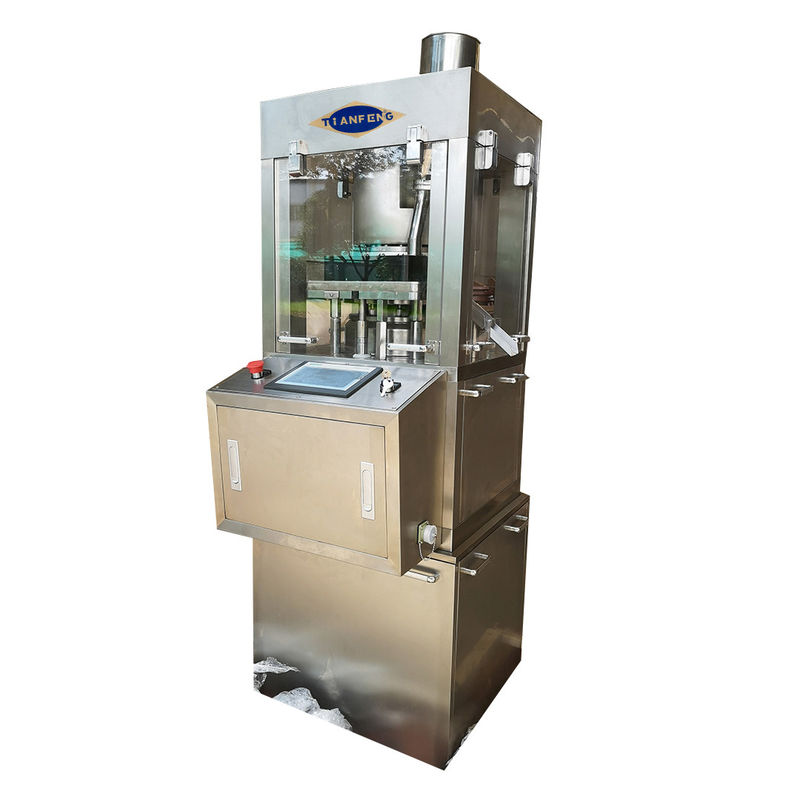

Rotary tablet press 10KN pre-pressure pill press with D tooling 14400 pieces/hour capacity for pharmacy lab
Main uses
This machine is an intelligent small rotary tablet press machine. It can apply to the R & D centers of pharmaceutical industry, laboratories and other small batch production of tablets.
It uses PLC control system; touch screen can display working turntable speed. It can set the system pressure, filling depth, pre-press, thickness and capacity of tablets, can display the working status of each punch in immediate working pressure, and can set the average pressure of dies. The impeller speed of forced feeder also can be displayed. It can display the contents of emergency stop, motor overload, system overpressure and other faults.
Characteristics
1. It is a single –sided press machine. Use IPT punch, can press granular raw materials into round tablet and a variety of special-shaped pieces.
2. There are two features, pre-pressure and main pressure that can improve the quality of the tablet.
3. Adopts PLC speed regulating device, convenient operation, safe and reliable.
4, PLC touch screen has a digital display, if connected with US ports, enabling tablet operating state data collection.
5. The main transmission structure is reasonable, good stability, long service life.
6. With a motor overload protection device, when the pressure overload, can shut down automatically. And have overpressure protection, emergency stop and strong exhaust cooling devices.
7. Stainless steel external casing is fully enclosed; all spare parts to be in contact with the materials are made of stainless steel or surface treated specially.

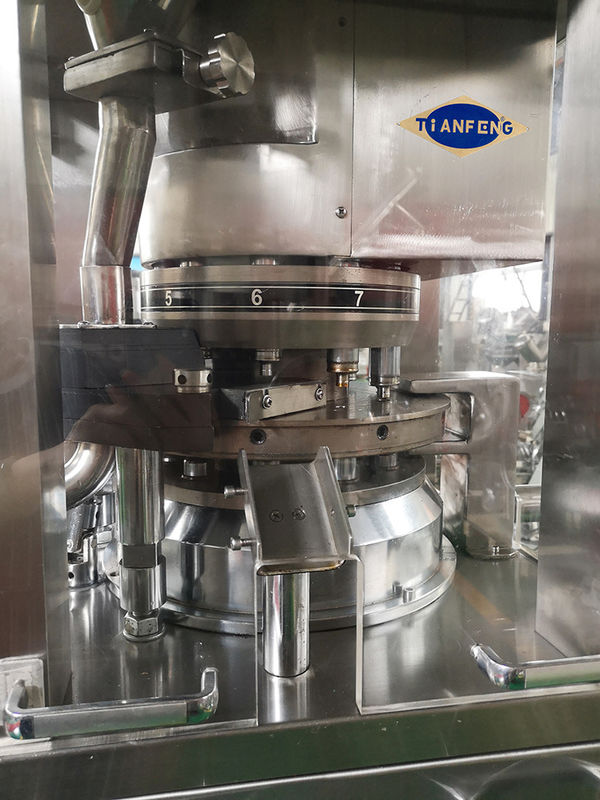

8. The compression area is enclosed with transparent organic glass, can fully open, easy to clean and maintain.
9. Optional forced feeder or ordinary feeder.
Technique Parameter
| Model | ZPS8 | ZPS10 |
| Dies (sets) | 8 | 10 |
| Type of Tooling | 1′D | 1′D |
| Max. Pressure (KN) | 60 | 60 |
| Max. Pre-Pressure(KN) | 10 | 10 |
| Max. Tablet Diameter (mm) | 22 | 22 |
| Max. Filling Depth (mm) | 17 | 17 |
| Max. Thickness of largest tablet (mm) | 6 | 6 |
| Max. Turret Speed(r/min) | 5-30 | 5-30 |
| Capacity (pcs/hour) | 14400 | 18000 |
| Motor Power (KW) | 2.2 | 2.2 |
| Overall dimensions (mm) | 750×660×1620 | |
| Net weigh t(kg) | 780 | |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special double layertablet press machine ZPW8 ZPW10 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3. Best service.
