Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31

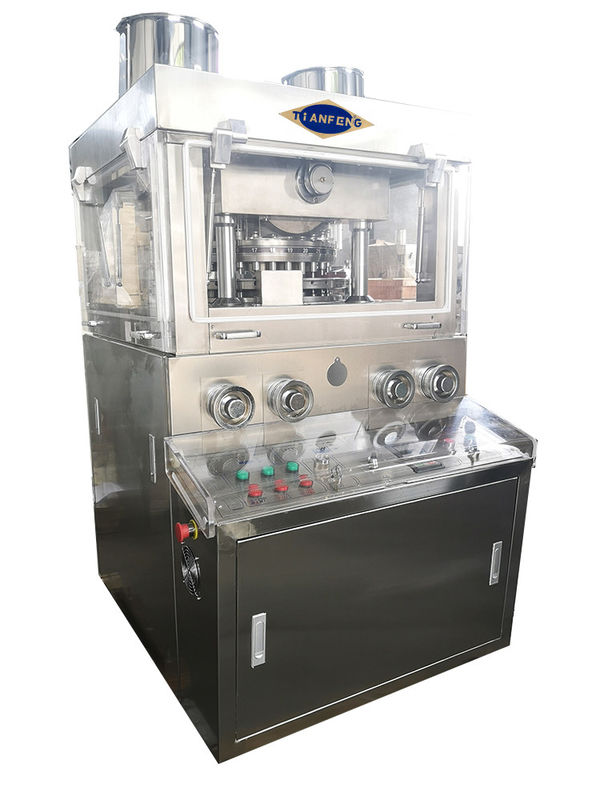

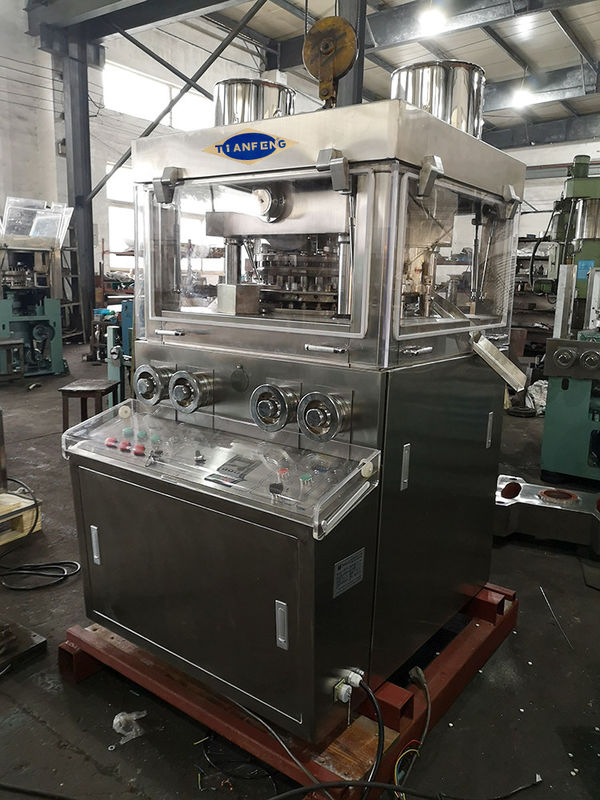

rotary tablet press machine 80KN pressure 125000pieces/hour maximum diameter 25mm ZPW29 ZPW31 for diameter 3-24 mm pills
ZPW29/31 Special Tablet Press Machine
Description
1 .ZPW29 pill press machine can press dry powder.
2. ZPW29 rotary tablet press is the double-sided rotary press machine. It could press double color and impress sign on both sides.
3 .This machines could press double layer tablet. It could press oval shape, oblong shape, round shape, and other special shape tablet, if the customer changes the different die and punches.
4. ZPW29 rotary tablet press is made of stainless steel. The machine meets GMP.
5. Equipped with Plexiglas perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
6. Frequency changing, speed regulating apparatus are used to regulate. The convenient operation and smooth rotation are safe.
7. Speed and thickness of the machine are adjustable.
8. Equipped with over-load protection apparatus. When overloaded with pressure, the machine will stop automatically.
9. ZPW29 rotary tablet press can be controlled by PLC, semi-automatically lubricating equipment, anti-dust cover on the upper of revolving table.
10. Transmitting system is sealed in the oil box under the main machine. It is a separate component, no pollution, easy heat dissipation, wear resistance.
11. Powder cleaner could absorb the powder in the piece-pressing room.
12. Easily-damaged components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
Technique Parameters of ZPW29 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) | 48000-125000 | 52000-135000 |
| Motor (KW) | 3 | 3 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW29 ZPW31 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
Q: How long is your delivery time?
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q: Why should you choose our tablet press and packing machine ?
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
Q: Can I visit your factory and send team for learning and inspect ?
A:Sure ! We will do our best to teaching you how to use the machine.
Q: Can you provide after-sale service ?
A:Certainly,.We have engineers available to service overseas.
Q: What is our advantages?
A: 1.Competitive price
2. Excellent technical support
3.Best service.
