Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP13A ZP15A ZP17A ZP19A ZP21A

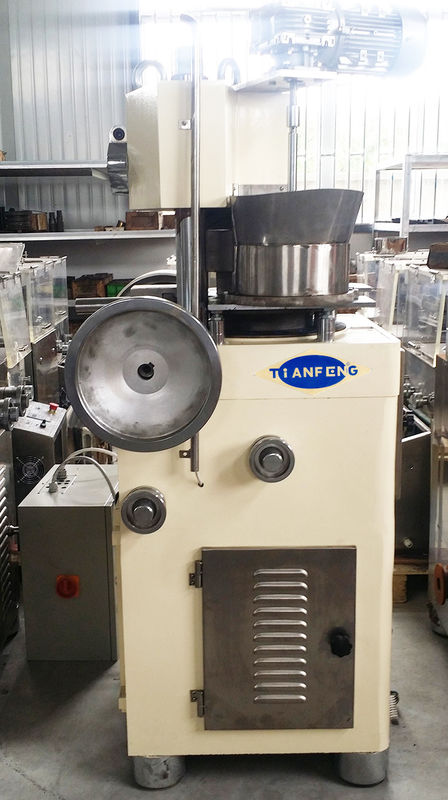

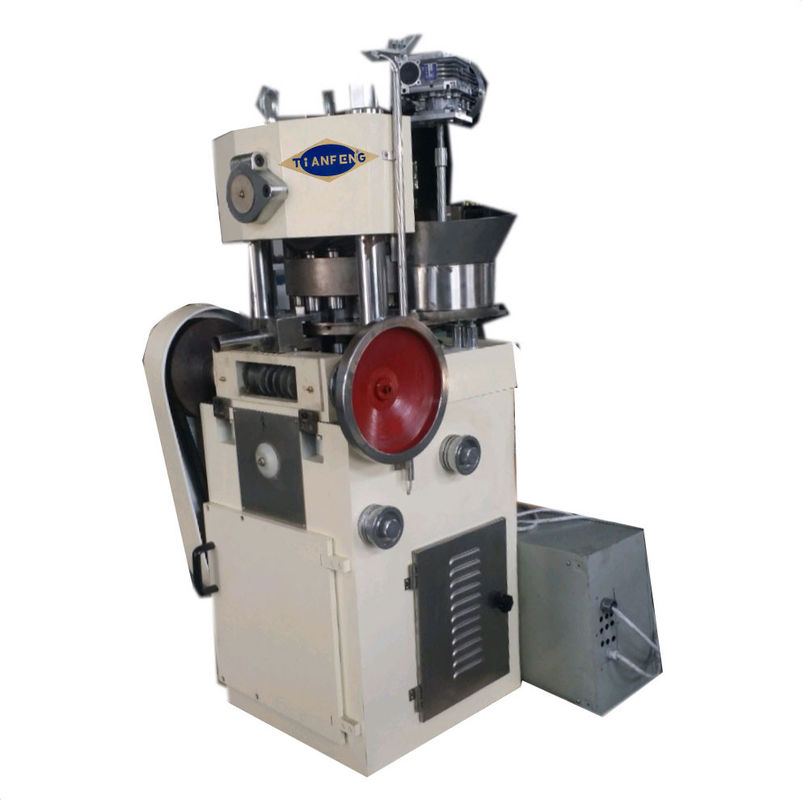

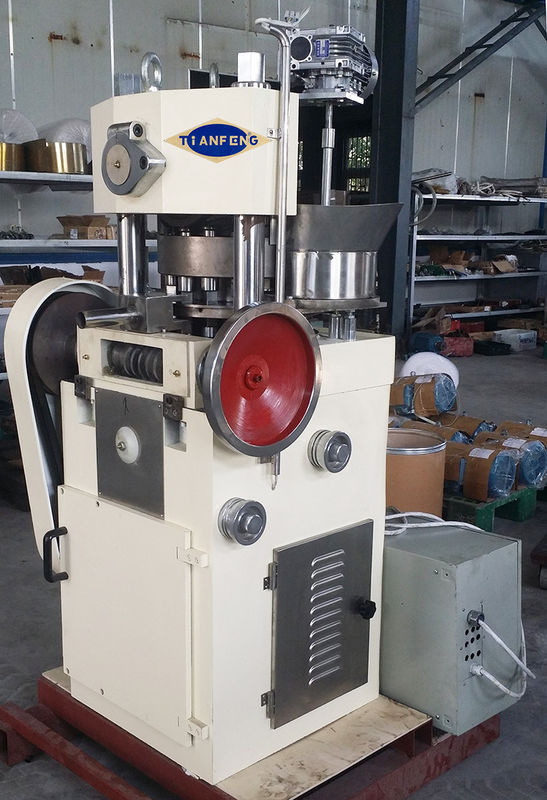

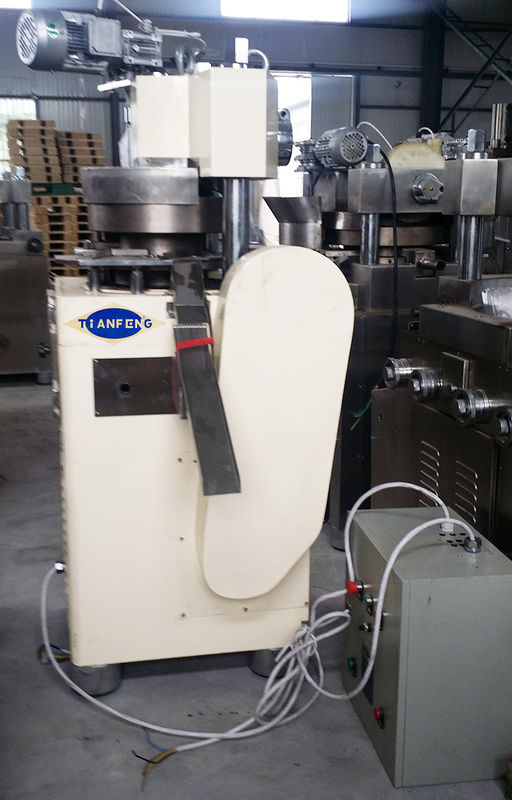

automatic rotary tablet press machine ZP13A ZP15A ZP17A ZP19A ZP21A 150KN pressure water color cube pill press
I. Application
1. The machine is a kind of automatic continuous rotary tablet press machine, a basic equipment for the industry of pharmacy, chemistry, food and so on to press all kinds of grain shape raw materials into tablets.
2. It is used to press various round tablets, sugarcoating tablets, calcium tablets and so on in large batches or a small batch of multiple types.
3. It is not suitable to press semisolid or wet powder grains.
II. Structural Features
During operation, the depth of the filling material and the thickness of the tablets can be adjusted. The pressure for tablet pressing is set by the hydraulic drive system and a pressure gauge is attached to the system to show the pressure value. A overload protection unit is included in the system to avoid the damage of the punches and apparatus when overload occurs. The machine stops automatically.
New type ZPW15A and ZPW15B is designed to meet the CE standard. ZPW15B is an improved version of ZPW15A. Its pressing area is sealed with four polymath methacrylate doors to be isolated with outside environment. The material contact parts are t made of stainless steel and their surface is specially antisepticised to avoid pollution.
III. Technological Performance
| Dies (sets) | 15 |
| Max. Pressure (KN) | 150 |
| Max. dia. of tablet (mm) | 45 |
| Max. Depth of fill (mm) | 18-25 |
| Max. Thickness of largest table (mm) | 8-15 |
| Turret speed (r/min) | 10-25 |
| Length of up punch pole (mm) | 175 |
| Length of down punch pole (mm) | 180 |
| Production capacity (pcs/h) | 9000-23000 |
| Motor power (KW) | 7.5kw |
| Overall size (mm) | 900×800×1640 |
| Weight (KG) | 1500 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZP13A ZP15A ZP17A ZP19A ZP21A by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
