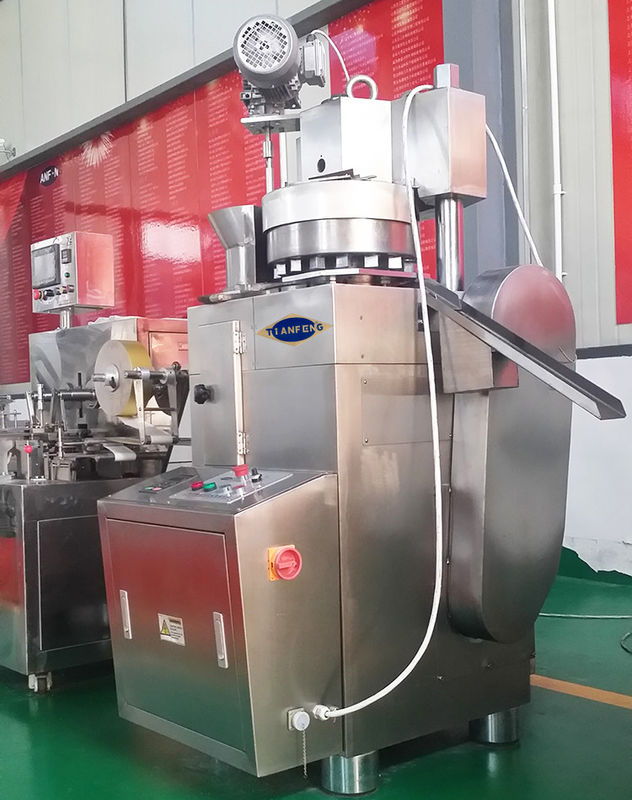

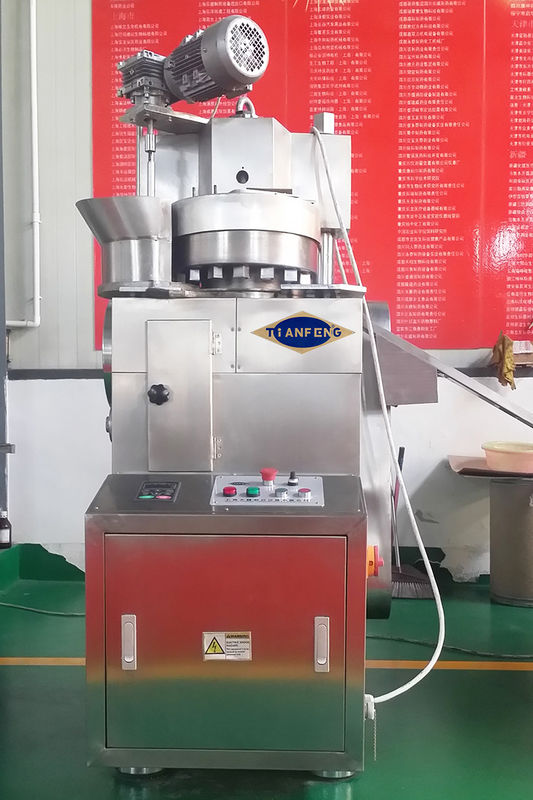

Tablet compression machine ZP17B Zp19B 25mm 30mm salt cube making machine 120KN 22500 pieces/hour
I. Main Uses
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G.M.P requirement
2. It has transparent windows so that press condition can be observed clearly and the Windows can be opened. Cleaning and maintenance is easier
3. The machine can press not only round tablets but also different geometrical shape tablets, double-layer and annular tablets, and the tablets may have the impressed letters on both sides
4. All the controller and devices are located in one side of the machine, so that it can be easier to operate
5. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long
service-life, preventing cross pollution.
Technical Parameters of ZP17B Rotary Tablet Press Machine
| Dies (sets) | 17 |
| Max. Pressure (KN) | 120 |
| Max. dia. of tablet (mm) | 40 |
| Max. Depth of fill (mm) | 18-25 |
| Max. Thickness of largest table (mm) | 8-15 |
| Turret speed (r/min) | 10-25 |
| Length of up and down punch pole (mm) | 42 |
| Length of up punch pole (mm) | 175 |
| Length of down punch pole (mm) | 180 |
| Diameter of middle mould (mm) | 52 |
| Production capacity (pcs/h) | 11400-25500 |
| Motor power (KW) | 7.5kw or 5.5kw |
| Overall size (mm) | 900×800×1640 |
| Weight (KG) | 1500 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZP13B ZP15B ZP17B ZP19B ZP21B by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold punch die set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
