Place of Origin:
shanghai,china
Brand Name:
shanghai tianfeng
Certification:
CE SGS
Model Number:
ZPW15 17 19D
mini lab medicine automatic ZPW15 19D Rotary tablet pill press machine with factory price CE certificate made in china
ZPW15/17/19D Rotary tablet press machine
Main Purpose:
The machine is designed and manufactured in accordance with GMP.used to make grnular raw materials into powder. The most prominent advantage of this tablet press is that it is fully closed to prevent dust and pollution.In addition to making round tablets. it can also make special shaped tablets.During the operation,the noise is low and the pressure is high,and the machine will stop in case of overpressure to avoid damage to it.
Working Principle:
The transparent protective covers enable the machine operation status to be clearly observed.In addition,they can be opened to make cleaning and maintenance easy.
Stepless speed adjustment is adopted to freely control the rotation speed.
Tablet pressing pressure can be selected according to the need,and the pressure can be displayed on the pressure gauge.
It can make special-shaped tablets after mounted with balancing bar with key.
It is provided with the track and pressing wheel for making double-layer tablets and ring-shaped tablets.
Trial running and adjustment work can be completed without stopping the machine.
The parts inside the chamber contacting materials are made of stainless steel or subject to special anticorrosive treatment.
Main Parameter:
| Model | ZPW15D | ZPW17D | ZPW19D |
| Punch Quantity(sets) | 15 | 17 | 19 |
| Max.tablet pressure(kn) | 60 | 60 | 60 |
| Max.tablet diameter(mm) | 22 | 20 | 13 |
| Max.filling depth(mm) | 15 | 15 | 15 |
| Max.tablet thickness(mm) | 6 | 6 | 6 |
| Turret rotation speed(r/min) | 37 | 37 | 37 |
| Production capacity(pcs/h) | 35000 | 40000 | 42000 |
| Motor Power(kw) | 2.2 | 2.2 | 2.2 |
| Overall Size(mm) | 615*890*1415 | 615*890*1415 | 615*890*1415 |
| Machine Weight(kg) | 700 | 700 | 700 |
| Hs Code | 8474802000 | 8474802000 | 8474502000 |

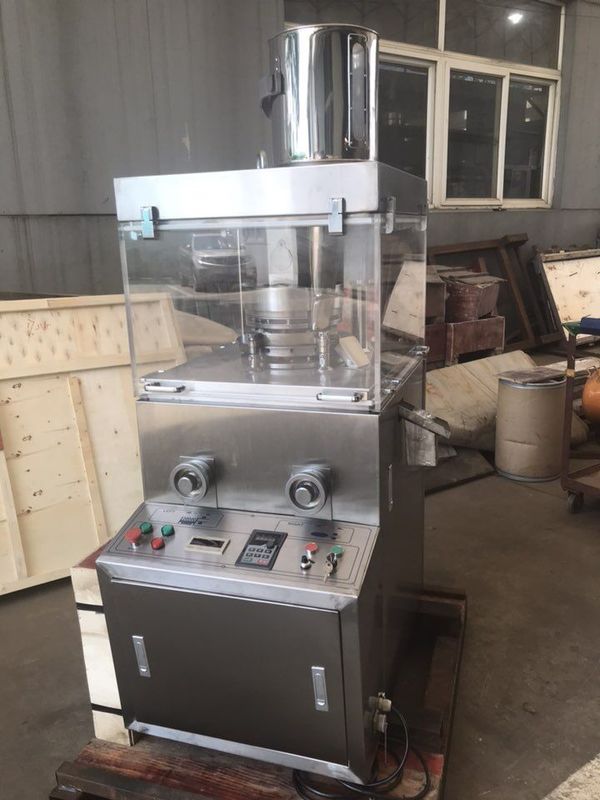

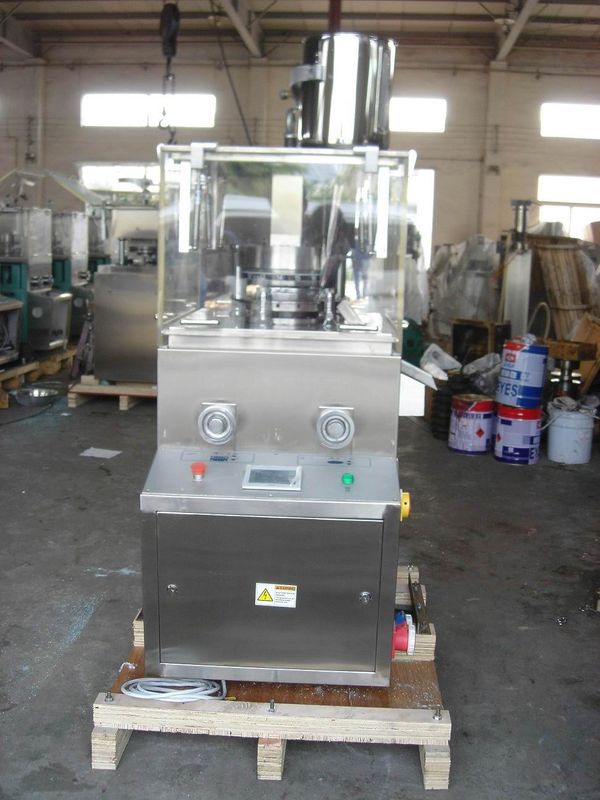

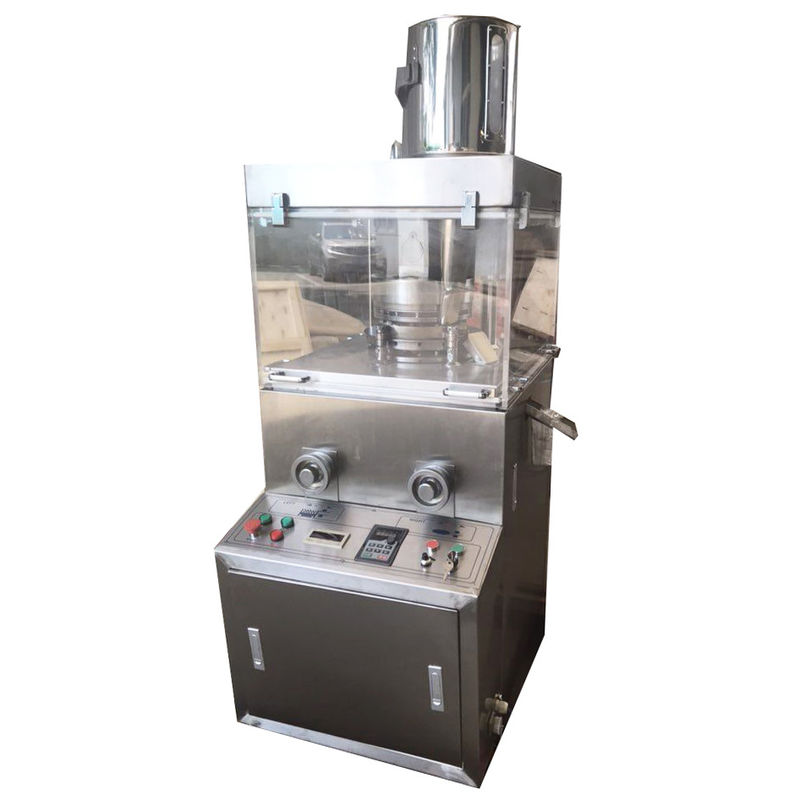

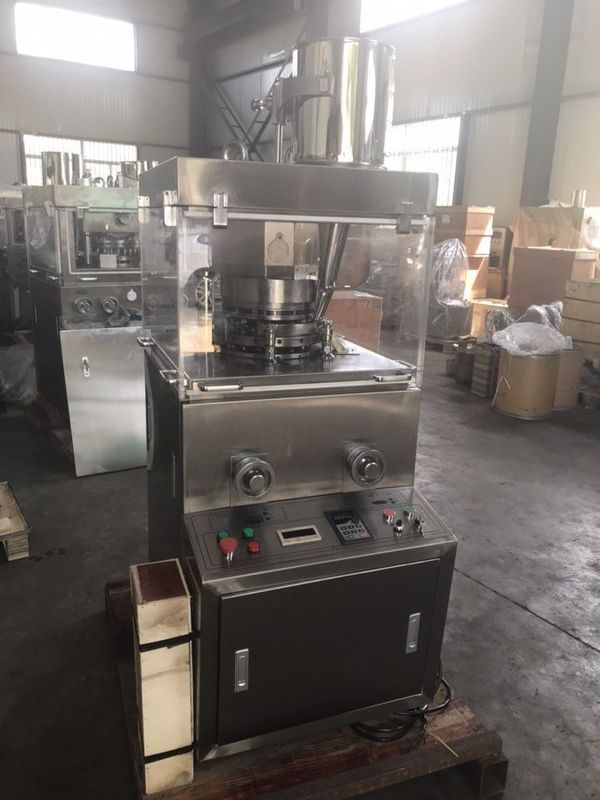

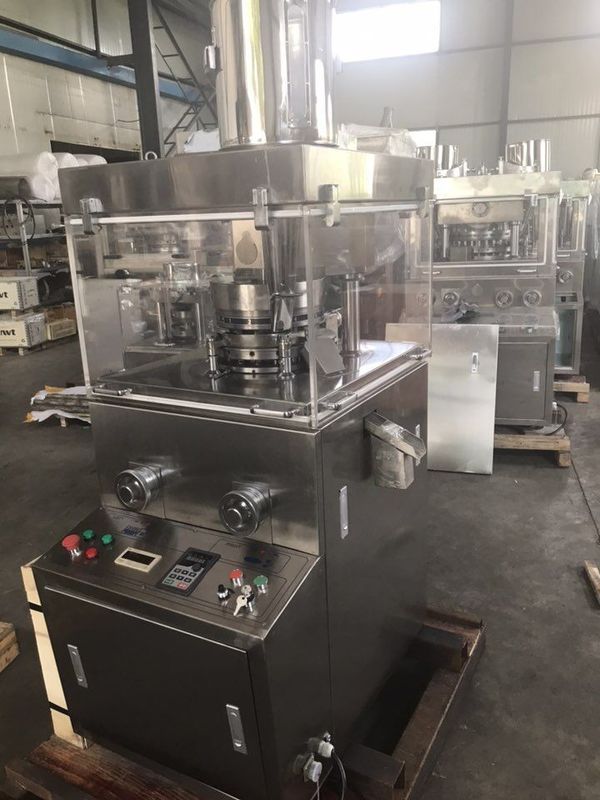

Machine Picture:
Our Office:
Our Show Room:
Machine Fair and Clients:
Certificate:
We have worker to make the packing box by ourselves:
