Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
NZ300 NZ600

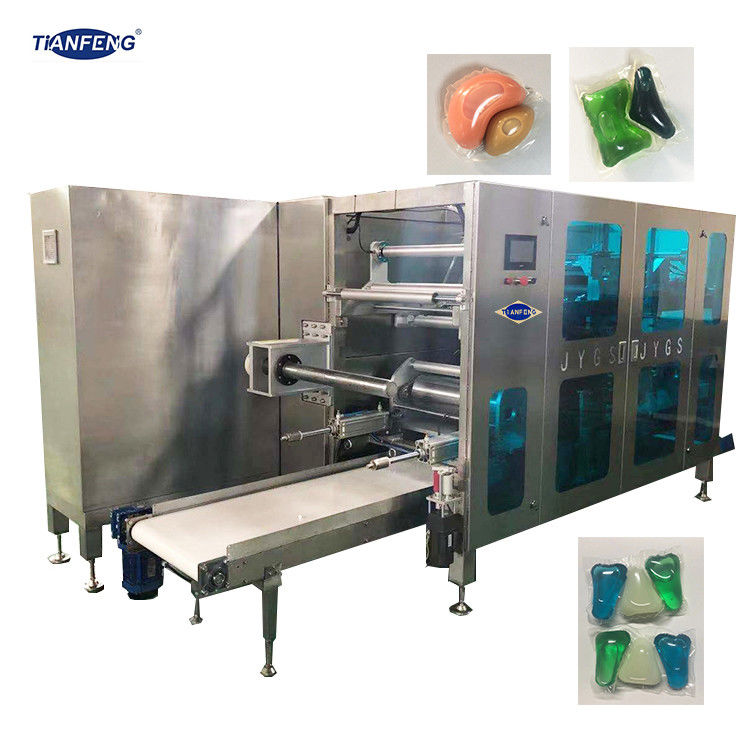

steel durable automatic PVA laundry pods packaging machine for liquid power and cube pod packing
| Item | Remarks | ||
| Model | NZ300 | NZ600 | |
| Capacity | 300-500 pcs/min | 800-1000 pcs/min | |
| Filling accuracy | ≤+/-0.2% | ≤+/-0.2% | |
| Voltage | 380v Three-phase five wire | 380v Three-phase five wire | |
| Power | 32KW | 42KW | Maximum starting peak |
| Environmental temperature |
25-30 centidegree
|
25-30 centidegree |
perennial average maintaining
|
|
Ambient humidity
|
38% | 38% | perennial average maintaining |
| Noise | 30-45db | ||
| Dimension | 2825*2000*2200mm | 4500*2050*2300mm | |
| Weight | 2.8 Tons | 4.5 Tons |
Film releasing part: This part is composed of (the left side is for the bottom film and the right side is for the covering film) 2 sets of pneumatic core shaft partly in the left and right (one set in the right and left starts to work firstly. When the first volume of film is about to use up , the second set of film continues), in addition to electrical discharging device, rectifying system, pressure sensor.
Film heating part: Heat the left bottom film to 45-50 degrees, which makes the film more easily to be stretched in the mold.
Spread water evenly on covering film as adhesive to press the bottom film and covering film in a firm bond due to the film soluble in water.
Filling part: It consists of filling pump and filling head which are produced by our self R&D.
Main mould part: divide a cylinder mould into 36 equal parts in circle and 10 equal parts in width. And the diameter of the cylinder is 600mm and the width is 500mm.Then we process 360 laundry liquid pod moulds on the cylinder and fit 36 sets of vacuum solenoid valve on it.
Pressing film part: the right film is covered on the main mould which has the left film as bottom film stretched and filled liquid material though filling pump. The cover film is firmly bonded with the bottom film, the liquid material is not leaked.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped High capacity PVA PVOH laundry detergent pods packing machine water soluble laundry capsules making machine by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
