Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
NZ300

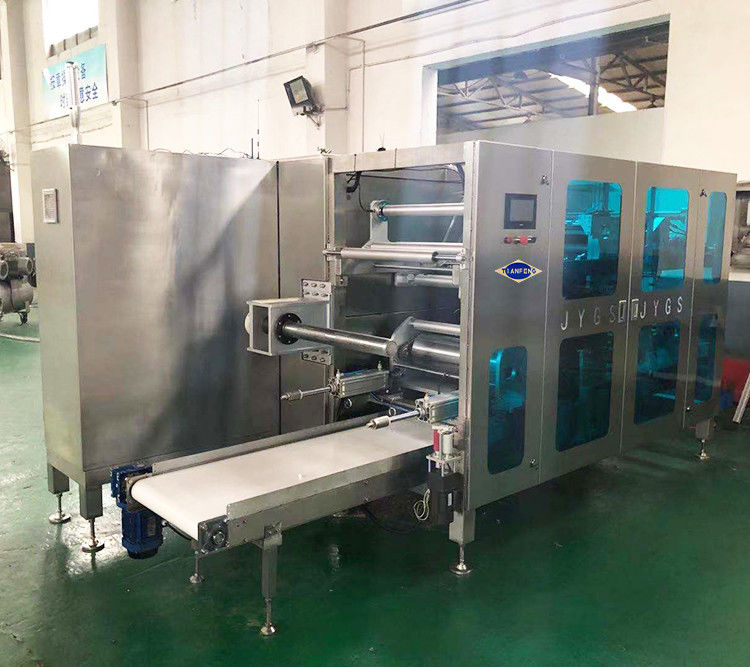

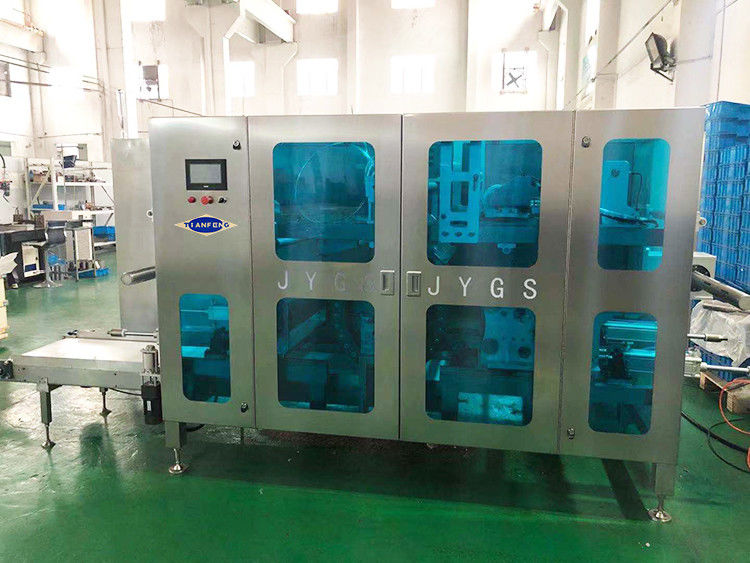

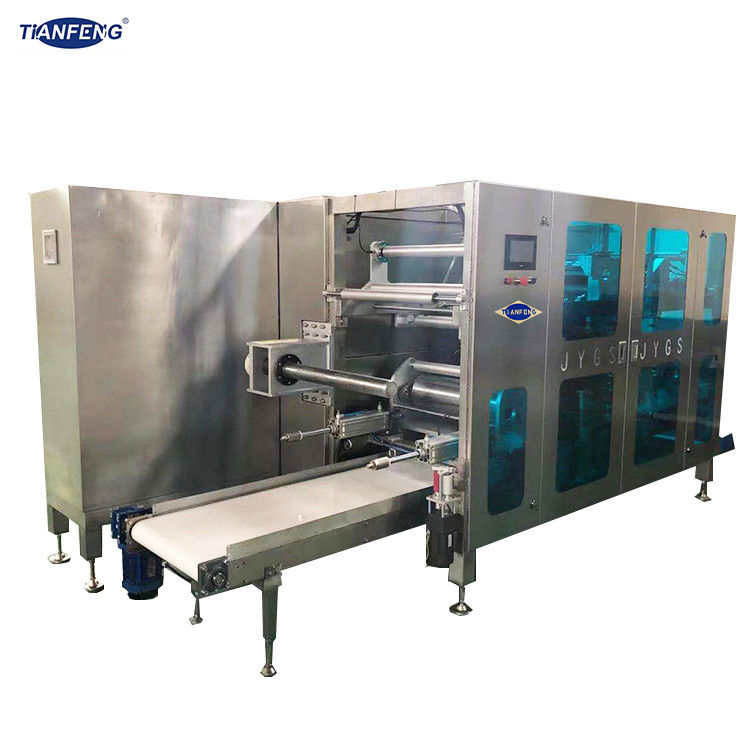

Unique PVA water soluble film liquid detergent pod powder detergent pod making washing tablet pva film packing machine
Film releasing part: This part is composed of (the left side is for the bottom film and the right side is for the covering film) 2 sets of pneumatic core shaft partly in the left and right (one set in the right and left starts to work firstly. When the first volume of film is about to use up , the second set of film continues), in addition to electrical discharging device, rectifying system, pressure sensor.
Film heating part: Heat the left bottom film to 45-50 degrees, which makes the film more easily to be stretched in the mold.
Spread water evenly on covering film as adhesive to press the bottom film and covering film in a firm bond due to the film soluble in water.
Filling part: It consists of filling pump and filling head which are produced by our self R&D.

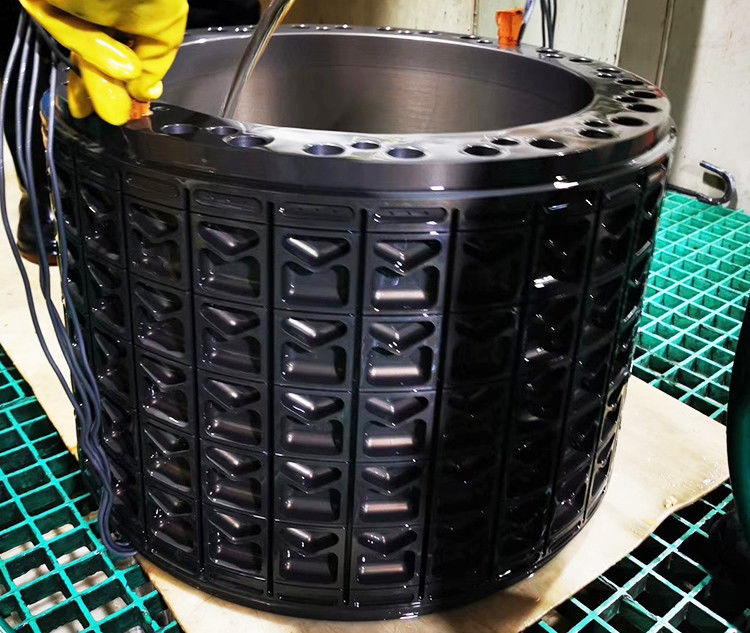

Main mould part: divide a cylinder mould into 36 equal parts in circle and 10 equal parts in width. And the diameter of the cylinder is 600mm and the width is 500mm.Then we process 360 laundry liquid pod moulds on the cylinder and fit 36 sets of vacuum solenoid valve on it.
Pressing film part: the right film is covered on the main mould which has the left film as bottom film stretched and filled liquid material though filling pump. The cover film is firmly bonded with the bottom film, the liquid material is not leaked.
| Item | Remarks | ||
| Model | NZ300 | NZ600 | |
| Capacity | 300-500 pcs/min | 800-1000 pcs/min | |
| Filling accuracy | ≤+/-0.2% | ≤+/-0.2% | |
| Voltage | 380v Three-phase five wire | 380v Three-phase five wire | |
| Power | 32KW | 42KW | Maximum starting peak |
| Environmental temperature |
25-30 centidegree
|
25-30 centidegree |
perennial average maintaining
|
|
Ambient humidity
|
38% | 38% | perennial average maintaining |
| Noise | 30-45db | ||
| Dimension | 2825*2000*2200mm | 4500*2050*2300mm | |
| Weight | 2.8 Tons | 4.5 Tons |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped High capacity PVA PVOH laundry detergent pods packing machine water soluble laundry capsules making machine by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
