Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
DPB80
Video

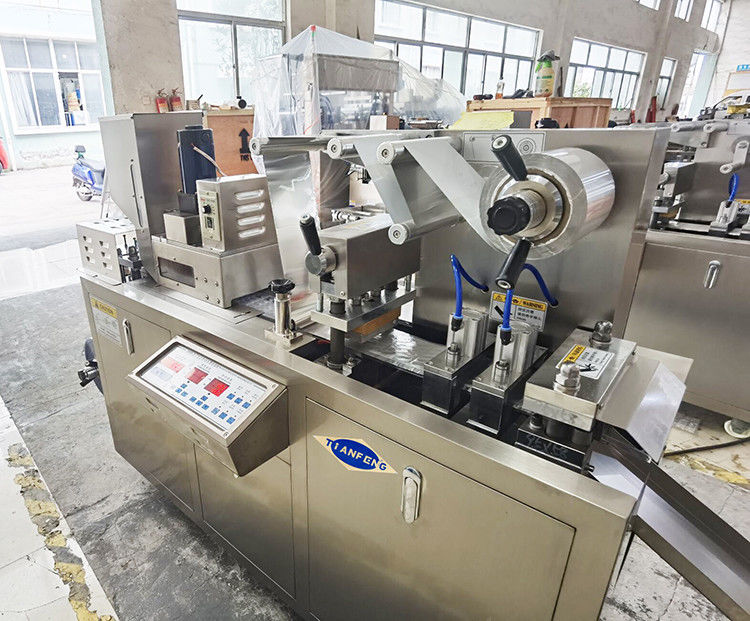

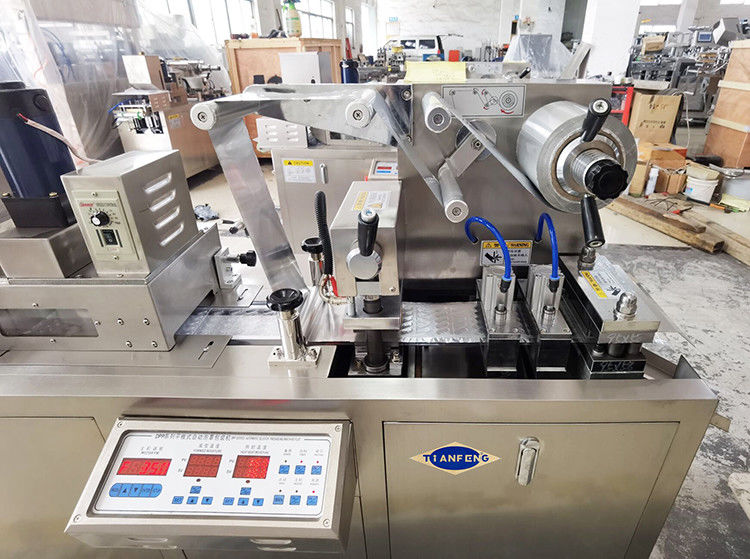

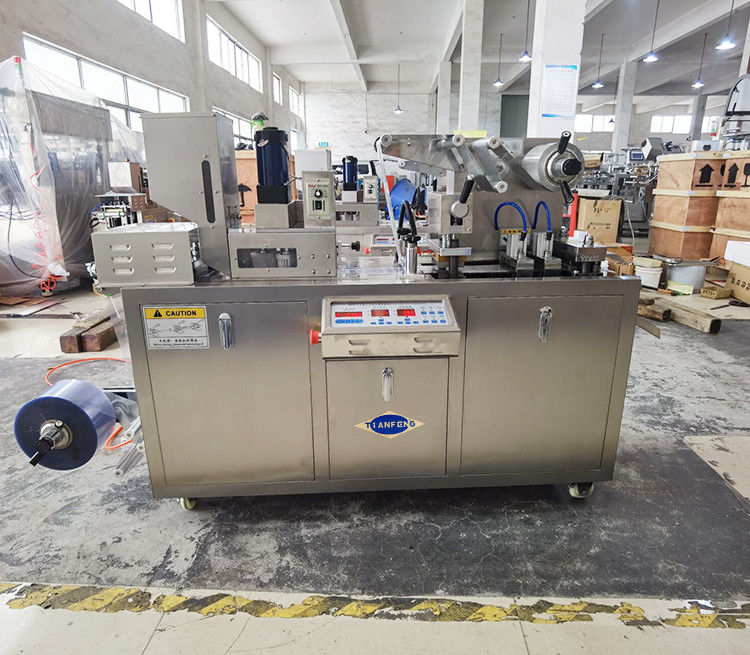

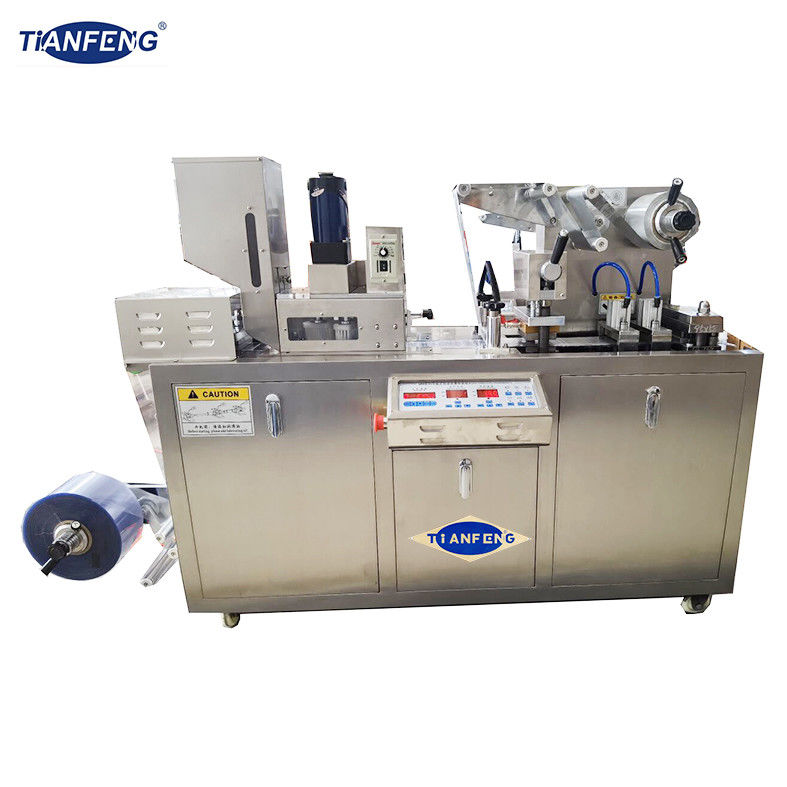

DPB80 Flat-plate Automatic Blister Packing Machine 10-40 plates per minute 220V/110V
Since the company was founded, we specialize in the production of DPP-80 automatic aluminum-plastic packaging machine series. The function has reached at the leading level in China.
Implementation of Al-plastic composites sealed package, with the extended period to maintain and beautify the advantages of goods and reduce the cost of packaging.
It is an ideal packaging equipment for the purification plant and the hospital reagents room because the machine is small area, low investment, the use of multi-function, high efficiency, non-polluting, low noise and so on.
Function and characteristic
1. Adopt the high-power transmission of the domestic latest model, and spread to move the stalk from the row chain to remove other gear transmission error and noise.
2. Imports of used electrical control systems, customers can request configuration shut fill leakage detection and missing tablets removed devices (Omron sensors). Used imports Frequency Converter.
3. Unit stages portfolio: PVC shape, feed, heat sealing as a tropical aluminum cold forming, heat sealing, punching a section of the body for hours packaging.
4. Photoelectric control systems, PVC, PTP, tropical aluminum packaging automatic feed, scrap automatic admission Device, to ensure the long-synchronous multi-position stability.
5. Additionally photoelectric detector may calibration device; service imports stepper motor drive, the transmission version printing and packaging, optimize packaging grades.
6. The machine applies: capsules, tablets, sugar-coated, capsules, injections, and other special-shaped medical device, light industry and food, electronic components sealed blister packaging.
Main technical parameters:
| Punching frequency: 10-40times/min 1Plate/time | |
| General plate: 57×80MM 1Plate/time | Reference specifications: 27×80MM 1Plate/time |
| Max. forming area: 60×100MM | 60×100MM 1Plate/time |
| The standard scope 30-70MM | In accordance with the requirements of users |
| Yield>98% | Electrical power: 0.37KW |
| Forming heating power:1.8KW | Heating power: 1.8KW |
| Heat sealing heating power: 0.8KW |
Mercury Air Volume >0.3CM(own) |
| Cooling: circulating water or tap water | Weight: 300kg |
| Size: 1500×600×1200(L×W×H) | |
|
Packaging materials specifications: Medicinal PVC0.3×80MM Aluminum foil 0.023×80MM |
|
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped DPB80 Flat-plate Automatic Blister Packing Machine by sea.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
