Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
DPB80
Video

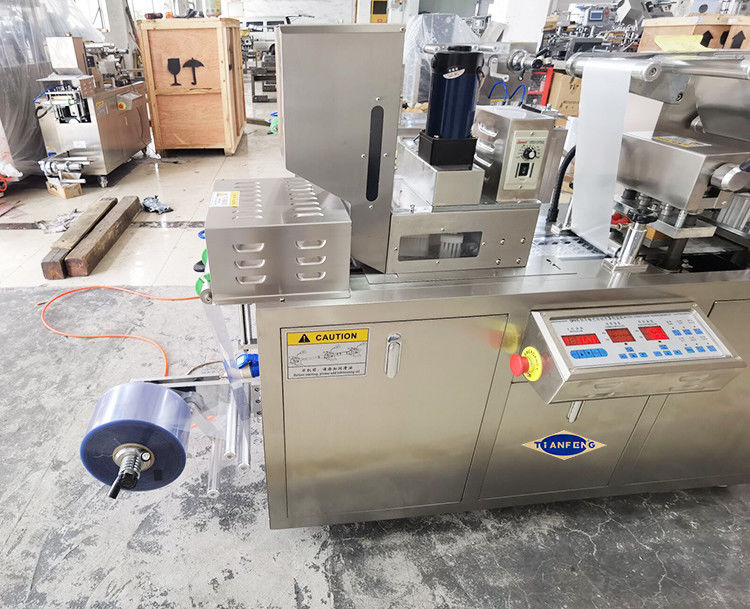

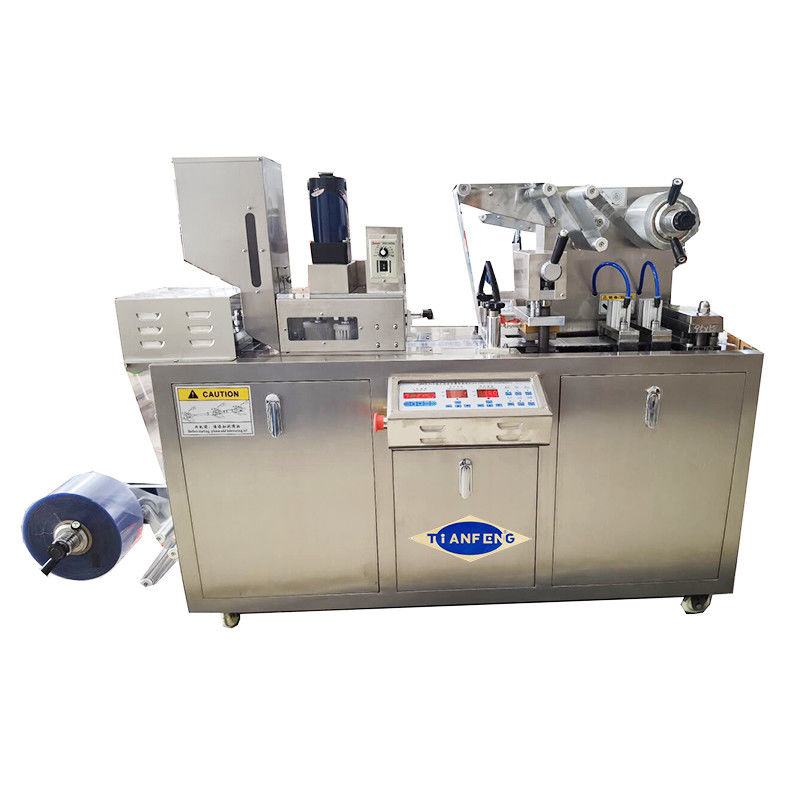

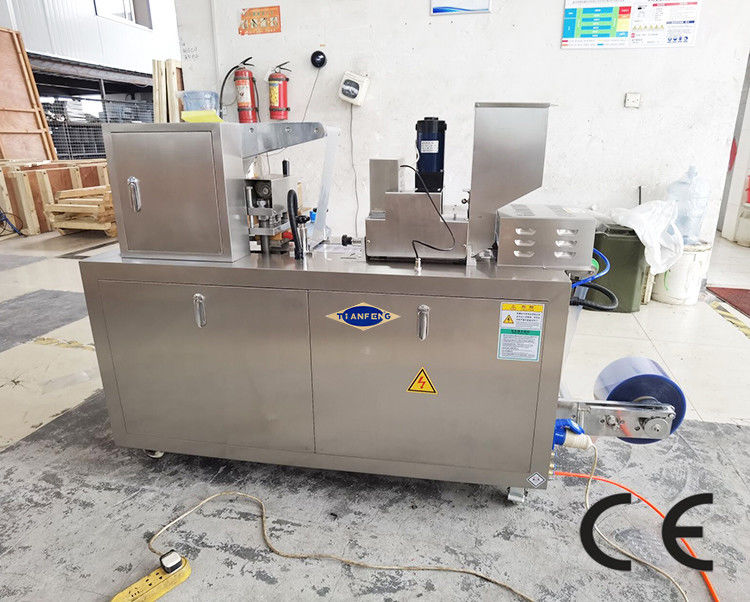

DPP80 Plate-type Al-plastic foam Packing machine Automatic plastic Blister Machine for tablet, capsule packing
Main technical parameters:
| Punching frequency: 10-40times/min 1Plate/time | |
| General plate: 57×80MM 1Plate/time | Reference specifications: 27×80MM 1Plate/time |
| Max. forming area: 60×100MM | 60×100MM 1Plate/time |
| The standard scope 30-70MM | In accordance with the requirements of users |
| Yield>98% | Electrical power: 0.37KW |
| Forming heating power:1.8KW | Heating power: 1.8KW |
| Heat sealing heating power: 0.8KW |
Mercury Air Volume >0.3CM(own) |
| Cooling: circulating water or tap water | Weight: 300kg |
| Size: 1500×600×1200(L×W×H) | |
|
Packaging materials specifications: Medicinal PVC0.3×80MM Aluminum foil 0.023×80MM |
|
Function and characteristic
1. Adopt the high-power transmission of the domestic latest model, and spread to move the stalk from the row chain to remove other gear transmission error and noise.
2. Imports of used electrical control systems, customers can request configuration shut fill leakage detection and missing tablets removed devices (Omron sensors). Used imports Frequency Converter.
3. Unit stages portfolio: PVC shape, feed, heat sealing as a tropical aluminum cold forming, heat sealing, punching a section of the body for hours packaging.
4. Photoelectric control systems, PVC, PTP, tropical aluminum packaging automatic feed, scrap automatic admission Device, to ensure the long-synchronous multi-position stability.
5. Additionally photoelectric detector may calibration device; service imports stepper motor drive, the transmission version printing and packaging, optimize packaging grades.
6. The machine applies: capsules, tablets, sugar-coated, capsules, injections, and other special-shaped medical device, light industry and food, electronic components sealed blister packaging.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped DPB80 Flat-plate Automatic Blister Packing Machine by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
