Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
YK160
Products catalogues, can download here
Shanghai Tianfeng products catalogues.pdf

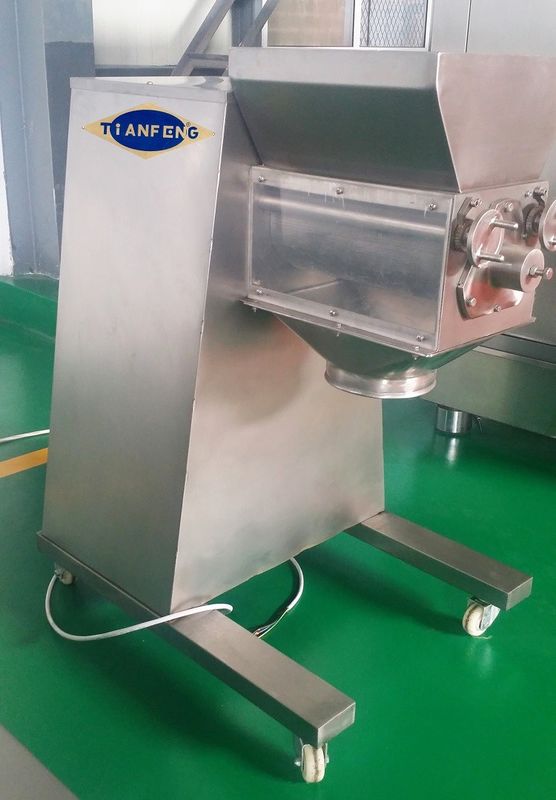

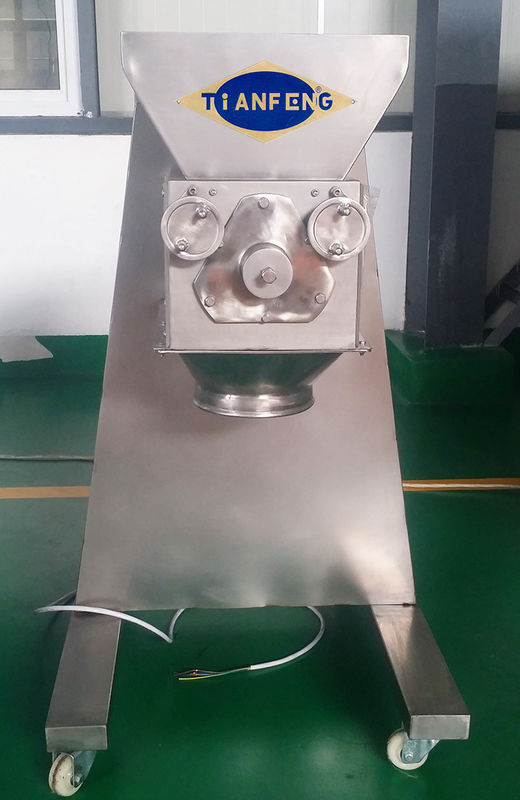

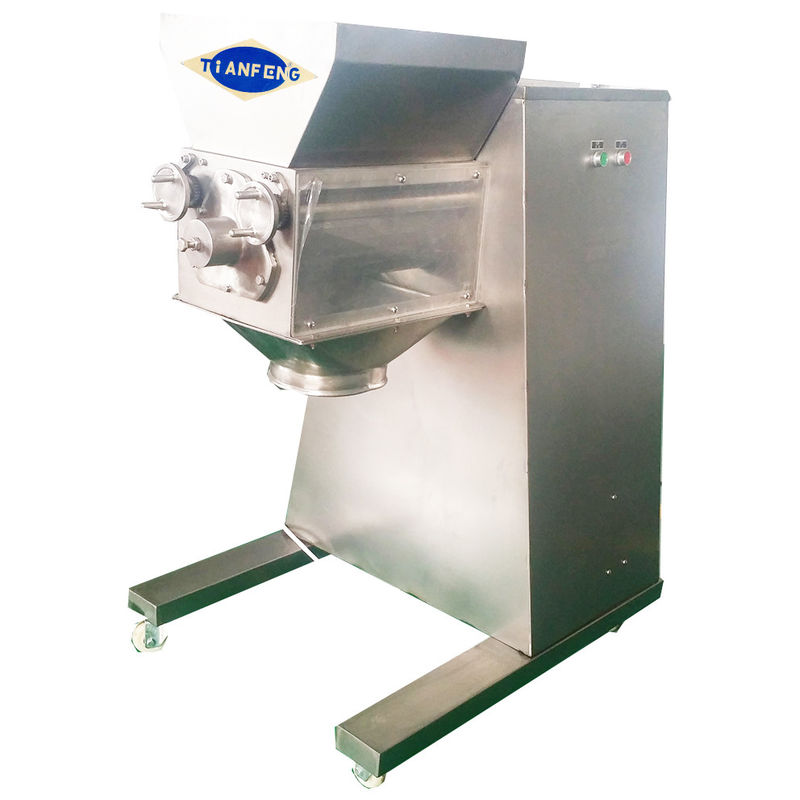

YK160 vibrating Oscillating granulator 200-300kg/hour 2.2KW for pharmaceutical powder

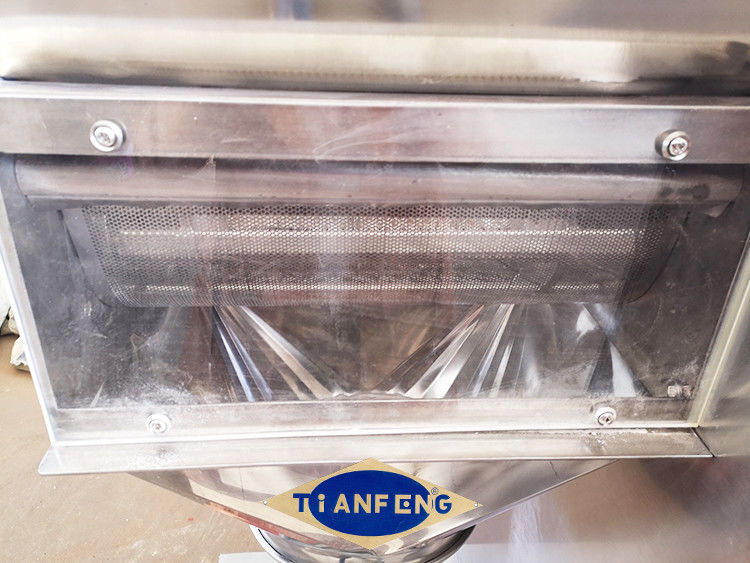

Oscillating granulator can be used for wet and dry granulation process. Adjustment, cleaning and operation are simple. Sturdy, durable, good productivity. The speed of the roller can be adjusted. All parts of our oscillating granulator are made of stainless steel. Our Oscillating granulator meets the GMP standard, plays an important part in the process of granulation in tablet making. The screen made of metal or stainless steel ensures high outputs and the quality of granules.
Powder mixer and granulation machine can be called as power press machine or medical press machine, they are used for mixing powder, making preparation for forming tablets or pills.
Technical parameter
| Model | YK60 | YK90 | YK160 |
| Roller Dia. (mm) | 60 | 90 | 160 |
| Capacity (kg/h) | 20-30 | 50-100 | 200-300 |
| Oscillation angle | >360 | >360 | >360 |
| Oscillation frequency (times/minute) | 46 | 50 | 55 |
| Motor power (KW) | 0.25 | 0.55 | 2.2 |
| Weight (kg) | 55 | 150 | 330 |
| Overall size (mm) | 460*550*570 | 750*460*840 | 970*560*1240 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped solid preparation auxiliary equipment stainless steel YK160 granulator by sea
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
