Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
GHL10 GHL50 GHL100 GHL200 GHL300

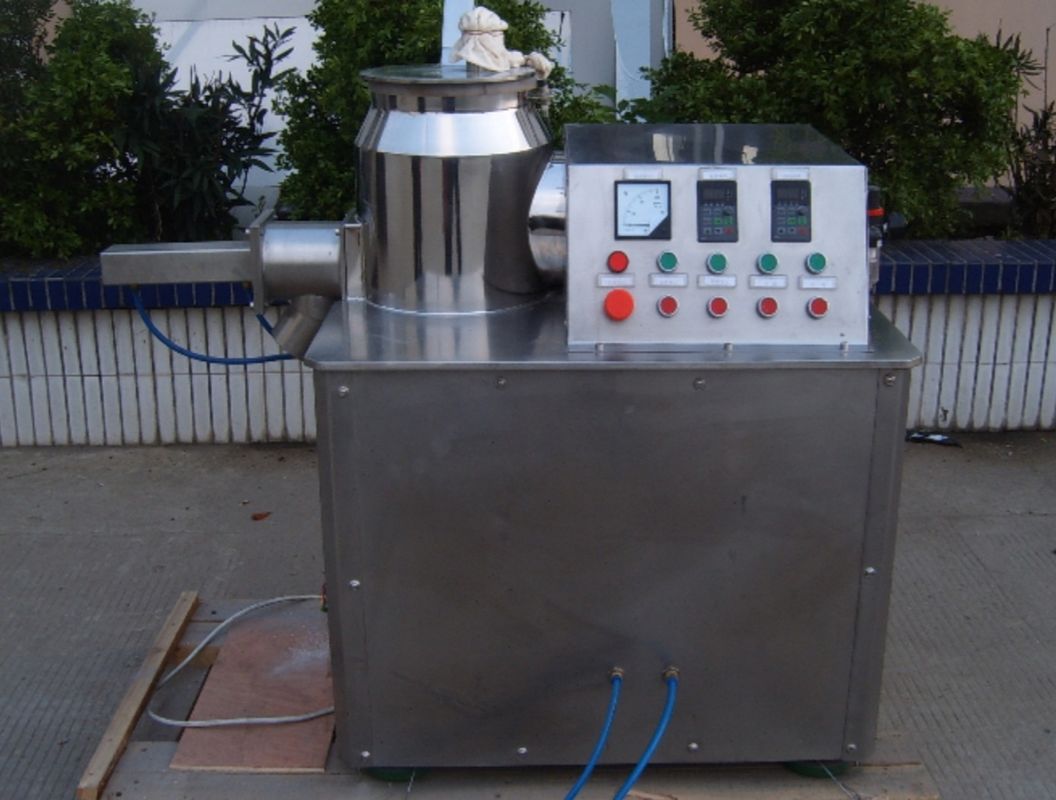

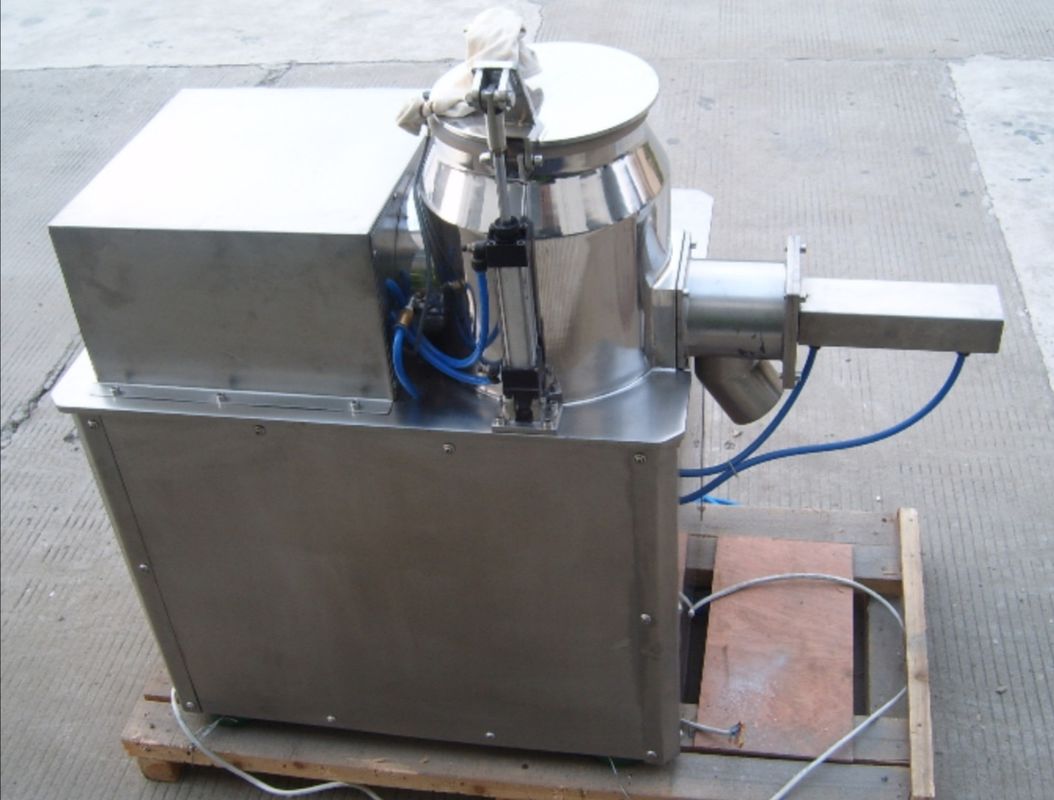

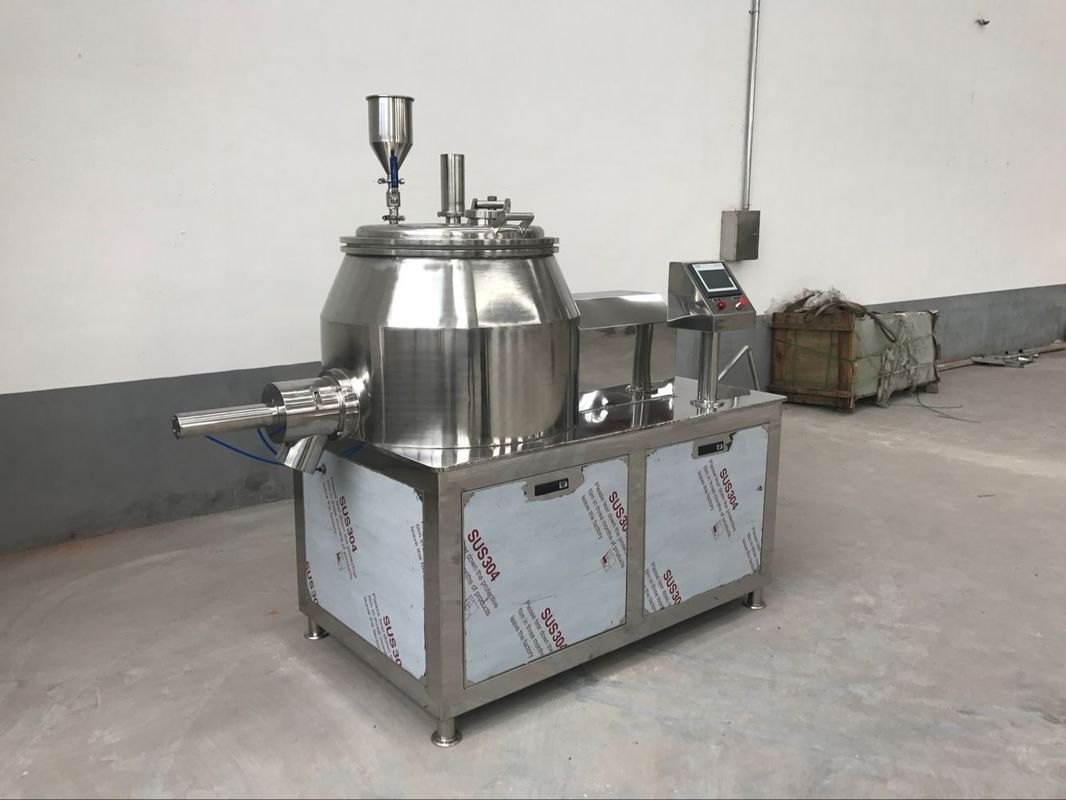

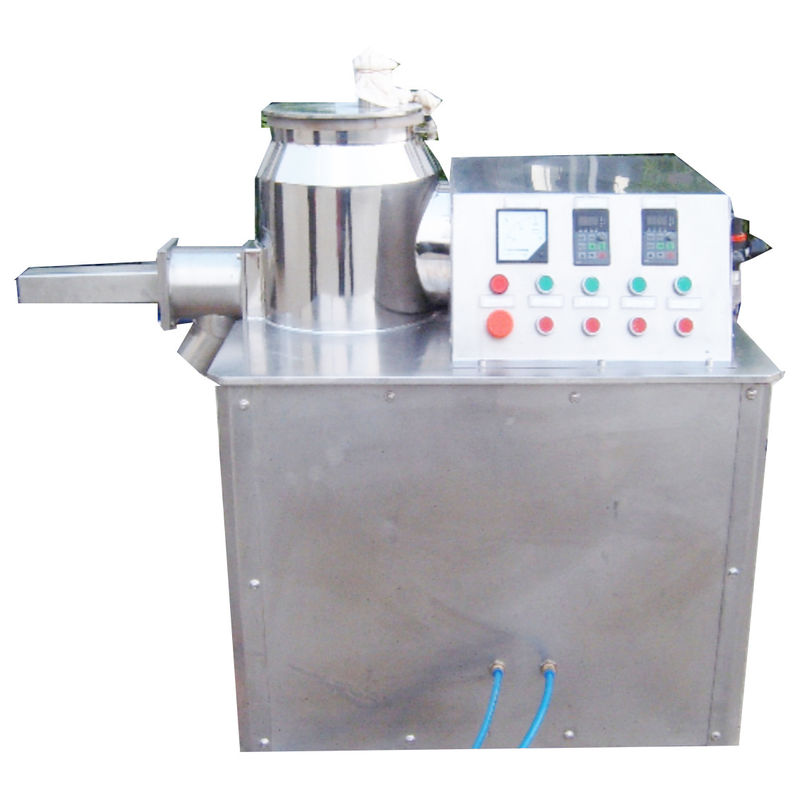

high rapid Wet Mixer Granulator GHL series with 10-300 kg/batch capacity Double Speed Motor 304 stainless steel
Main Application :
GHL supper mixing granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc..
Working principle :
The powder material and adhesive are mixed fully at the bottom to become humid soft material, the nit is cut through high speed crusher and become uniform granules.
Features :
1, The machine adapts horizontal cylinder structure. Its structures is reasonable;
2, Use air filled seal shaft to drive. When washing, it can be changed to water;
a, Use fluidization to Granulate and the granule is like ball. lts flowability is good;
4, Compared with the traditional process,25%) of adhesive can be reduced and the drying time can be shorted;
5, The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;
6, In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP;
7, The whole operation has strict safe and protective measures.
8, The mixing and cutting speed are controlled through frequency change, so the granules are more even.
Technical parameters:
| Model | GHL-50 | GHL-100 | GHL-200 | GHL-300 |
| Tank volume(m3) | 50 | 100 | 200 | 300 |
| Working volume(m3) | 12-36 | 25-70 | 50-150 | 60-220 |
| Feeding capacity(kg) | 6-18 | 12-35 | 25-75 | 30-110 |
| Max inside diameter(mm) | 498 | 628 | 788 | 988 |
| Stirring speed(r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 |
| Cutter speed(r.p.m) | 50-3000 | 50-3000 | 50-3000 | 50-3000 |
| Cutter power | 1.5 | 3 | 4 | 7.5 |
| Height of discharge (mm) | 725 | 750 | 930 | 930 |
| Machine size(mm) |
2100*480 *1500 |
2900*900 *1700 |
2250*1700 *2100 |
2500*1960 *2220 |
| Weight (kg) | 500 | 880 | 1410 | 1850 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped solid preparation auxiliary equipment stainless steel GHL series granulator by sea
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
