Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press

Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press

Tdp 5 Desktop Tablet Press

Lab Tdp 5 Desktop Tablet Press

0.75KW Tdp Handheld Press

Place of Origin:

Shanghai, China

Brand Name:

Tianfeng

Certification:

CE/ISO

Model Number:

TDP-5

Contact Us
Request A Quote
Product Details
Warranty:
13 Months
Power(w):
0.75 KW
Power Source:
Optional 380V/220V 50Hz/60Hz
Product Name:
Single Punch Tablet Compression Machine
Capacity:
5500 Pcs/hour
Type:
Single Punch Tablet Making Machine
After-sales Service Provided:
Online Support
Maximum Diameter Of Tablet:
20 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Welcome to consult
Packaging Details
plywood export wooden case/ plywood case
Delivery Time
15-25 working days
Payment Terms
T/T, , Western Union, L/C
Supply Ability
99 unit/month
Product Description
lab use TDP-5 tablet press 0.75KW 50KN pressure 4800pcs/hour maximum diameter 20mm pill press for lab

Knowledge of tablet ingredients before you start tableting.
There are thousands of powder types. According to our factory's many years of experience, most of the raw materials are suitable for tabletting, or after simple processing, they are suitable for tabletting. Some raw materials are not suitable for tabletting.
Please refer to the following elements or consult customer service whether it is suitable for tabletting, please read it carefully, so as not to cause your loss due to withdrawal due to raw material problems.
Suitable for tablet material requirements:
1. Dry powder: The raw material must be dry powder and the moisture content must be controlled within 5%.
2. Fluidity: The raw material needs to have good fluidity (ideally the particle size of the tablet material is preferably between 20 and 60 mesh, and a small amount of fine powder is better). If the raw material fluidity is not good, it can be solved by making particles.
3. Adhesiveness: Tackiness means that the powder can form agglomerates or the powder can stick together by external forces. For non-sticky raw materials, it may be necessary to increase the binder to improve (such as maltodextrin, starch, sugar, microcrystalline cellulose, etc.)
4. Does not contain a large amount of oil: Raw materials containing a large amount of oil are difficult to form, so the material must not contain too much oil. If you are not sure whether your raw materials are suitable for tabletting, you can send us the raw materials and we will help you test the machine.


Technical Parameters



Model
TDP-5
Filling depth
16mm(adjustable)
Tablet thickness
6mm(adjustable)
Tablet diameter
20mm (replaceable mold)
Tablet pressure
50 kN
Maximum tablet diameter
5-20mm
Motor power
750w
Production capacity
5500pcs/ hour
Machine weight
120kg
Machine size
70x40x80cm

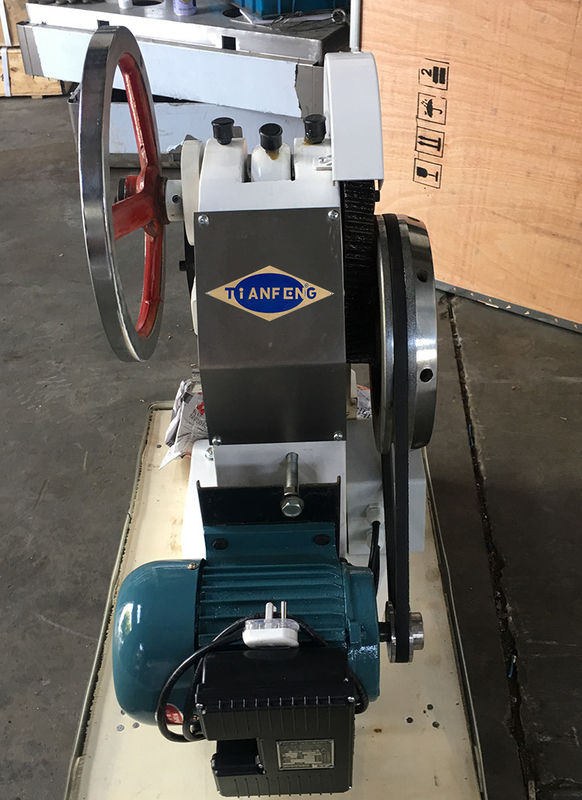

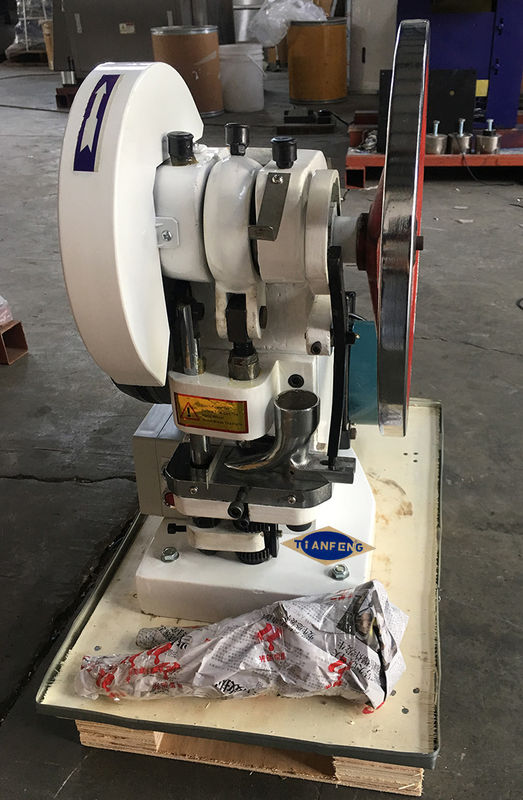

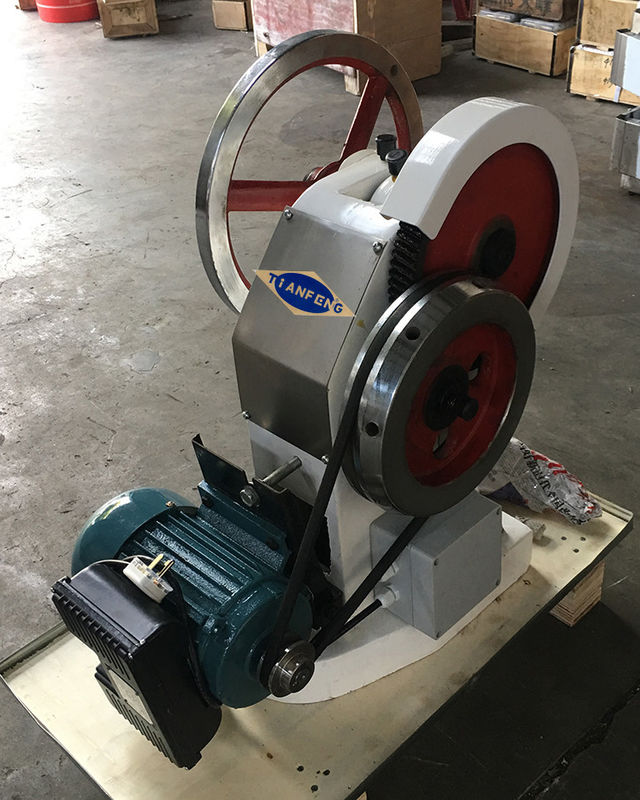

Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press 0Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press 1Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press 2

Packaging & Shipping

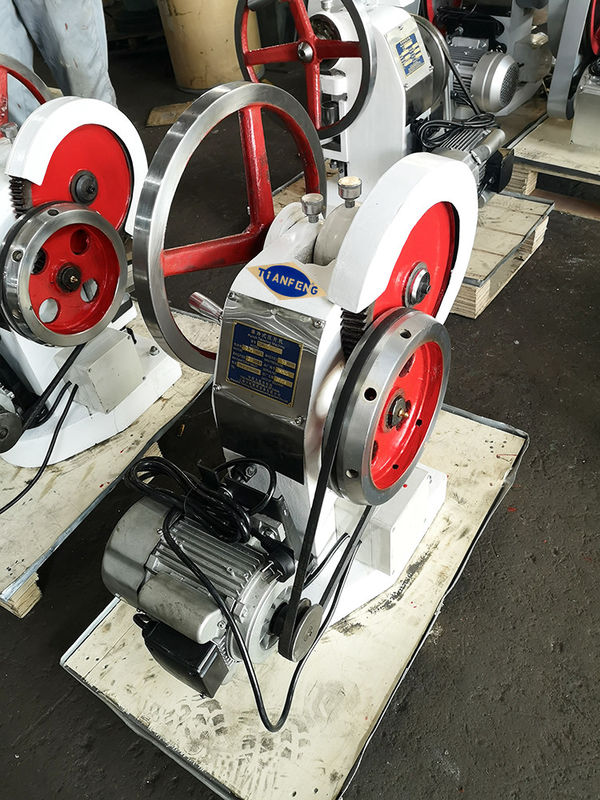

Lab 0.75KW 50KN 4800pcs/Hour 20mm Tdp 5 Desktop Tablet Press 3

 Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

TDP5 single puch pill press machine usually send by sea. also can send by air or express.

Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.



Installation Services:

Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

Customization:

All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.

Quality guarantee:

1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.



FAQ

1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.


2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!


3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
