Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
TDP6s

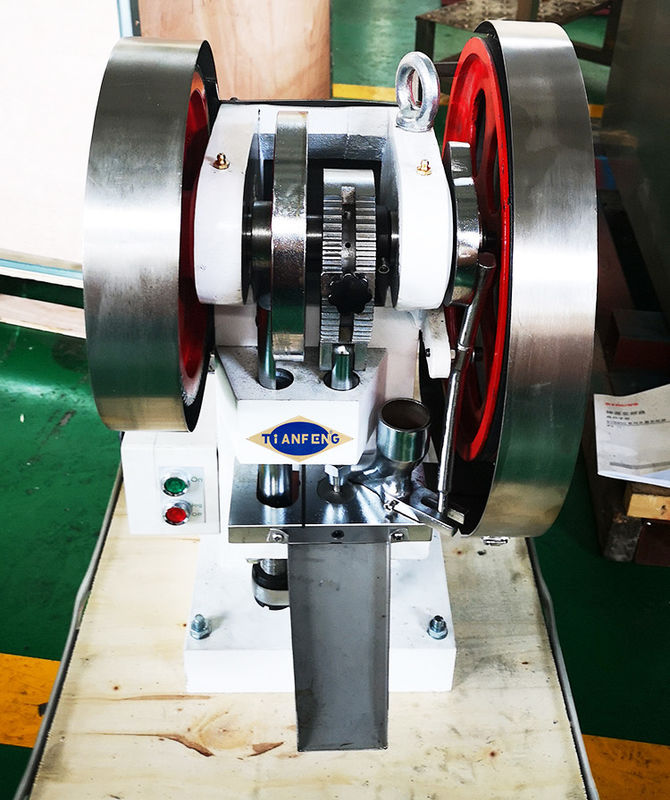

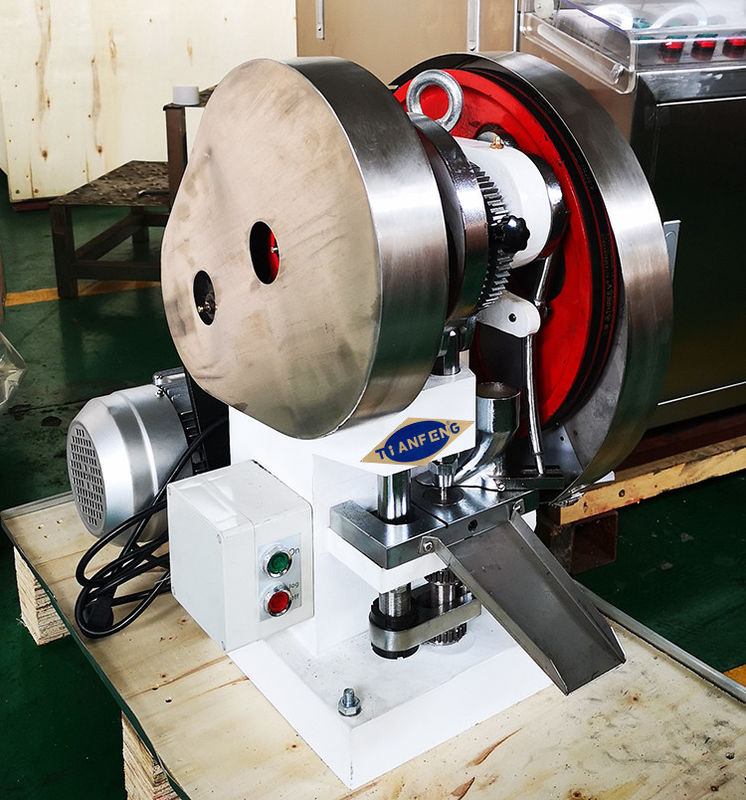

lab pharmaceutical machinery single punch tablet press machine TDP6s maximum diameter 25mm 6 ton pressure 1.5KW power
Single Punch Tablet Press
1. This Single-punch tablet press is designed for pressing tablets from a variety of granulated materials.
2. The Single punch tablet press is a pressing machine driven by motor or hand.
3. One punch die set is included. Filling depth, tablet thickness, and punch pressure are all adjustable.
4. This Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers.
Tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet
making machine, is for pressing powder raw materials into tablets.
Technical Parameters of Single Punch Tablet Press
| Model | TDP-6 |
| Maximum Pressure(KN) | 60 |
| Maximum Dia. of Tablet(mm) | 25 |
| Maximum Filling Depth(mm) | 16 |
| Maximum Thickness of Tablet(mm) | 6 |
| Production Capacity(pieces/hour) | 4500 |
| Motor power(KW) | 1.1 |
| Overall Size(mm) | 700*500*900 |
| Weight(KG) | 140 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
TDP6 single punch pill press machine usually send by sea. Also can send by air or express.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
