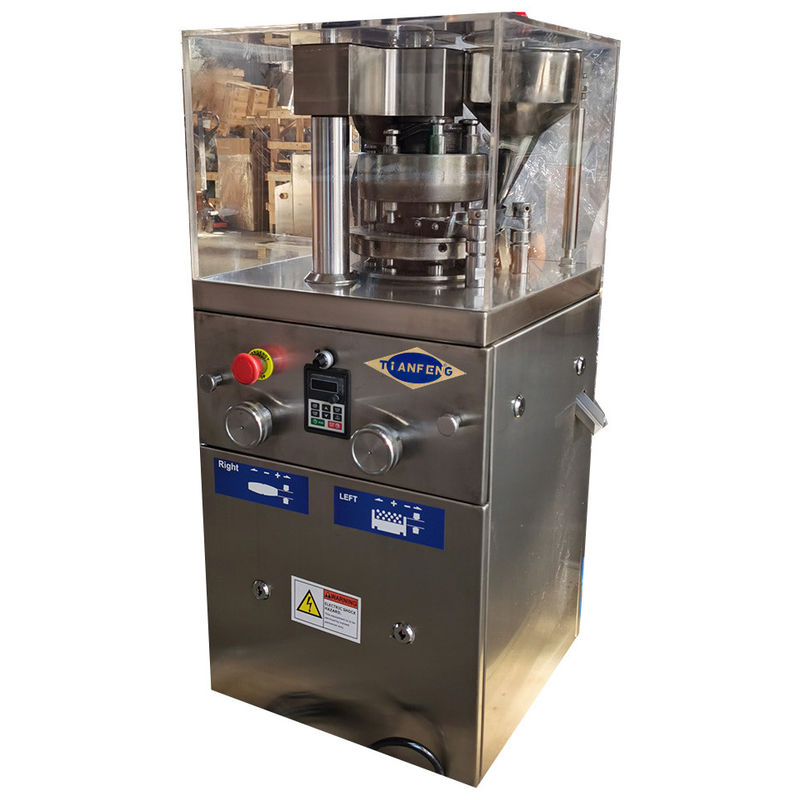

ZP5A ZP7A ZP9A ZP10A ZP11A ZP12A Small Rotary Tablet Press Machine ( pharmaceutical machinery, equipment)
Products introduction
ZP5A ZP7A ZP9A ZP10A ZP11A ZP12A Small Rotary Tablet Press Machine ( pharmaceutical machinery, equipment)
ZP-5 7 9A rotary tablet press (common type) is a single pressure automatic rotation, continuous compression machine, the raw material into a variety of tablets. It is mainly used in the production of pharmaceutical tablets, while suitable for chemical, food, electronics and other industrial sectors. The periphery of the shell is completely closed, the material is made of stainless steel, the stainless steel material is used in the inner surface, and the surface of the turntable is specially treated to keep the surface gloss and prevent cross contamination, which is in accordance with the requirements of GMP.
Characteristic:
1.With transparent glass doors and windows, can clearly observe the state of the tablet, and can all open, easy to clean and maintain internal.
2.All controllers and operating parts are well distributed.
3.The frequency conversion speed regulating device is adopted for the electric speed regulation, the operation is convenient, the rotation is stable, and the safety is accurate.
4.All drives are arranged inside the machine to keep the machine clean.
5.Equipped with overload protection device, when the pressure overload, can automatically stop.
6.This machine is equipped with electromagnetic brake motor and other safety protection devices.
Small tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet making machine, is for pressing powder raw materials into tablets.
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 40 | ||
| Max. Dia. of tablet (mm) | 12(special 14) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 1.5 | ||
| Overall dimensions(mm) | 480*630*1100 | ||
| Net weight (kg) | 200 | ||
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
ZP5/7/9 rotary tablet press machine usually send by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
