Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW19
Operating principle: 1. The cover is made of stainless steel with close type. The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Transmitting system is sealed in the oil box under the main machine which is a separate component. No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
10. Easily-damaging components such as upper orbit, material-adding machine, transmitting pole.

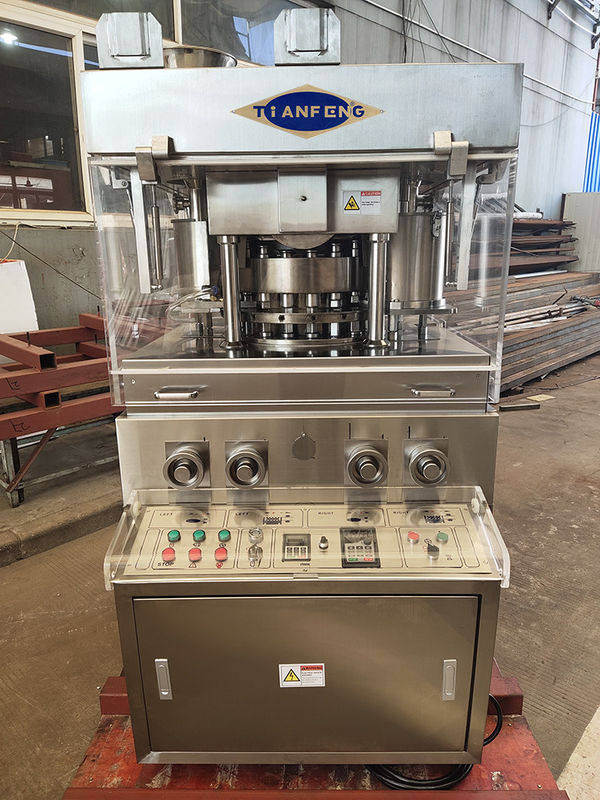

Technique Parameters of ZPW19 Rotary Tablet Press Machine
| Type | ZPW19 |
| Dies (sets) | 19 |
| Max. Pressure (KN) | 130 |
| Max. Dia. of tablet (mm) | 40 |
| Max. Depth of fill (mm) | 30 |
| Thickness of largest tablet (mm) | 15 |
| Turret speed (r/min) | 18 |
| Production capacity (pc/h) | 20520 |
| Motor power (KW) | 5.5-7.5 |
| Overall dimensions (mm) | 1230×980×1690 |
| Net weight (KG) | 2000 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped salt tablet press machine ZPW29 ZPW31 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
Send your inquiry directly to us
