Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPK25

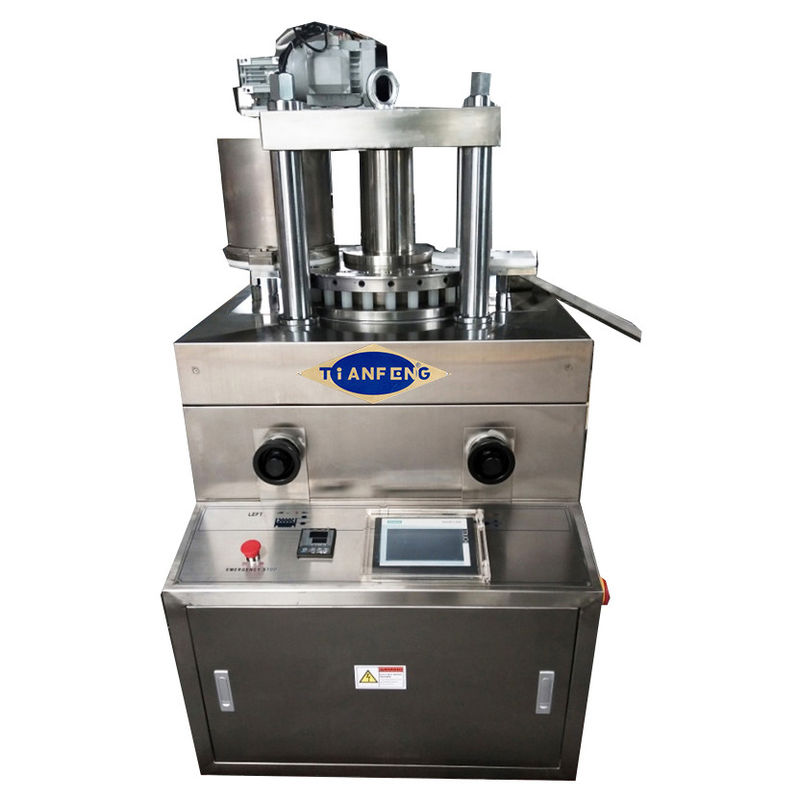

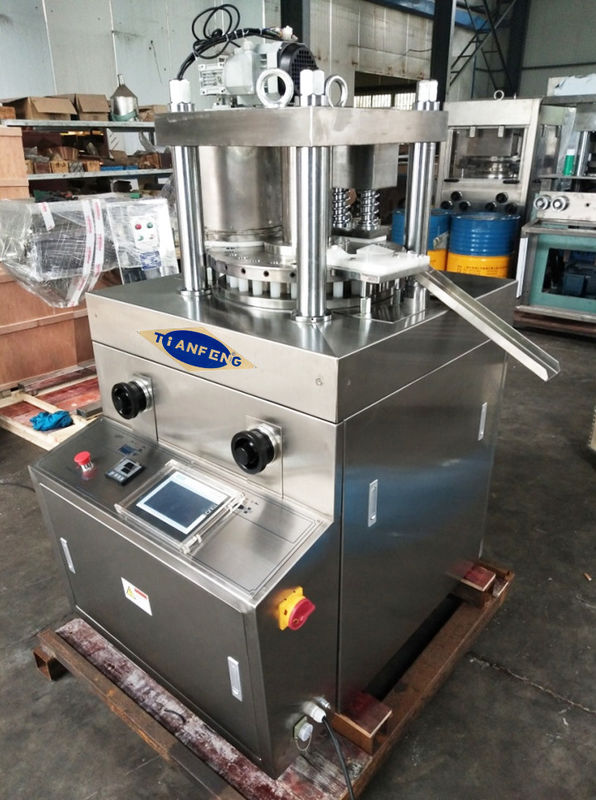

ZPK25 single press automatic continuous tablet pressing machine for food cube making
This machine is a single press automatic continuous tablet pressing machine, which meets the GMP requirements and has excellent performance. It is suitable for pressing all kinds of blocky tablets, such as Bazhen cake, mung bean cake, fried rice cake and instant noodles. The device can also be designed as touch screen control according to the requirements. The materials of all parts of the equipment in contact with the materials meet the food and drug standards. This machine can also be customized according to customer's product requirements.
The structural features of the machine are as follows:
1. The outer cover is made of stainless steel, and the inner table is also made of stainless steel, which can keep the surface luster and prevent cross contamination, meeting GMP requirements.
2. It can suppress many kinds of tablet shapes, such as round, irregular and so on.

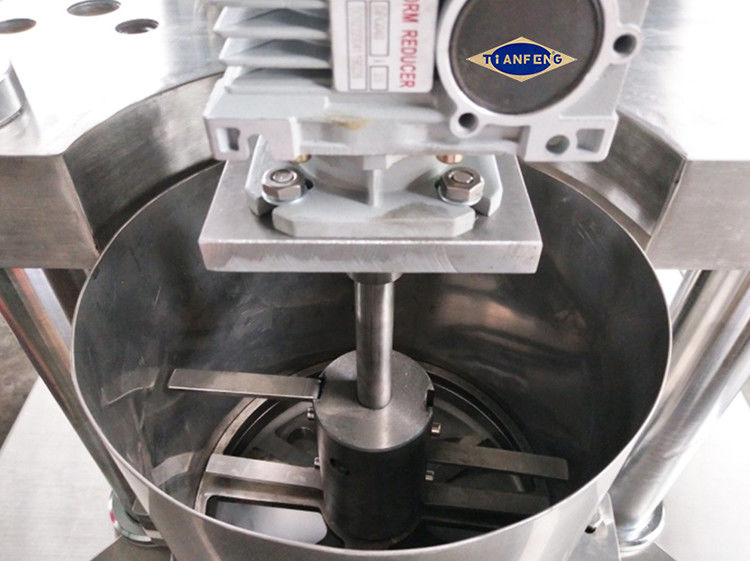

3. Specially designed forced feeder is suitable for materials with various flow characteristics.

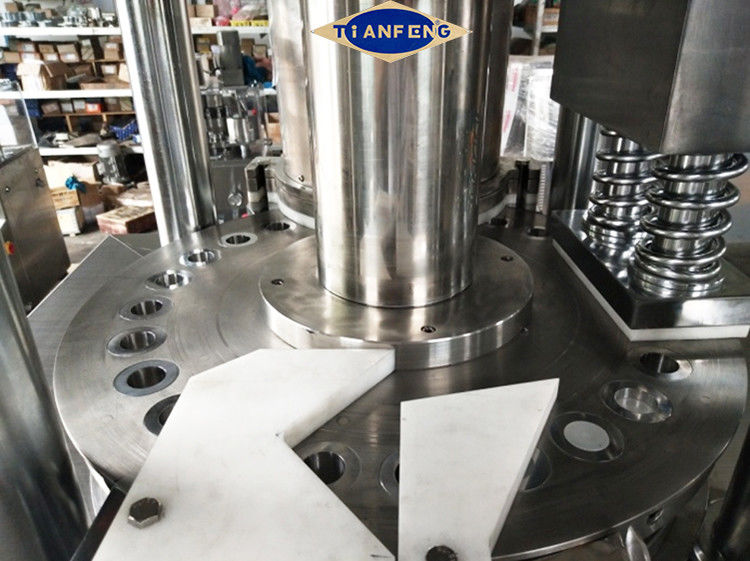

4. The plane of the rotary table is made of stainless steel and specially processed to meet the food and drug standards.
5. The electric appliance is operated by button, and the speed is stepless speed regulation, which can be adjusted at will (the touch screen PLC configuration can also be customized to realize the integration of man and machine).
6. The transmission system is sealed in the mailbox under the main body of the machine. It is an independent component separated safely, which will not pollute each other. It also makes the transmission shaft penetrate into the lubricating oil pool, which can get sufficient lubrication and reduce noise and wear.
Main technical parameter:
|
Model |
ZPK-25 |
|
Punching modulus |
25 |
|
Maximum tablet pressure (KN) |
60 |
|
Maximum tablet diameter (mm) |
25 |
|
Maximum filling depth (mm) |
35 |
|
Maximum tablet thickness (mm) |
7-17 |
|
Rotary speed (RPM) |
25 |
|
Maximum production capacity (piece / hour) |
37500 |
|
Motor (kw) |
4 |
|
Dimensions (mm) |
1200x950x1650 |
|
Main engine weight (kg) |
1500 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
ZPK25 pharmaceutical pill press usually send by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
