Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW15D ZPW17D ZPW19D

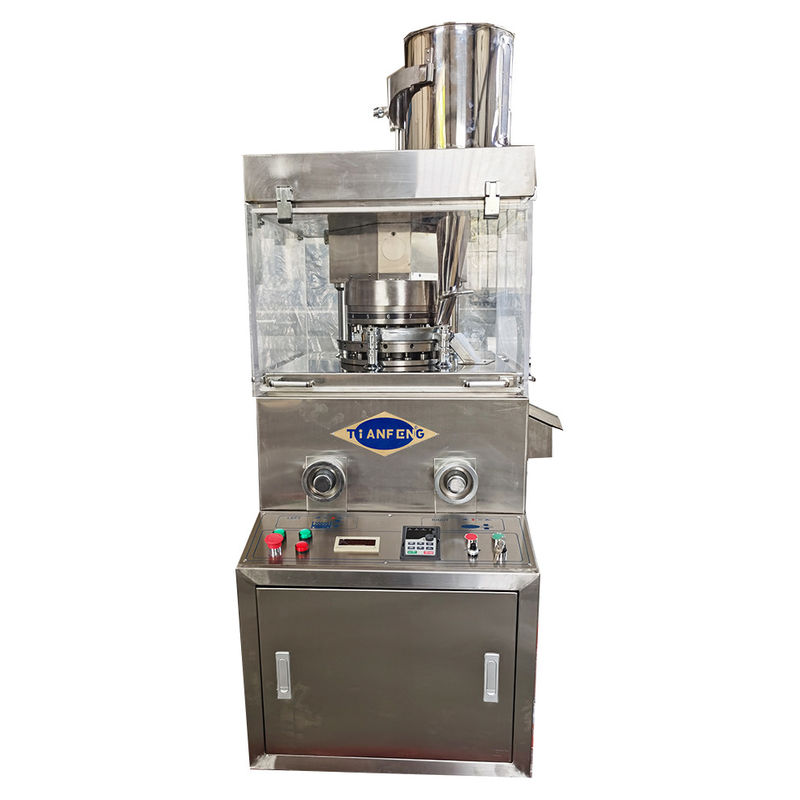

Full Automatic Rotary Tablet Pill Press Machine 2.2KW
This machine is a single-press automatic rotating, continuous tableting machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry. It is also suitable for chemical, food, electronics and other industrial sectors. The outer casing is a fully enclosed form. The material is stainless steel. The internal table is made of stainless steel. The surface of the turntable is specially treated to maintain the surface gloss To prevent cross-contamination and meet GMP requirements. The doors and windows equipped with transparent glass can clearly observe the state of the pressing, and can be fully opened, which is easy for internal cleaning and maintenance. All controllers and operating parts are reasonably arranged. The frequency conversion speed control device is used for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate. All transmission devices are arranged inside the machine to keep the parts clean. Equipped with overload protection device, when the pressure is overloaded, it can automatically stop. This machine is equipped with an electromagnetic brake motor and other safety protection devices, which can also be adjusted and operated during operation.
Main Feature:
1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;
2. The test machine and adjustment work can be completed without stopping the machine;
3. All controllers and operating parts are reasonably arranged and easy to operate;
4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.
Technical parameter:
| Dies (sets) | 15 | 17 | 19 |
| Max. Pressure (kn) | 60 | 60 | 60 |
| Max. dia. of tablet (mm) | 25 | 20 | 12 |
| Max. Depth of fill (mm): | 15 | 15 | 15 |
| Max. Thickness of largest table (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 38000 | 40,000 | 42000 |
| Turret speed (r/min) | 36 | 37 | 37 |
| Motor power (kW) | 3 | 2.2/960, 380V/50 | 2.2 |
| Overall size (mm) | 615 x 890 x 1,415 | 615 x 890 x 1,415 | 615 x 890 x 1,415 |
| Weight (kg): | 800 | 800 |
800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet press machine ZPW15D ZPW17D ZPW19D by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
