Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP5 Zp7 Zp9 rtp9 ZP15 ZP17 ZP19 ZPW17DZPW19D ZP31 TDP

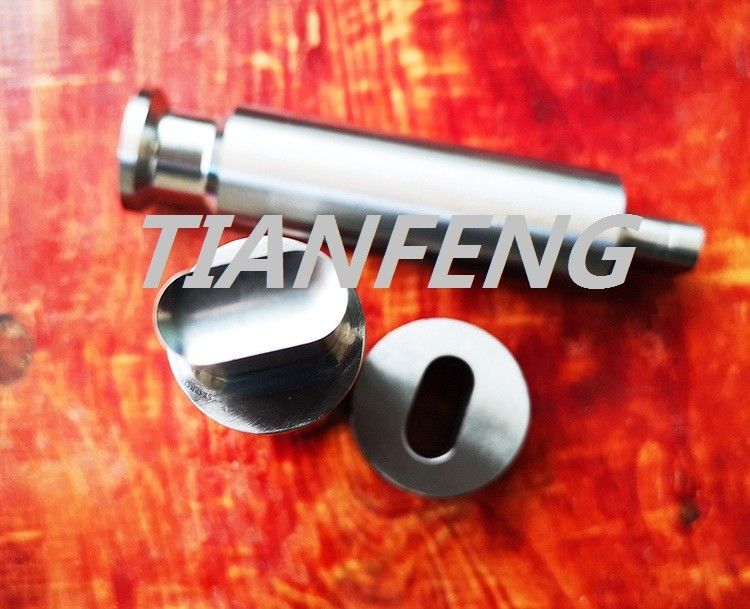

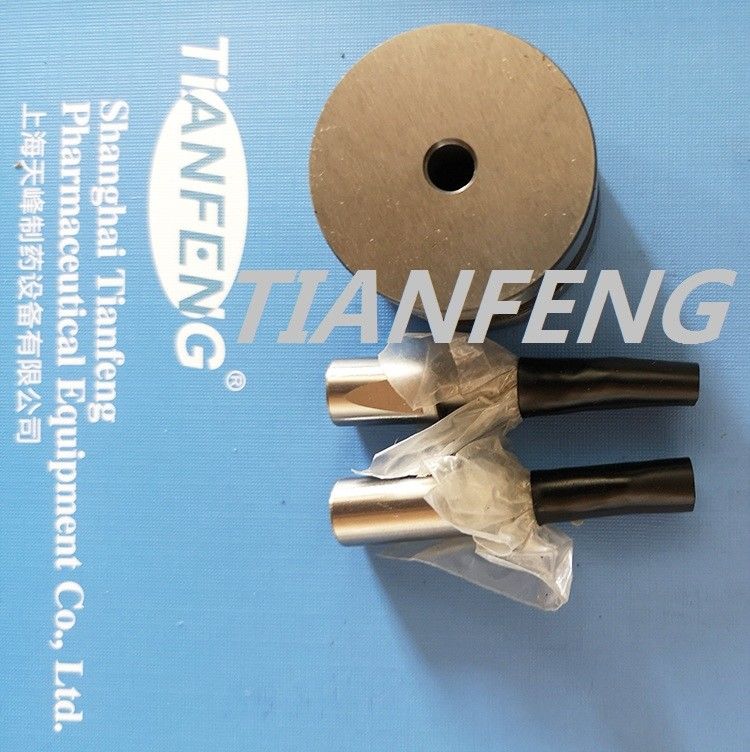

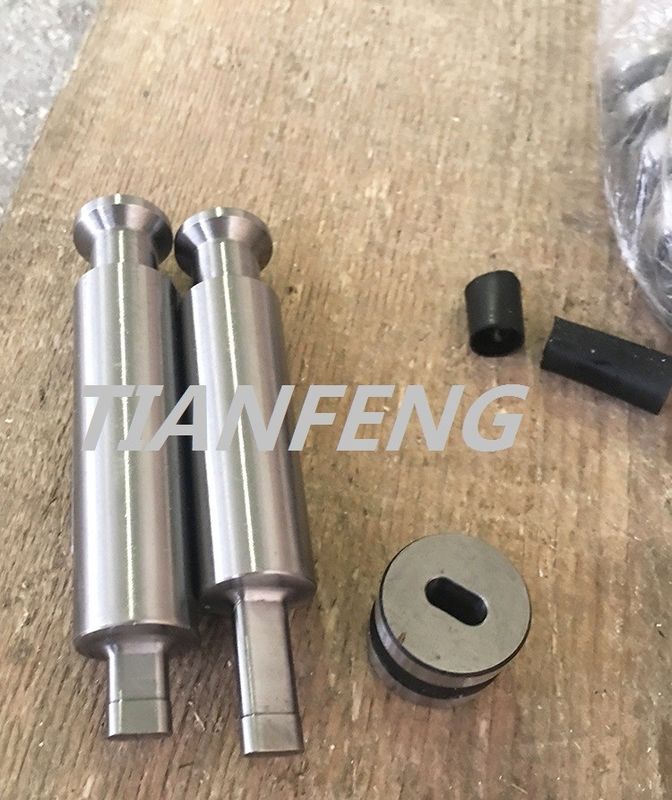

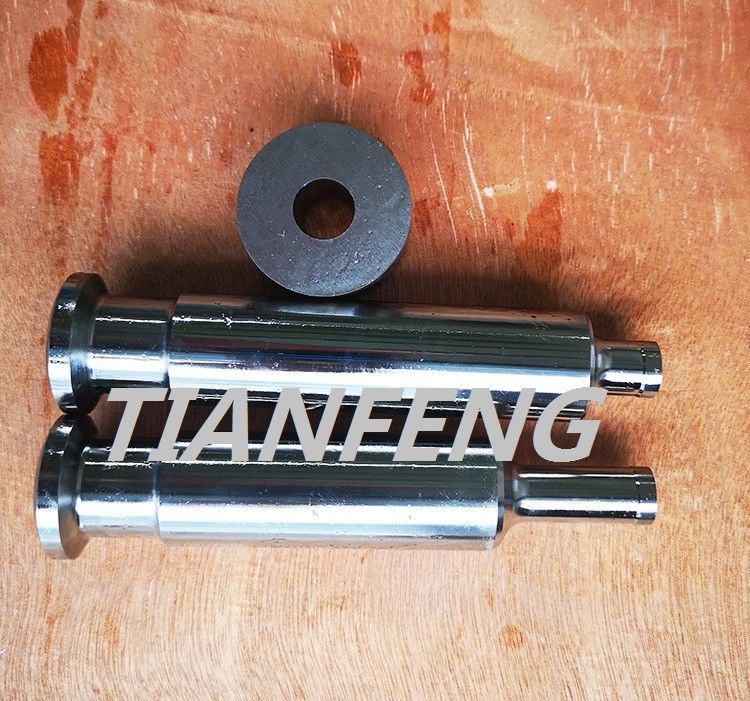

Pharmaceutical TDP/ZP Punch And Die Stamp Mold
Features:
1) The die adopt carbon steel, bearing steel, chrome 12 materials.
2) Meeting the IPT standard.
3) Corrosion resistance, impact resistance, wear resistance, high temperature, long life.
4) 100% interchangeability.
5) Precision: 2 degree.
6) The roughness of surface can achieve Ra0.1, and the mating surface can achieve Ra0.4.
7) Hardness: Die: HRC58+2; Middle Die: HRC60+2.
Technical Parameter:
| Type of P/D | Application | Standard reference |
|
International standard P/D |
HSZP series high speed rotary tablet press, ZPS series B / D type rotary tablet press | |
|
Normal P/D for ZP series tablet press |
ZP5/7/9, ZP15/17/19, ZPW29/31, ZP33, ZP35A, ZP35B, ZP35/37/41D, ZP47, ZPYG14/51/55/65 Rotary tablet press | GB12253-90 |
|
Tablet press oriented P/D |
TDP single punch tablet press, THP flower basket tablet press, ZP13/15/17/19/21A, ZP13/15/17/19/21B, ZP21/13/25/27, ZPW21/23/25, ZPB23 rotary tablet press. |
Our company is a professional manufacturer of tablet press, professional production of various kinds of tablet machine, mixer, crusher, pharmaceutical equipment, the provision of other professional single stamping die, the flower basket type machine machine mold, rotary tablet press die, ordinary blunt, blunt, lettering and all kinds of the geometry of the die, welcome to inquire business!
More common tablet press punching die are: 3 to 30 mm in diameter circular die (shallow arc, deep drawing, oblique impact, prick burst, etc.)

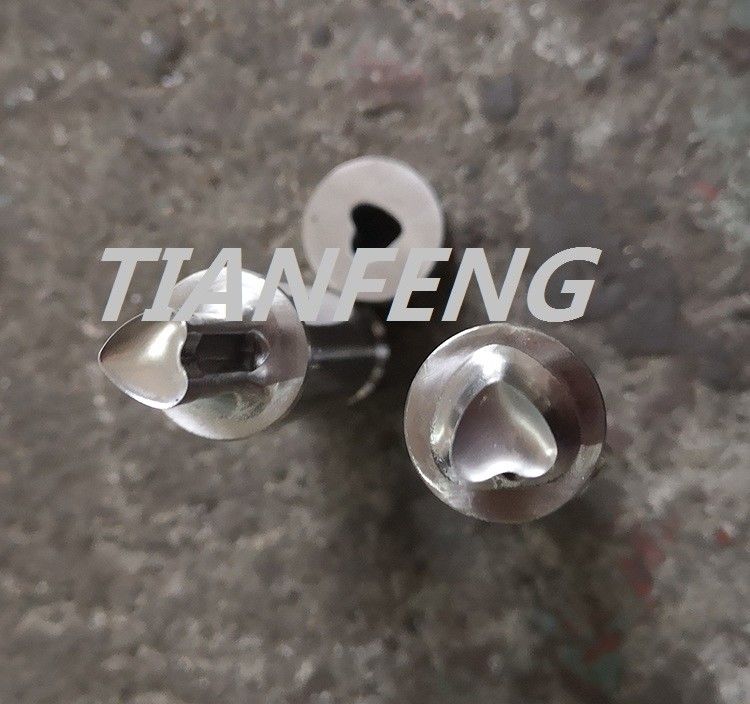

All kinds of special-shaped punching: triangle, oval, capsule type, polygon, etc
All can be single die lettering, double-sided lettering, engraved logo, etc.
Description:
The die and punch are the most important parts in the tablet press machine, there is one set of die and punch, and they are upper punch, middle punch, lower punch.
Application
1) Press Chinese and Western Medicine.
2) Press PTEE seal ring, camphor ball and other chemical product.
3) Press oxidation ceramic, ceramic balls and other electronic products.
4) Press magnetic bracelet baht, chain beads and other metallurgical product.
Features:
1) The die adopt carbon steel, bearing steel, chrome 12 materials.
2) Meeting the IPT standard.
3) Corrosion resistance, impact resistance, wear resistance, high temperature, long life.
4) 100% interchangeability.
5) Precision: 2 degree.
6) The roughness of surface can achieve Ra0.1, and the mating surface can achieve Ra0.4.
7) Hardness: Die: HRC58+2; Middle Die: HRC60+2.
Technical Parameter:
| Type of P/D | Application | Standard reference |
|
International standard P/D |
HSZP series high speed rotary tablet press, ZPS series B / D type rotary tablet press | |
|
Normal P/D for ZP series tablet press |
ZP5/7/9, ZP15/17/19, ZPW29/31, ZP33, ZP35A, ZP35B, ZP35/37/41D, ZP47, ZPYG14/51/55/65 Rotary tablet press | GB12253-90 |
|
Tablet press oriented P/D |
TDP single punch tablet press, THP flower basket tablet press, ZP13/15/17/19/21A, ZP13/15/17/19/21B, ZP21/13/25/27, ZPW21/23/25, ZPB23 rotary tablet press. |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

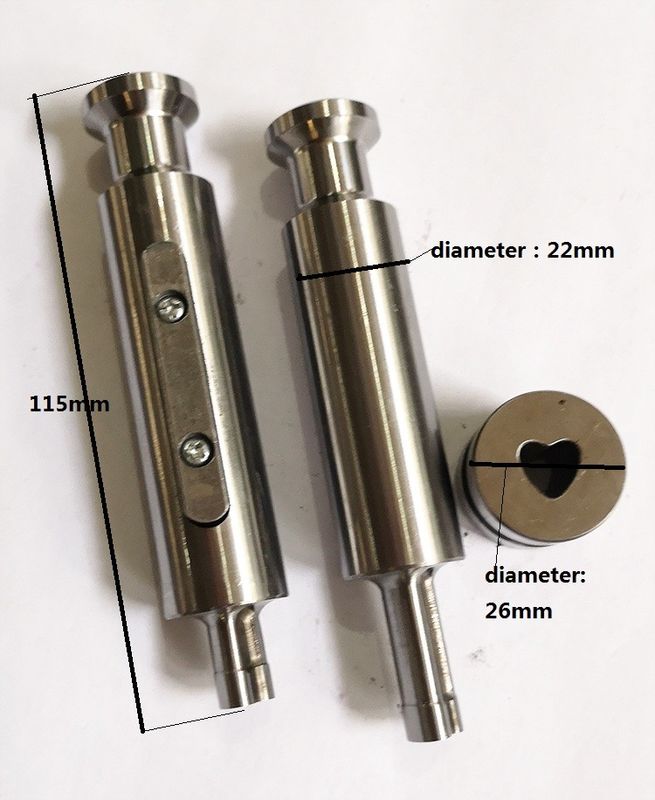

TDP single punch pill press machine mold usually send by air or express.
One station service to make sure our customer get good products and good service.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
