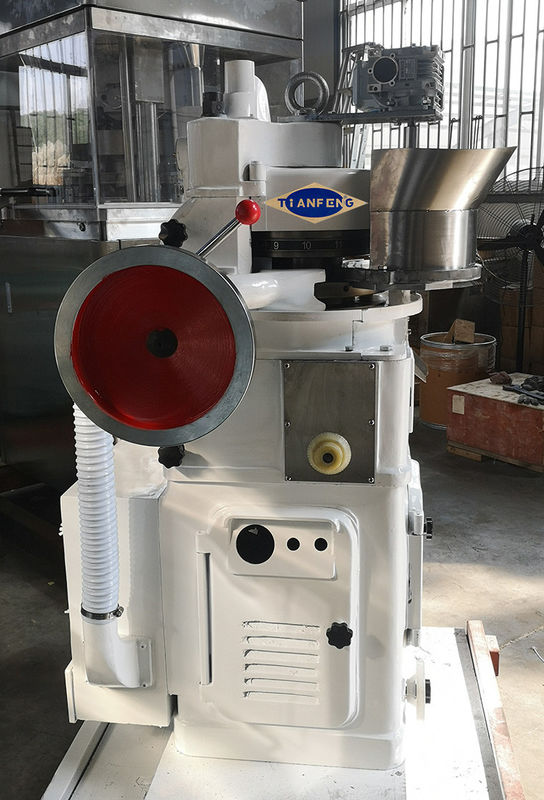

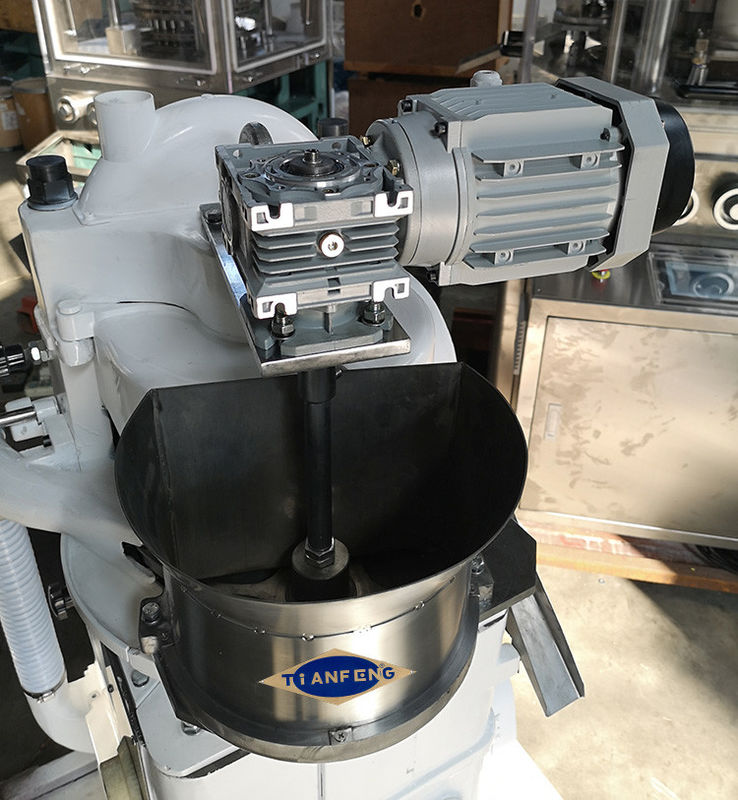

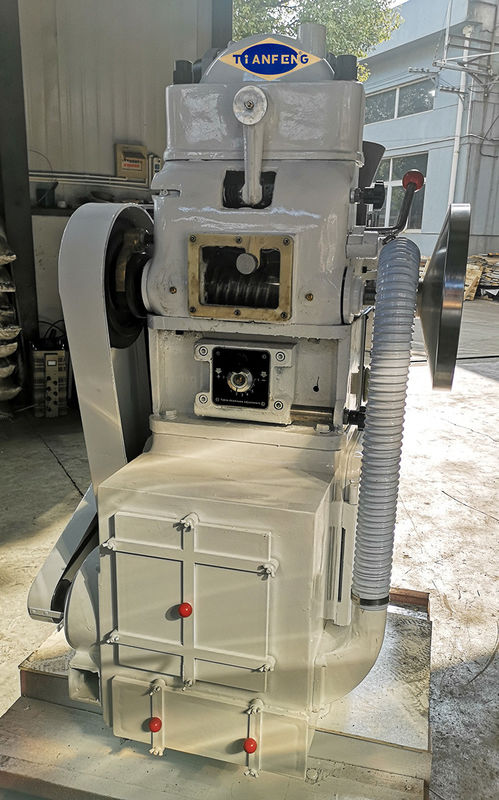

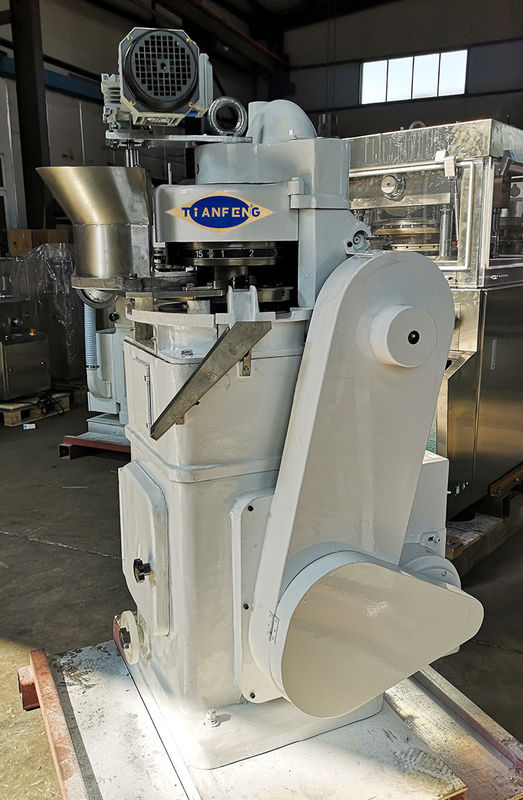

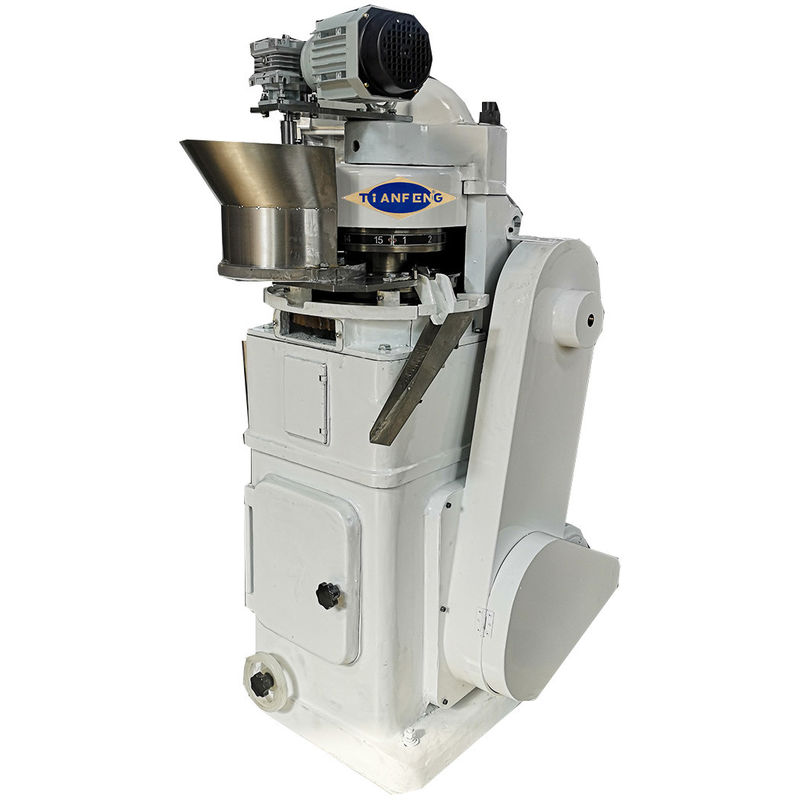

ZP-15 17 19 Rotary Tablet Pressing/Pill Making for Food and Pharmaceutical Industries
Main Application:
This machine is designed for pressing round tablets from various kinds of granular materials. It is a primary machine to fit batch production of tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Operating Principle:
1. It is suitable for small batch production. Its features are that the turret can be installed with 15-19 sets of punches to make 15-19 tablets after each revolution of the turret rotation.
2. The turret speed, filling depth and the tablet thickness are all adjustable. The mechanical buffering device on the machine parts caused due to overload.
3. The machine is provided with a powder suction box to suck the dust during the production and avoid bonding and blocking.
Technical parameters
| Model | ZP-15 | ZP-17 | ZP-19 |
| Dies | 15 | 17 | 19 |
| Max.pressure(KN) | 60 | 60 | 60 |
| Max.Dia. of Tablet(mm) | 24 | 20 | 13 |
| Max.Depth of fill(mm) | 15 | 15 | 15 |
| Max.Thickness of Tablet(mm) | 6 | 6 | 6 |
| Turret speed(r/min) | 22-35 | 22-35 | 22-35 |
| Production capacity(pc/h) | 31500 | 35700 | 39900 |
| Motor(kw) | 3 | 2.2 | 2.2 |
| Overall size(mm) | 760*750*1550 | 760*750*1550 | 760*750*1550 |
| Net weight(kg) | 600 | 600 | 600 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped tablet compression machine ZP15 ZP17 ZP19 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mould set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
