GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station

GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station

20mm automatic tablet making machine

GMP automatic tablet making machine

20mm single station tablet press

Place of Origin:

Shanghai, China

Brand Name:

Tianfeng

Certification:

CE/ISO

Model Number:

ZP5 ZP7 ZP9

Contact Us
Request A Quote
Product Details
Materials:
Ss304
Warranty:
13 Months
After- Sales Service Provided:
Engineers Available To Service Machinery Overseas
Power(w):
1.5KW
Power Source:
380V/220V Optional
Product Name:
Tablet Press Machine
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
welcome to consult
Packaging Details
plywood export wooden case
Delivery Time
15-20 working days
Payment Terms
T/T, , Western Union, L/C
Supply Ability
100 unit/month
Product Description

Main application:This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

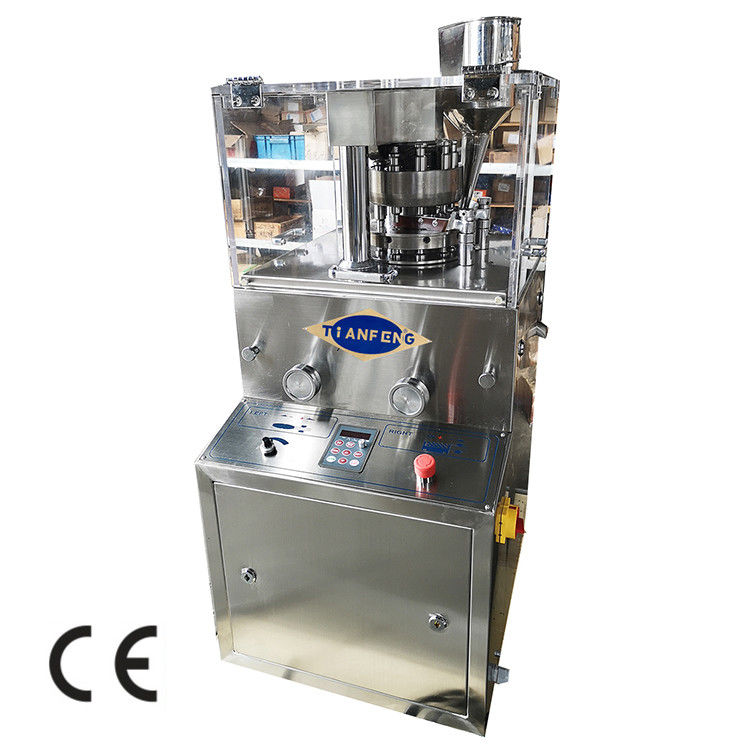

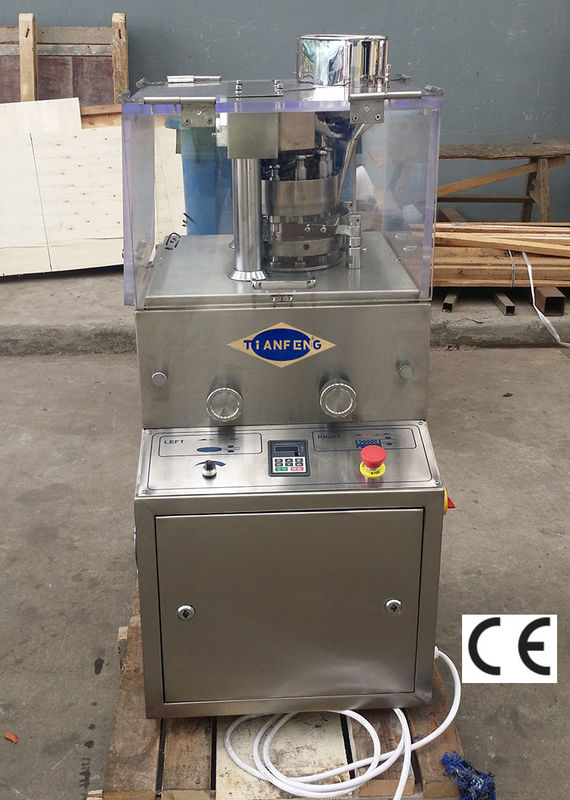

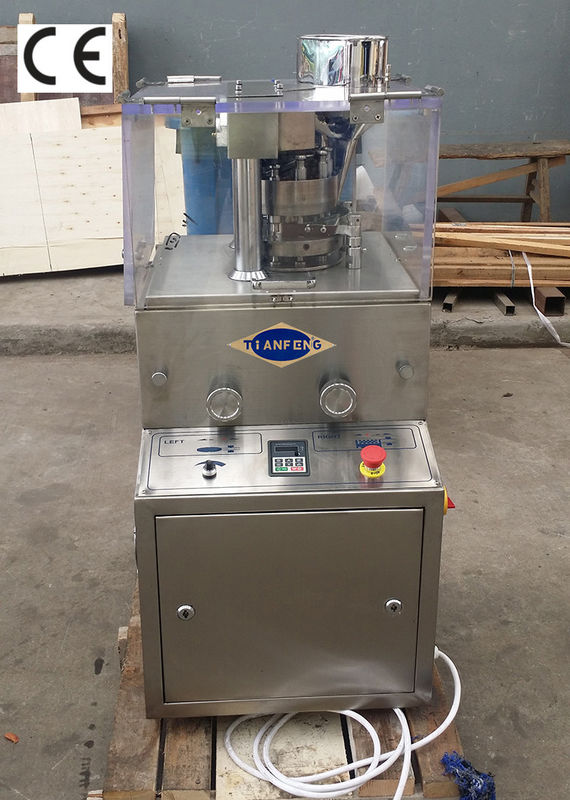

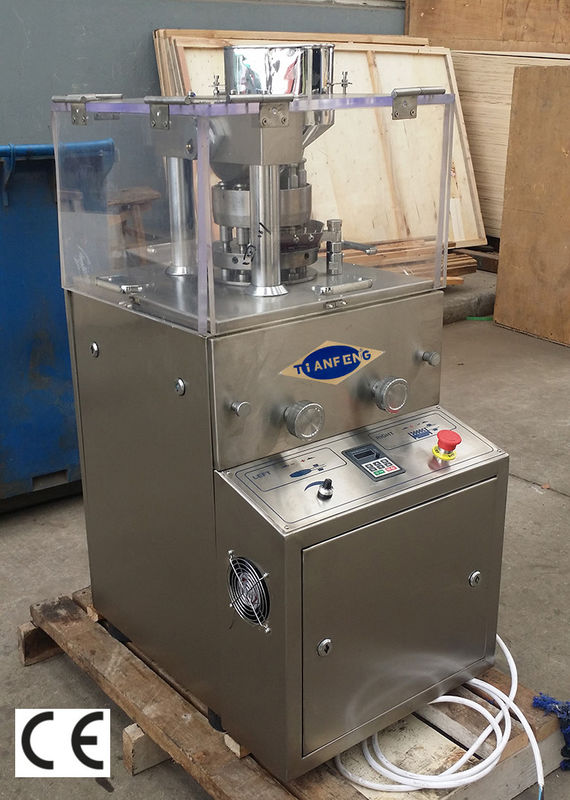

ZP Rotary Tablet Press Machine
Feature:

1. This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet-pressing. It is mainly used for the manufacture of tablet in pharmaceutical continuous; it also applies to press the granular material into tablet in the industry of chemical, food, electronic etc. 2. This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator. 3. This machine can produce round, special-shaped and character-engraved tablets ¢5—20mm.

GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station 0GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station 1GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station 2


Technical Parameters of ZP 5/7/9 rotary tablet press

Model
ZP-5
ZP-7
ZP-9
Dies
5
7
9
Max.pressure (Kn)
60
60
60
Max.Dia.of Tablet (mm)
20mm
Max.Depth of Fill (mm)
15
15
15
Max.Thickness of Tablet (mm)
6
6
6
Turret Speed (r/min)
30
30
30
Production Capacity (pc/h)
9000
12600
16200
Motor (Kw)
2.2
Overall Size (mm)
480*630*1100
Net Weight (Kg)
260

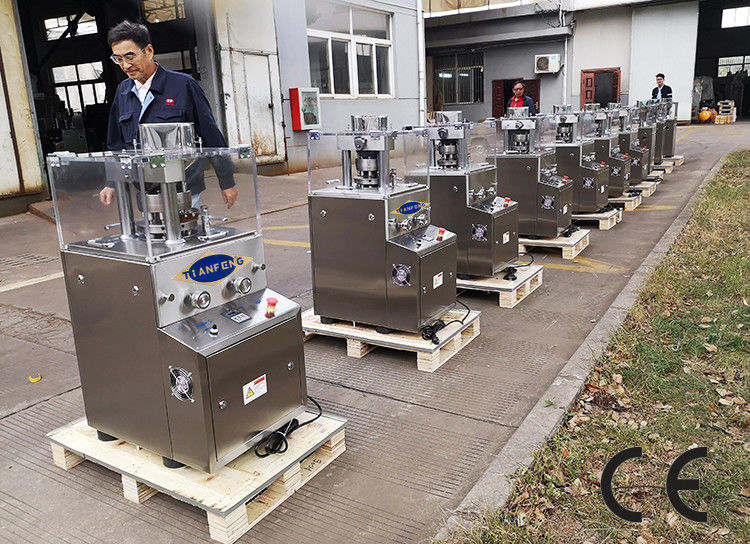

Packaging & Shipping

GMP Mini Rotary 20mm Diameter Pills Automatic Tablet Making Machine Single Station 3

 Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.

ZP5/7/9 rotary tablet press machine usually send by sea.

Our Services

One station service to make sure our customer get good products and good service.



(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours

except the special reasons once you enquiry us.

(4) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Spare Part Replacement

First round mold punch die set for free, discount if more order.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,

we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!

Q: How long is your delivery time?

A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: What's the payment you prefer?

A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Q: Why should you choose our tablet press and packing machine ?

A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.

Q: Can I visit your factory and send team for learning and inspect ?

A:Sure ! We will do our best to teaching you how to use the machine.

Q: Can you provide after-sale service ?

A:Certainly,.We have engineers available to service overseas.

Q: What is our advantages?

A: 1.Competitive price
2. Excellent technical support

3.Best service.
