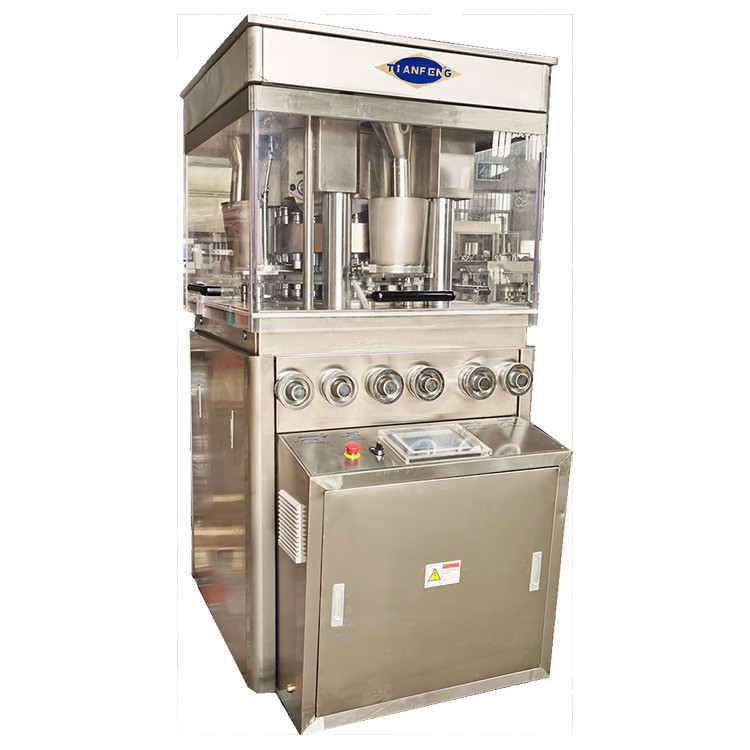

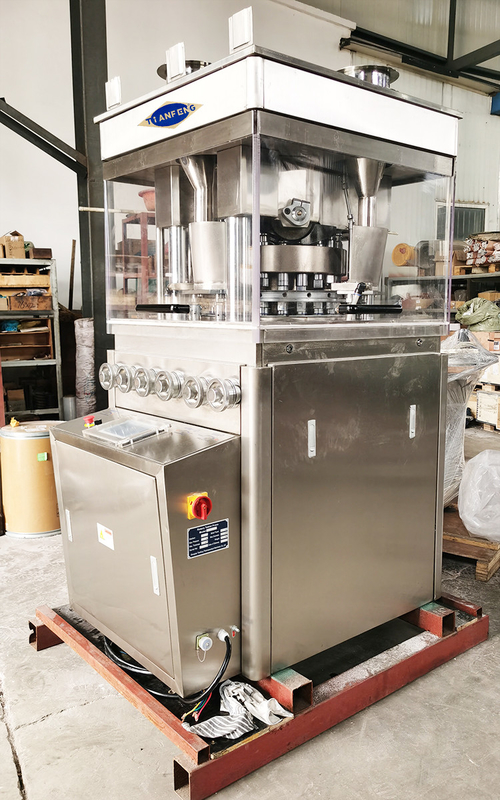

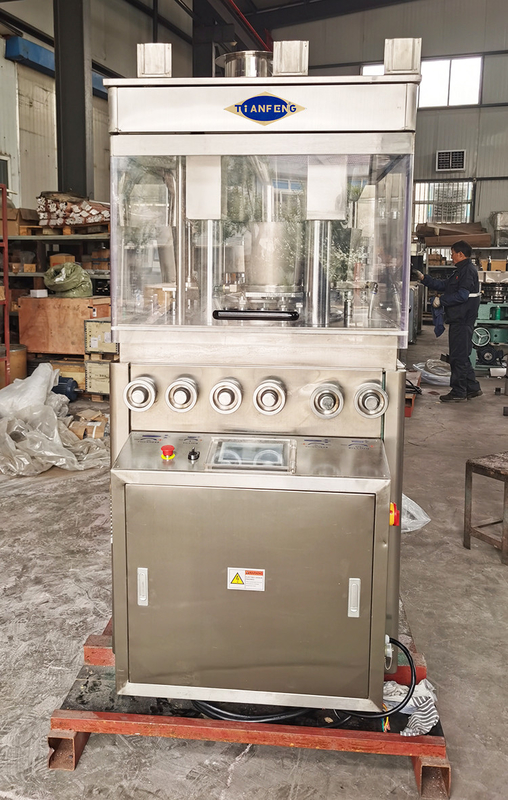

Tablet compression machine candy salt effervescent pill pressing 100 KN big pressure ZPW21 ZPW23

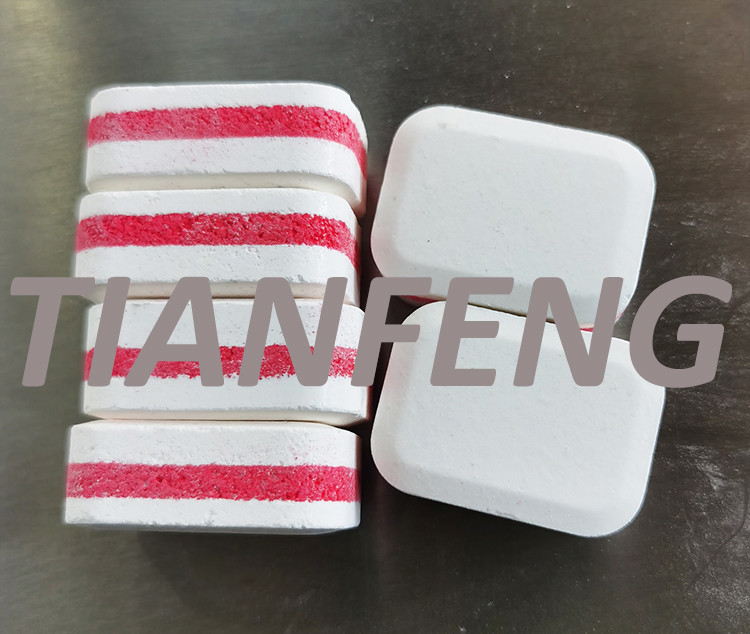

Based on ZP27 Rotary tablet press machine, our factory improved it. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.
Technical parameter of ZPW-21 Three Layer Press Machine
| Dies (sets) | 21 | 23 |
| Max. Pressure (KN) | 100 | 100 |
| Max. dia. of tablet (mm) | 45 | 45 |
| Max. Thickness of largest tablet (mm) | 12 | 12 |
| Max. Depth of fill (mm) | 25 | 25 |
| Max. production capacity(pcs/h) | 21000 | 22000 |
| Rotational diameter(mm) | 445 | 445 |
| Rotational speed of revolving table(r/min) | 10-25 | 10-25 |
| Diameter of middle mould (mm) | 45 | 45 |
| Highness of middle mould(mm) | 30 | 30 |
| Length of up and low punch pole (mm) | 32 | 32 |
| Length of the upper punch pole (mm) | 175 | 175 |
| Length of the lower punch pole(mm) | 180 | 180 |
| Overall dimensions(mm) | 1000*1250*1900 | 1000*1250*91900 |
| Net Weight (kg) | 3200 | 3200 |
| Motor model | YU132M4A | YU132M4A |
| Motor(KW) | 7.5 | 7.5 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW21 ZPW23 by sea.
