Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPG29
Video
Video
1. The pressure is high enough to meet the better quality of the tablet.
2. Use D tooling punch, double pressure double side output, high production efficiency.

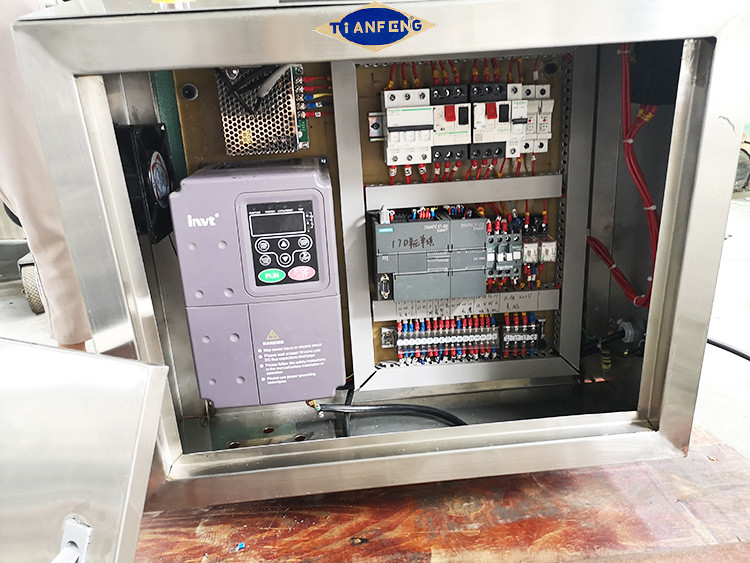

3. The control part adopts PLC programmable controller, and the operation panel uses color touch display screen, easy to operate.
4. Equipped with closed forced feeder. When the equipment runs at high speed, it fills the material forcibly, shortens the filling time and ensures the stability of tablet weight.
5. Equipped with main pressure display, pressure overload protection device, when the pressure overload, can automatically stop. There are overpressure protection, emergency stop, frequency converter fault alarm protection, strong exhaust heat dissipation device.
6. The working area adopts fully closed transparent windows with less dust pollution and excellent sealing. Components are made of stainless steel or special surface treatment, which can prevent cross pollution and meet GMP requirements.
Technique Parameters of ZPG29 Rotary Tablet Press Machine
| Model | ZPG29 |
| Tooling type | D tooling |
| Dies (sets) | 29 |
| Max. Pressure (KN) | 80 |
| Max. Dia. of tablet (mm) | 25 |
| Max. Filling Depth (mm) | 15 |
| Thickness of largest tablet (mm) | 6 |
| Diameter of up and down die punches(mm) | 25.35 |
| Diameter of middle punch (mm) | 38.1 |
| Turret speed (r/min) | 14-36 |
| Production capacity (pc/h) | 48000-125280 |
| Motor (KW) | 7.5 |
| Overall dimensions (mm) | 1240×980×1690 |
| Net weight (KG) | 1800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPG29 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
