Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31
Video
Video

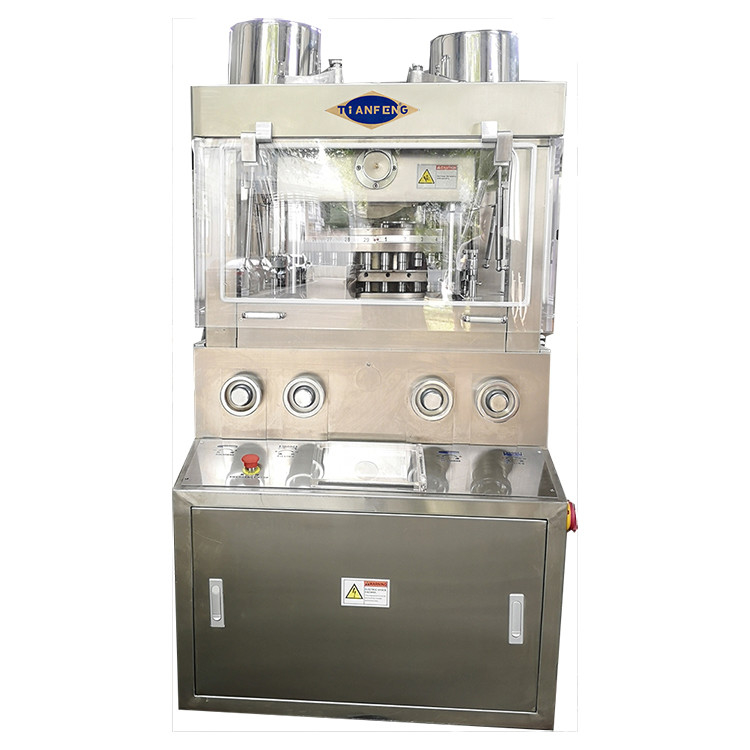

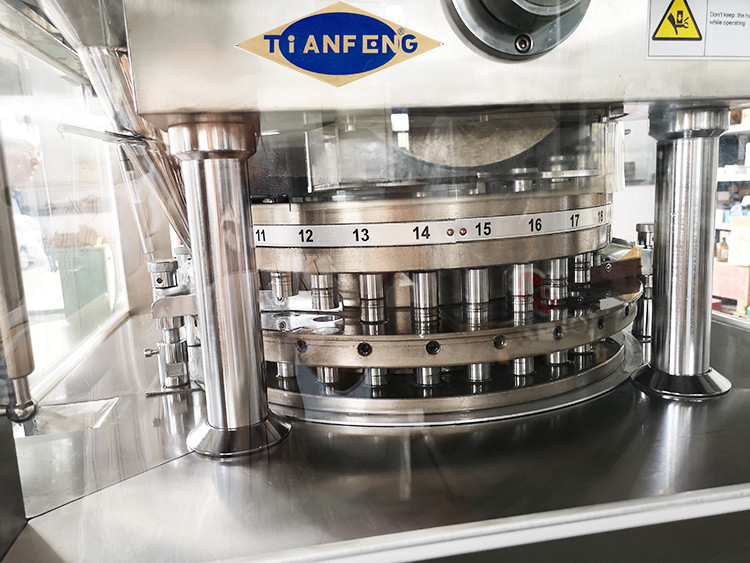

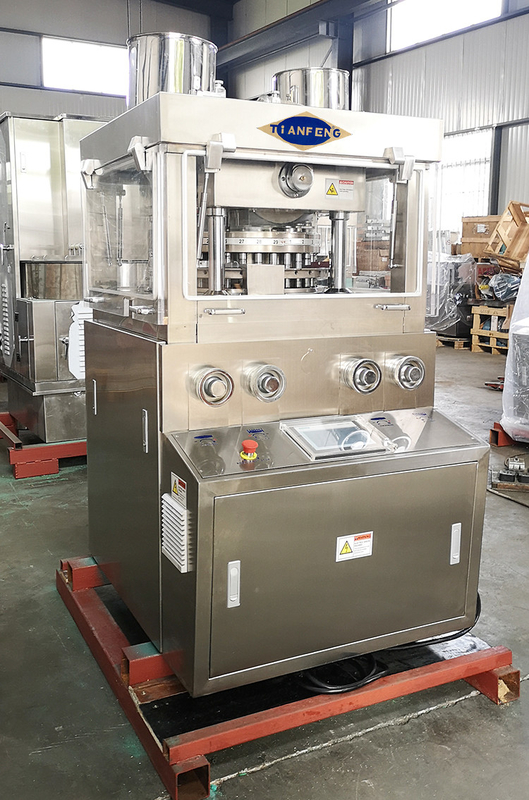

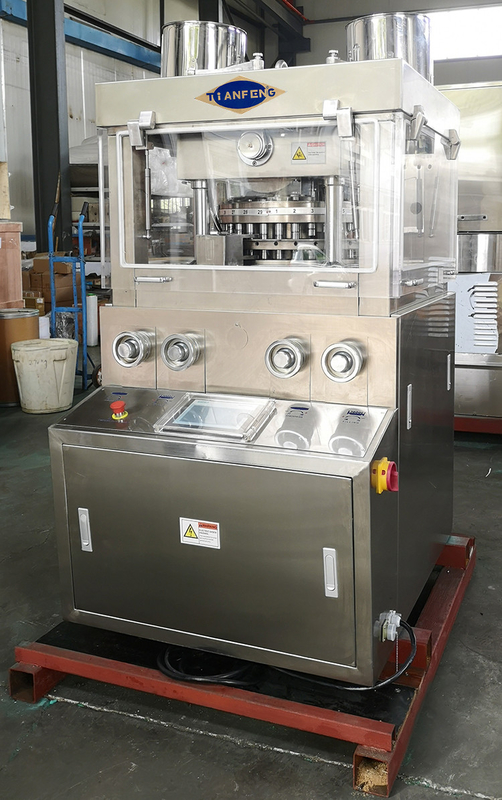

ZPW29/31 Special Tablet Press Machine
This machine is a double-press type .continuous automatic tablet press for pressing granular raw materials into tablets .It is mainly used in pharmaceutical industry and also the chemical,food,electronic industries.
Produce all kinds of round tablets, irregular tablets ,double-layered and annular tablets.
The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel .The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the GMP requirement.
It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier.
The lay-out of all the controllers and the operate parts is reasonable.
The speed adjustment of the driver is controlled by the frequency conversion device.
All the drive devices are located inside the machine so keep the machine clean.
A overload protection unit is included in the system to avoid the damage of the punches and apparatus ,when overload occurs, the machine stops automatically.
Main Feature:
1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;
2. The test machine and adjustment work can be completed without stopping the machine;
3. All controllers and operating parts are reasonably arranged and easy to operate;
4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.
Technique Parameters of ZPW29 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) | 48000-125000 | 52000-135000 |
| Motor (KW) | 3 | 3 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW29 ZPW31 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
