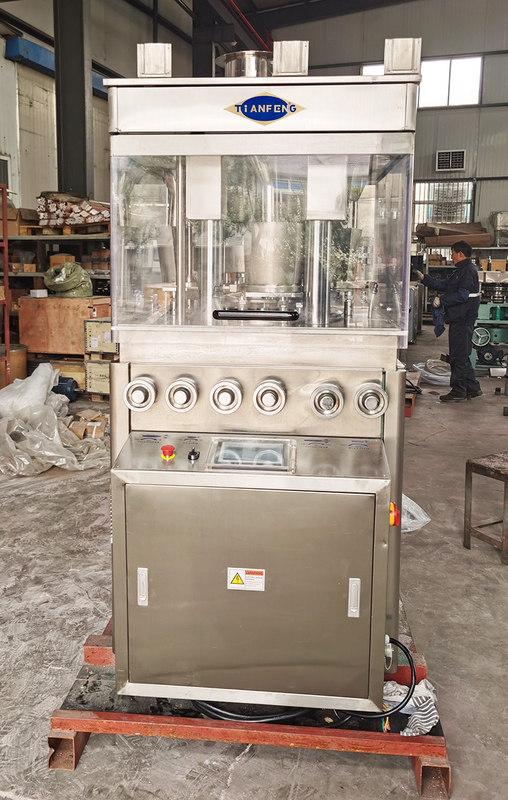

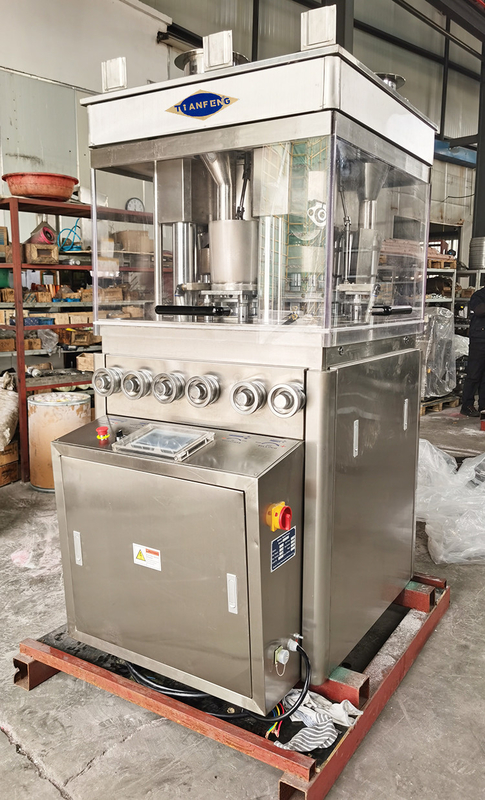

tablet compression machine candy salt effervescent pill pressing 100 KN big pressure ZPW21 ZPW23

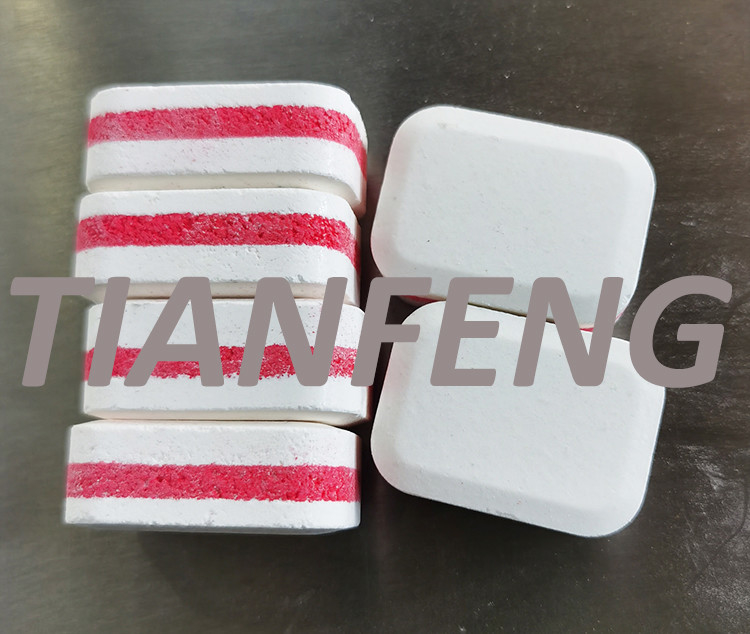

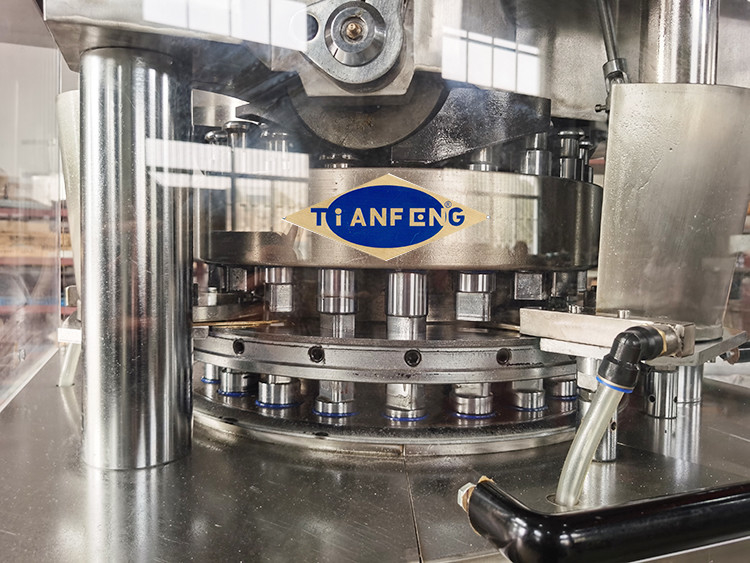

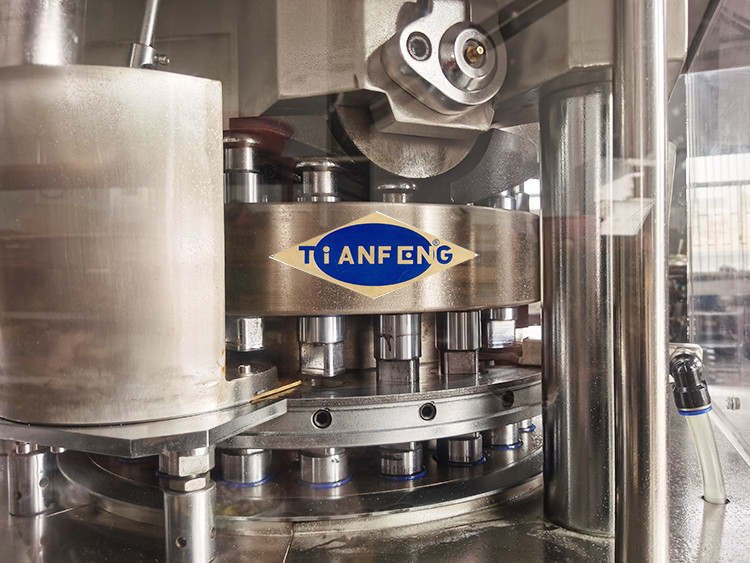

Based on ZP27 Rotary tablet press machine, our factory improved it. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.
Features
A. Machine meets GMP and made in stainless steel. The inner tablet press surface has been special treated, which could keep surface luster and avoid cross contamination.
B. Equipped with transparent window which could help to observe the status of pressing tablets. Transparent window could be fully opened, easy to clean and maintain.

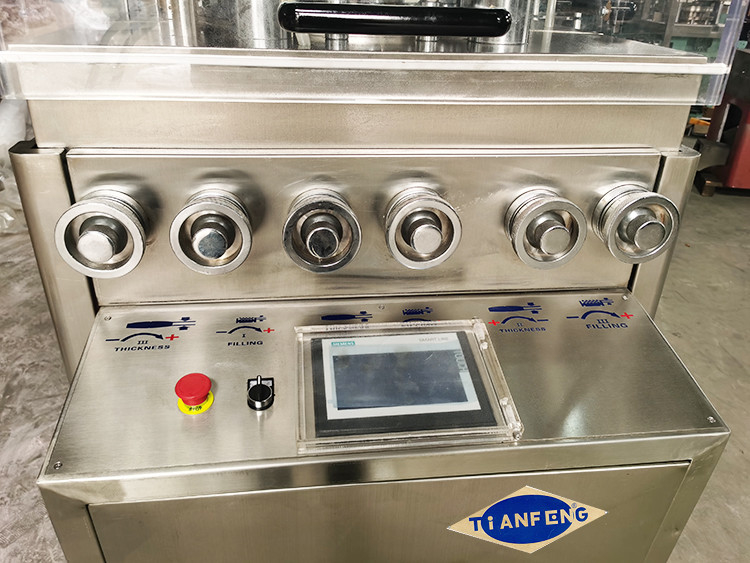

C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
E. Transmitting system is sealed in the oil box under the main machine, which works separately. No pollution and easy to send out heat and resist grinding.
F. Machine equipped with suction machine which could absorb the powder of working area.
Technical parameter of ZPW-21 Three Layer Press Machine
| Dies (sets) | 21 | 23 |
| Max. Pressure (KN) | 100 | 100 |
| Max. dia. of tablet (mm) | 45 | 45 |
| Max. Thickness of largest tablet (mm) | 12 | 12 |
| Max. Depth of fill (mm) | 25 | 25 |
| Max. production capacity(pcs/h) | 21000 | 22000 |
| Rotational diameter(mm) | 445 | 445 |
| Rotational speed of revolving table(r/min) | 10-25 | 10-25 |
| Diameter of middle mould (mm) | 45 | 45 |
| Highness of middle mould(mm) | 30 | 30 |
| Length of up and low punch pole (mm) | 32 | 32 |
| Length of the upper punch pole (mm) | 175 | 175 |
| Length of the lower punch pole(mm) | 180 | 180 |
| Overall dimensions(mm) | 1000*1250*1900 | 1000*1250*91900 |
| Net Weight (kg) | 3200 | 3200 |
| Motor model | YU132M4A | YU132M4A |
| Motor(KW) | 7.5 | 7.5 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW21 ZPW23 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
