Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPG43
Video
Video
Video

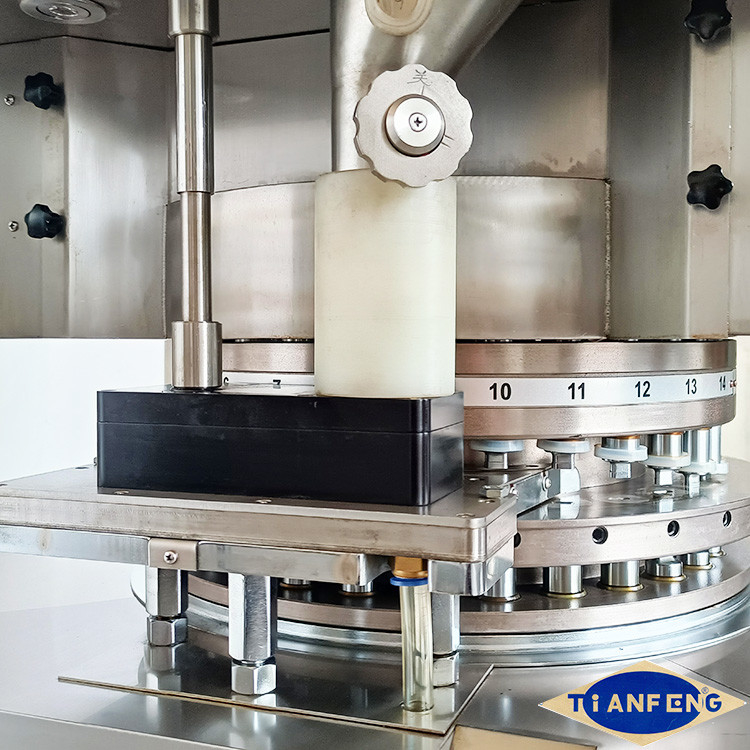

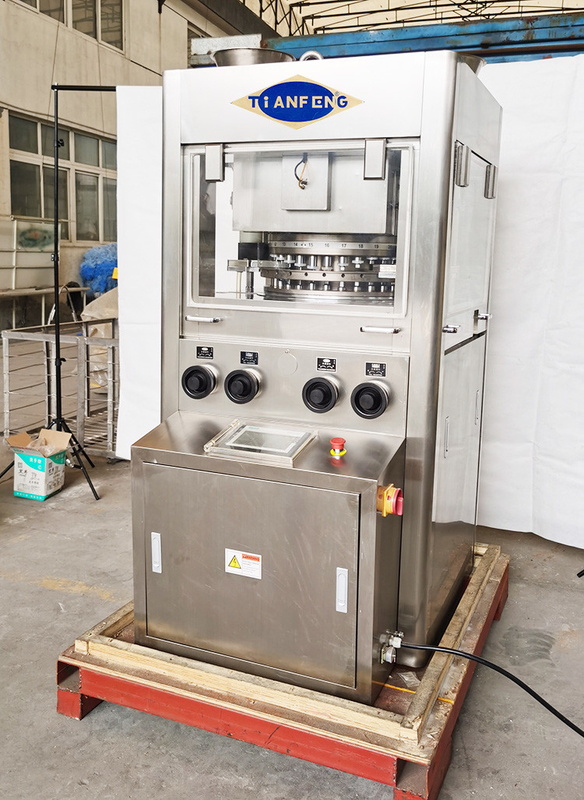

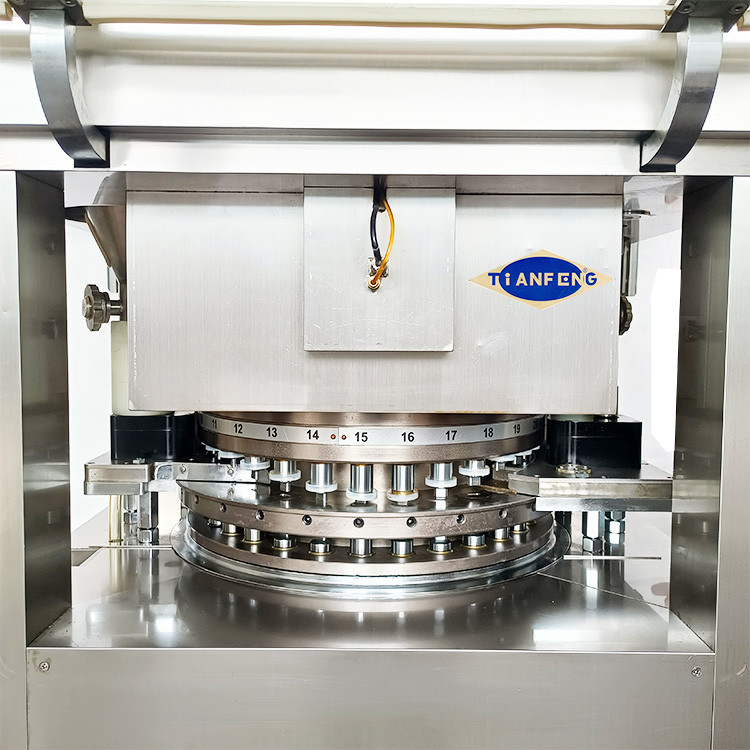

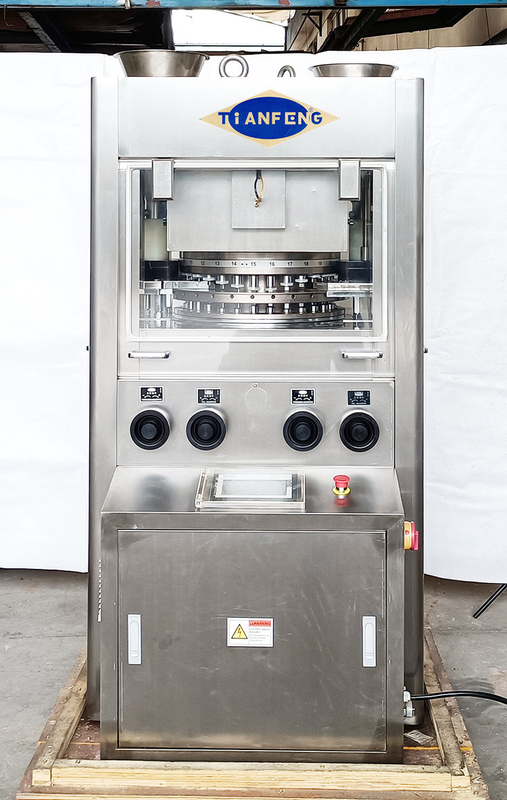

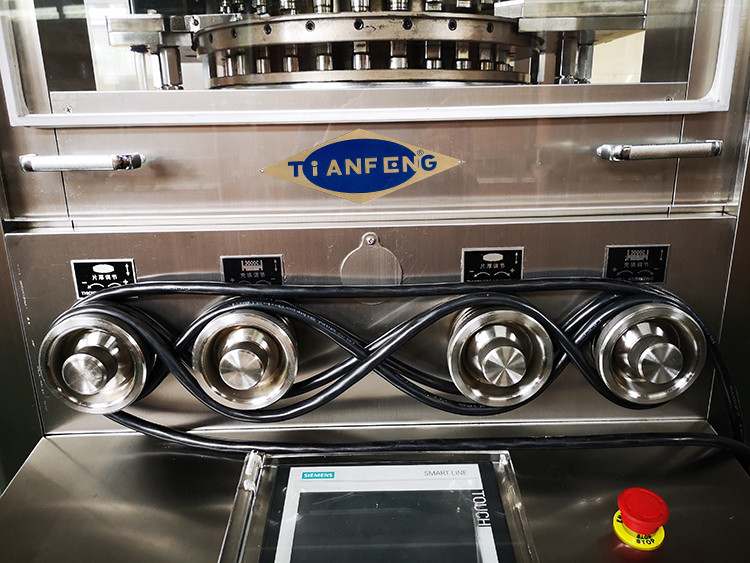

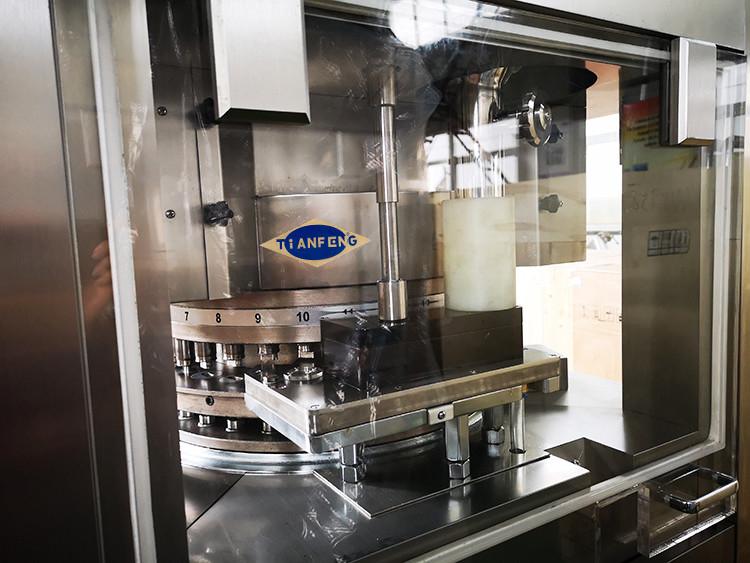

ZPG43 rotary tablet press is our new study European standard tooling rotary tablet press machine. It is a double-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets with different shapes, double color and impressed letters on both sides. It is mainly used in manufacturing piece prescription in pharmaceutical, chemical, foods, electronics industry.
Technique Parameters of ZPG43 Rotary Tablet Press Machine
| Model | ZPG43 |
| Tooling type | B tooling |
| Dies (sets) | 43 |
| Max. Pressure (KN) | 80 |
| Max. Dia. of tablet (mm) | 22 |
| Max. Filling Depth (mm) | 15 |
| Thickness of largest tablet (mm) | 6 |
| Diameter of up and down die punches(mm) | 19 |
| Diameter of middle punch (mm) | 22 |
| Turret speed (r/min) | 14-36 |
| Production capacity (pc/h) | 52000-190920 |
| Motor (KW) | 5.5 |
| Overall dimensions (mm) | 1240×980×1690 |
| Net weight (KG) |
1800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPG43 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
