Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29F-3 ZPW31F-3
Video
Video

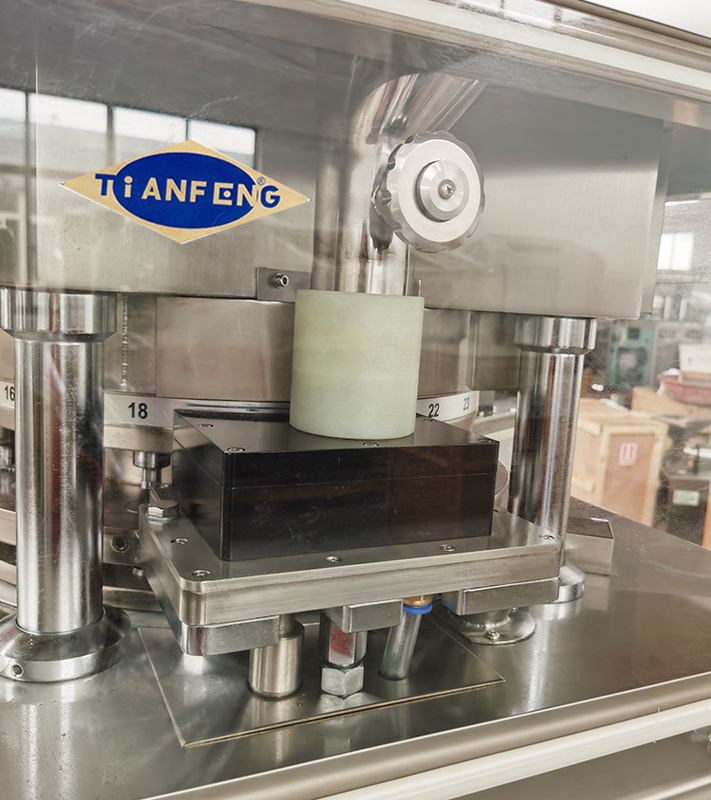

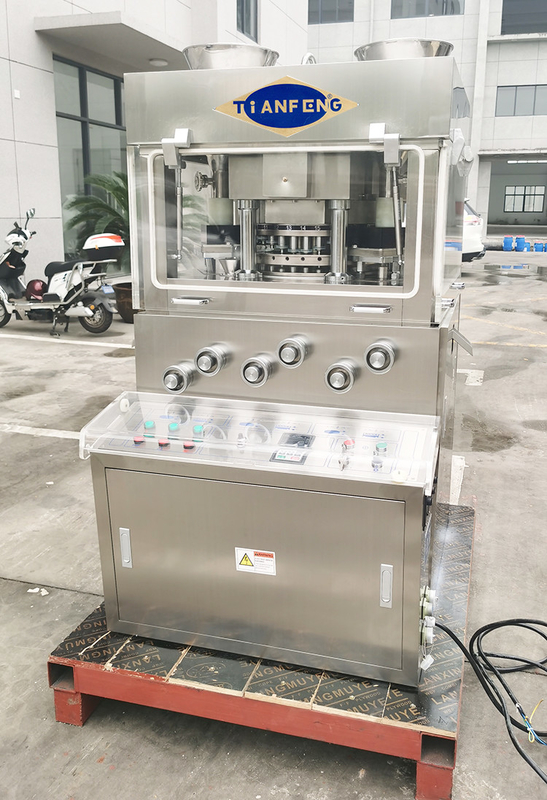

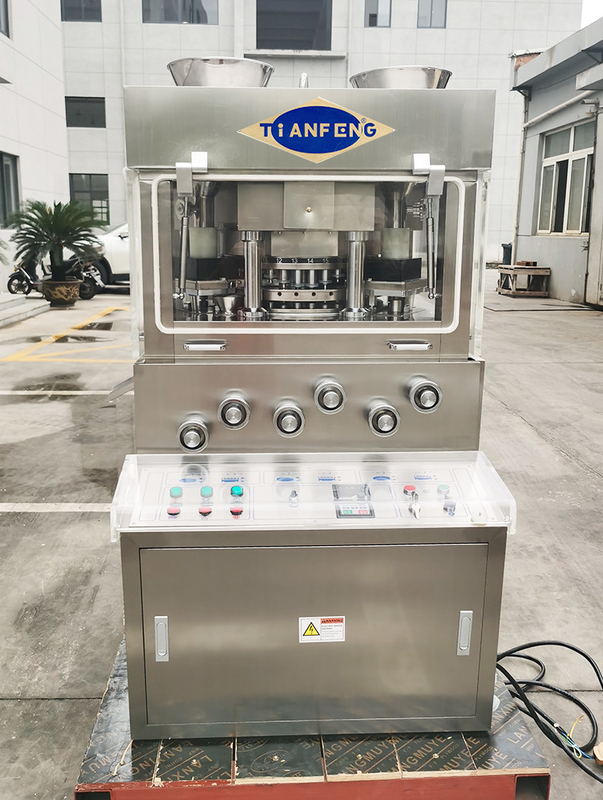

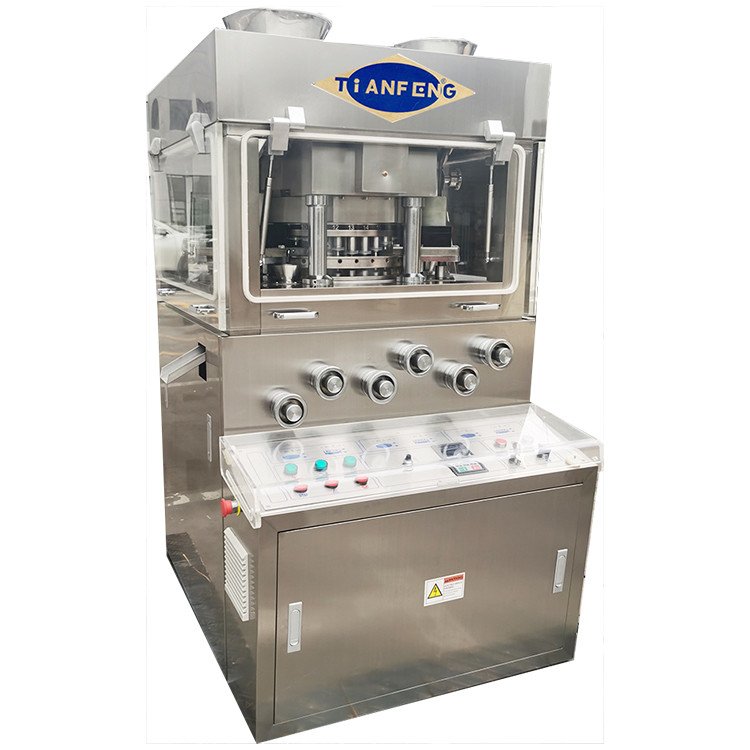

ZPW29F-3 ZPW31F-3 3 layer pill making Machine
This machine is a three-press type .continuous automatic tablet press for pressing granular raw materials into tablets .It is mainly used in pharmaceutical industry and also the chemical,food,electronic industries.
Produce all kinds of round tablets, irregular tablets ,double-layered and annular tablets.
The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel .The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the GMP requirement.
It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier.

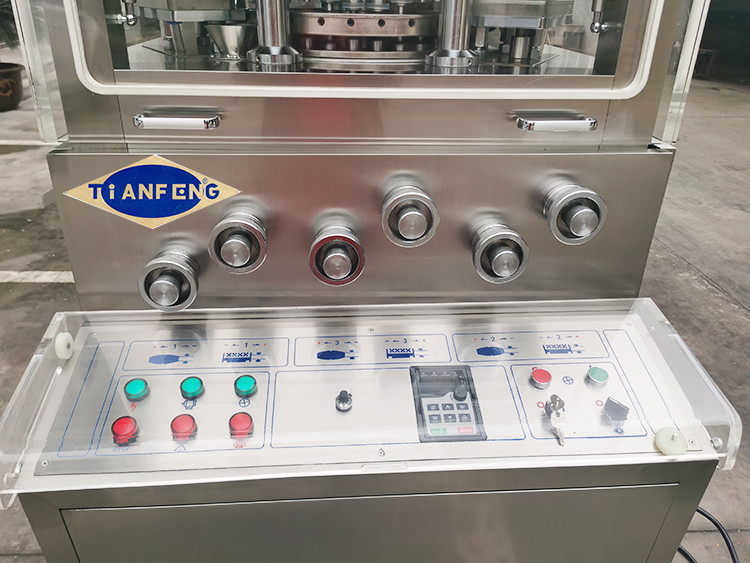

The lay-out of all the controllers and the operate parts is reasonable.
The speed adjustment of the driver is controlled by the frequency conversion device.
All the drive devices are located inside the machine so keep the machine clean.
A overload protection unit is included in the system to avoid the damage of the punches and apparatus ,when overload occurs, the machine stops automatically.
Main Feature:
1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;
2. The test machine and adjustment work can be completed without stopping the machine;
3. All controllers and operating parts are reasonably arranged and easy to operate;
4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.
5. 3 outputs, high capacity .
Technique Parameters of ZP35F-3 ZP31F-3 Rotary Tablet Press Machine
| Model | ZPW29F-3 | ZPW31F-3 |
| Dies (sets) | 31 | 35 |
| Max. Pressure (KN) | 100 | 100 |
| Max. Dia. of tablet (mm) | 22 | 13 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-30 | 14-30 |
| Production capacity (pc/h) 1 layer | 110000-156600 | 120000-167400 |
| 2 layer | 40000-52200 | 40000-55800 |
| 3 layer | 40000-52200 | 40000-55800 |
| Motor (KW) | 5.5 | 5.5 |
| Overall dimensions (mm) | 1240×980×1690 | 1240×980×1690 |
| Net weight (KG) | 1800 | 1800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped 3 layer tablet press machine ZPW29F-3 ZPW31F-3 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A: We have been specialized in tablet press and packing machine for more than 10 years,and until now have exported mahcines to more than 30 countries.
A:Sure ! We will do our best to teaching you how to use the machine.
A:Certainly,.We have engineers available to service overseas.
A: 1.Competitive price
2. Excellent technical support
3.Best service.
