Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-4
Video
Video
Video

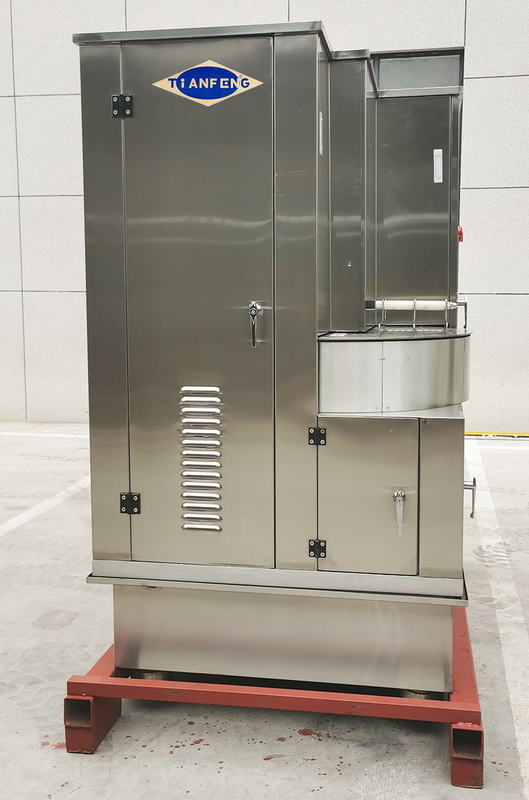

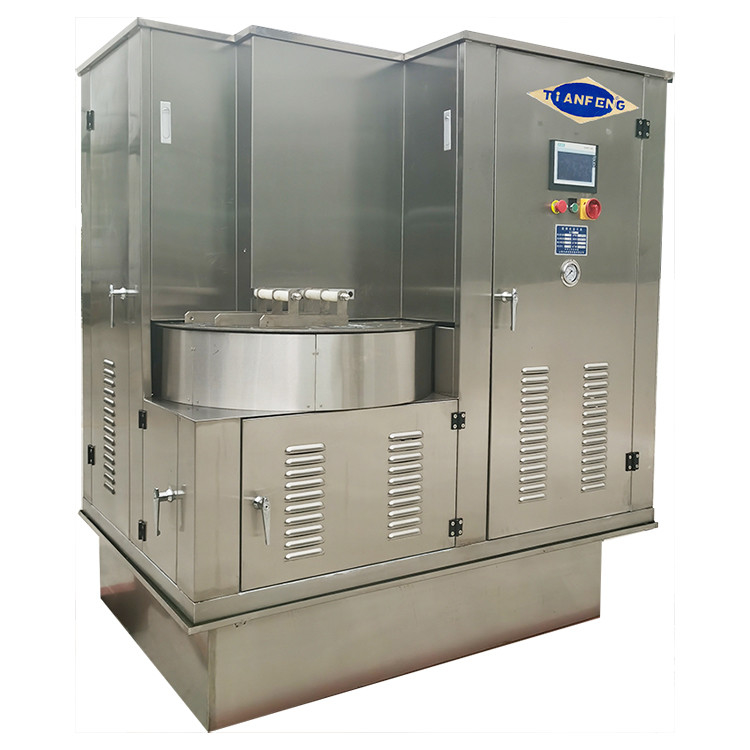

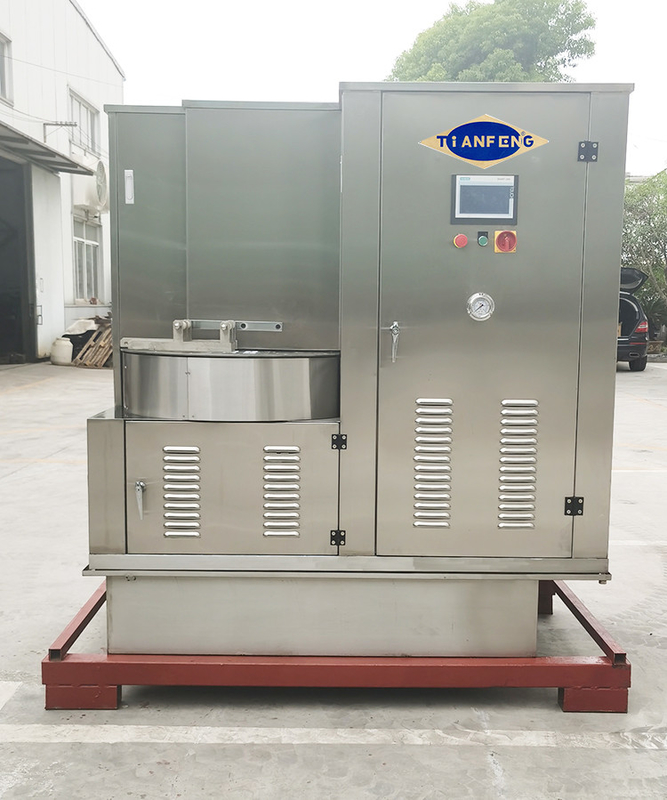

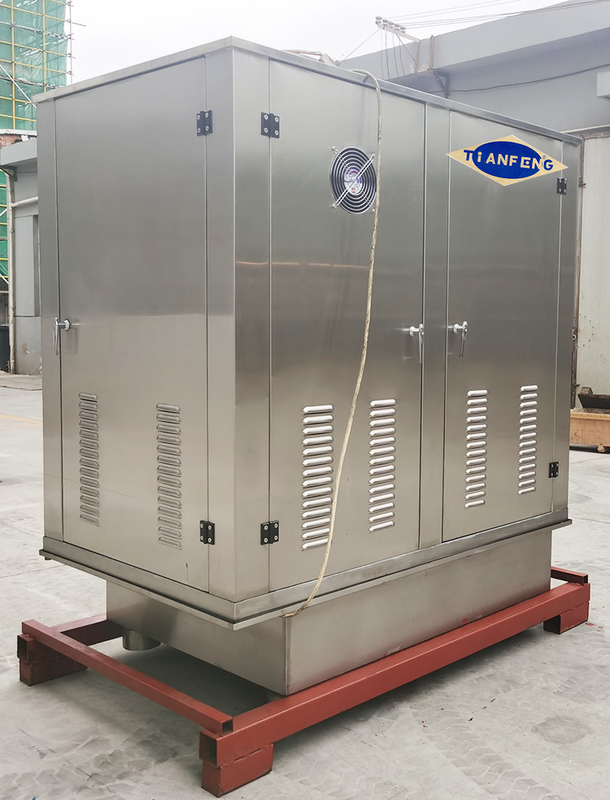

pharmaceutical pill press machine ZPW-4-4 ZPW-4-2 herbal cube making machine with one ordinary mold
Main application:
This machine is dedicated for manufacturing military and civilian hard stacks. The manufacturing process for hard stack is subdivided into five sections, biscuit forming, flour applying, mixing, pressing and packing. In the manufacturing course, biscuit compressor is the key device for pressing.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 3000 | 200 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped pharmaceutical pill press machine ZPW4-2 ZPW-4-4 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First ordinary mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also
provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
Q: Do you provide samples ? Is it free or charged ?
We can try your powder and send tablets samples for free.If you bear the ship cost.
