Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-4 ZPW-4-2

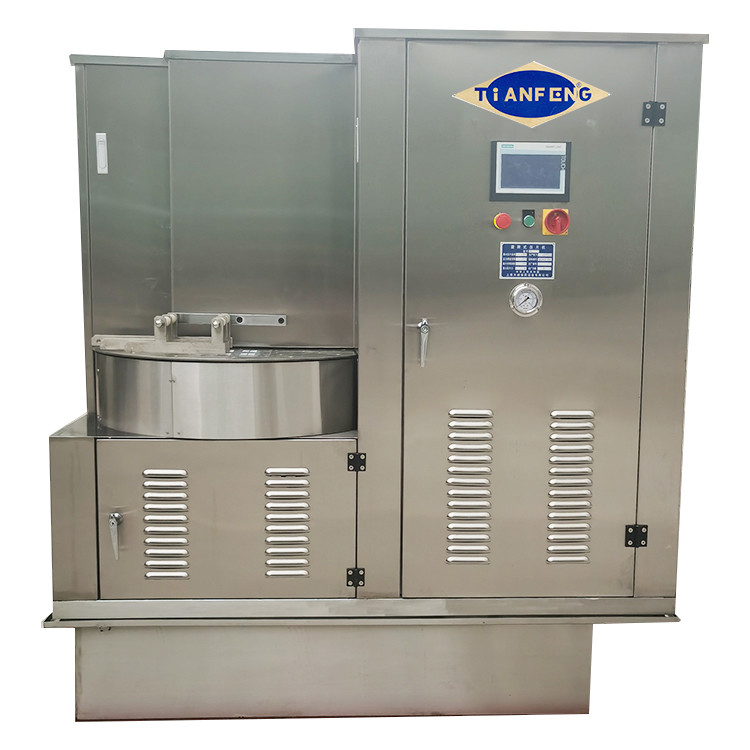

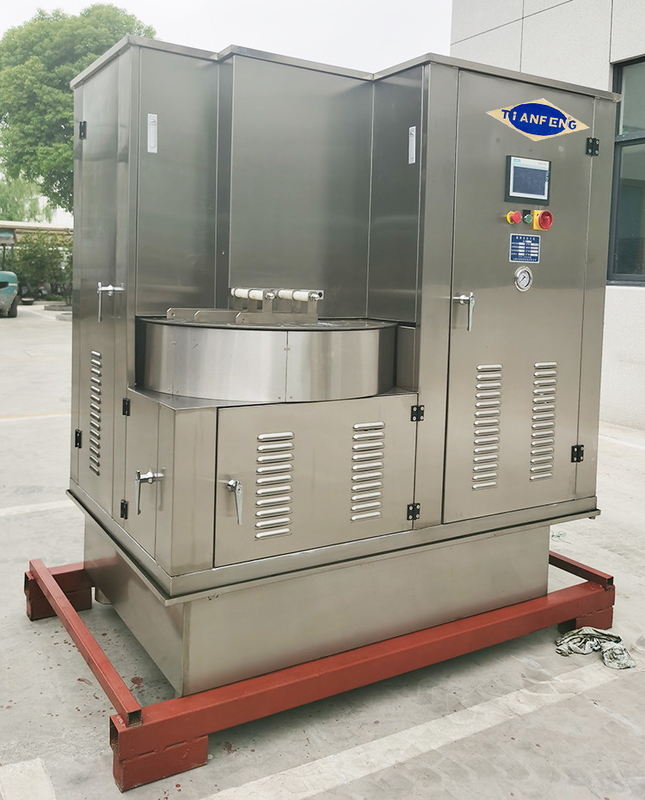

pharmaceutical pill press machine ZPW-4-4 ZPW-4-2 herbal cube making machine with one ordinary mold
Main application:
This machine is dedicated for manufacturing military and civilian hard stacks. The manufacturing process for hard stack is subdivided into five sections, biscuit forming, flour applying, mixing, pressing and packing. In the manufacturing course, biscuit compressor is the key device for pressing.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW-4-4 | ZPW-4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 2000 | 2500 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped pharmaceutical pill press machine ZPW4-2 ZPW-4-4 by sea.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:

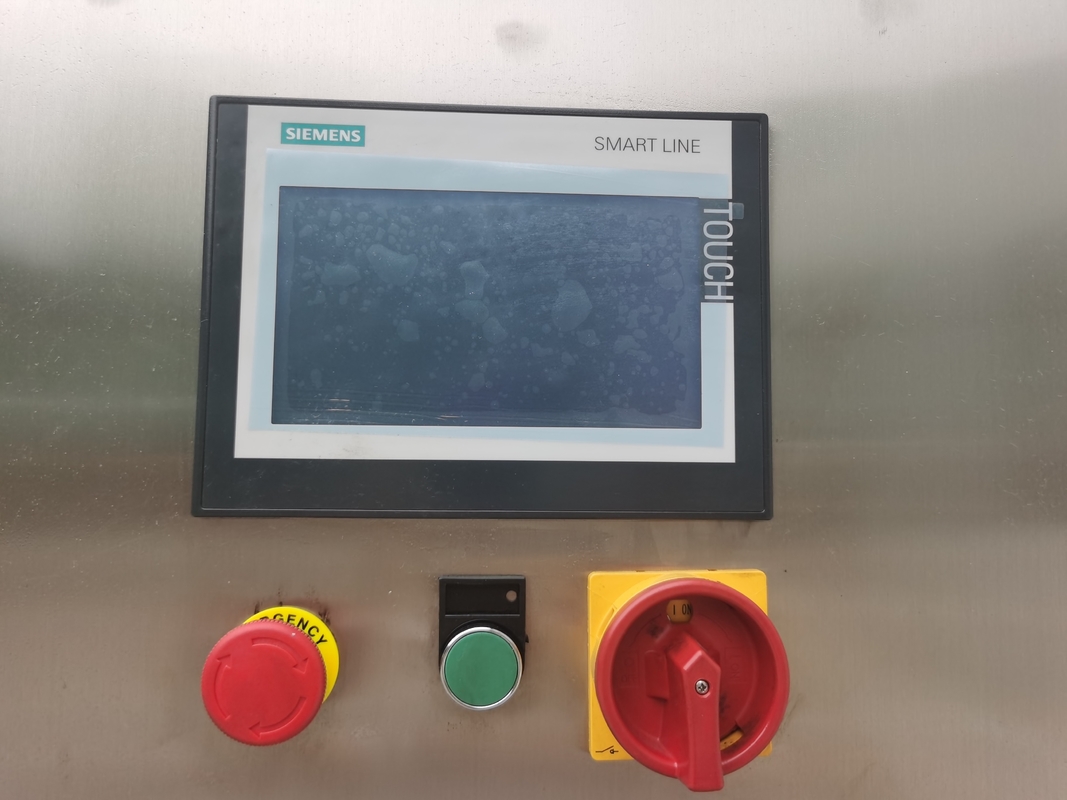

All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
