Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-2 ZPW-4-4
Video
Video
Video

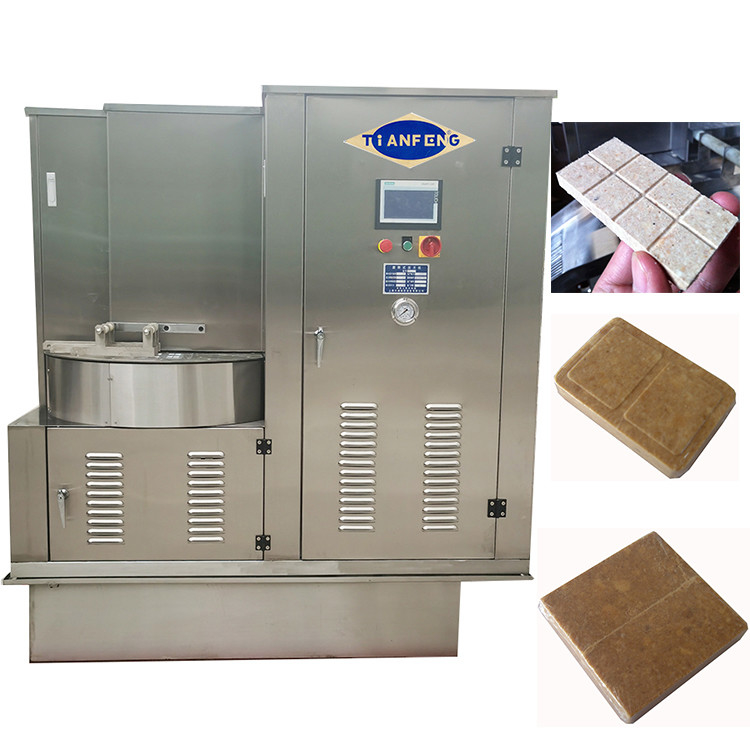

ZPW-4-4 rotary block press machine ZPW-4-2 tablet compression machine rotary tablet press is a type of food machinery, which is used to produce compressed biscuits for military and civilian use. Compressed biscuit production involves five main processes, that is, biscuit baking, powderizing, mixing, compressing and packaging. The rotary tablet press plays an important role in making compressed biscuits.
Feature:
This rotary tablet press is primarily composed of mechanical structure, hydraulic system, electric drive unit and electronic control unit. In addition, it is equipped with stainless steel hopper and other devices. Except material feeding, the machine performs other operations automatically. So, it can realize full automation if equipped with an automatic feeding device.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 3000 | 200 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped pharmaceutical pill press machine ZPW4-2 ZPW-4-4 by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
