Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-4 ZPW-4-2
Video
Video

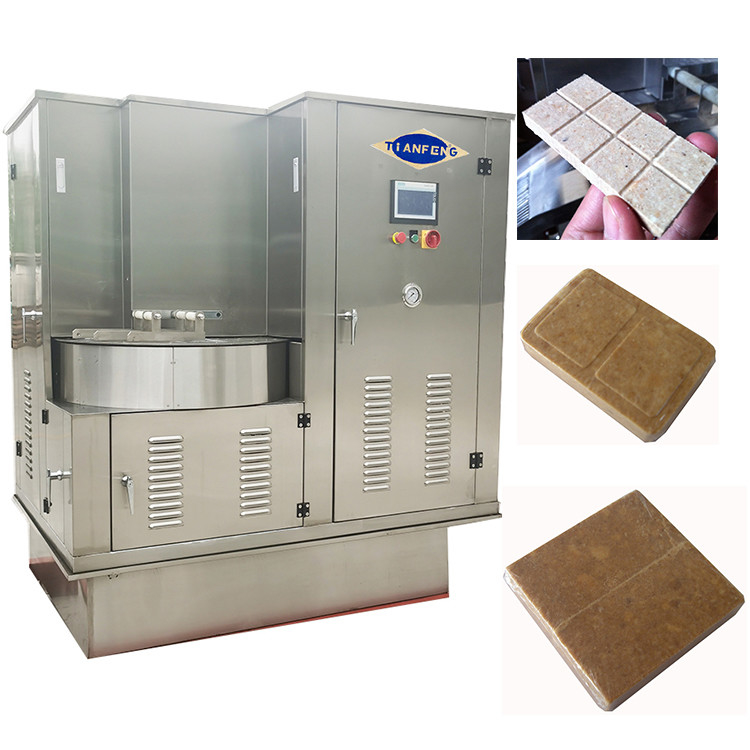

ZPW-4-4 Compressed Biscuit making machine food machinery 7680 pieces/hour
This rotary tablet press is a type of food machinery, which is used to produce compressed biscuits for military and civilian use. Compressed biscuit production involves five main processes, that is, biscuit baking, powderizing, mixing, compressing and packaging. The rotary tablet press plays an important role in making compressed biscuits.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW-4-4 | ZPW-4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 2000 | 2500 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped ZPW-4-4 Compressed Biscuit making machine food machinery 7680 pieces/hour by sea.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
