Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-2 ZPW-4-4

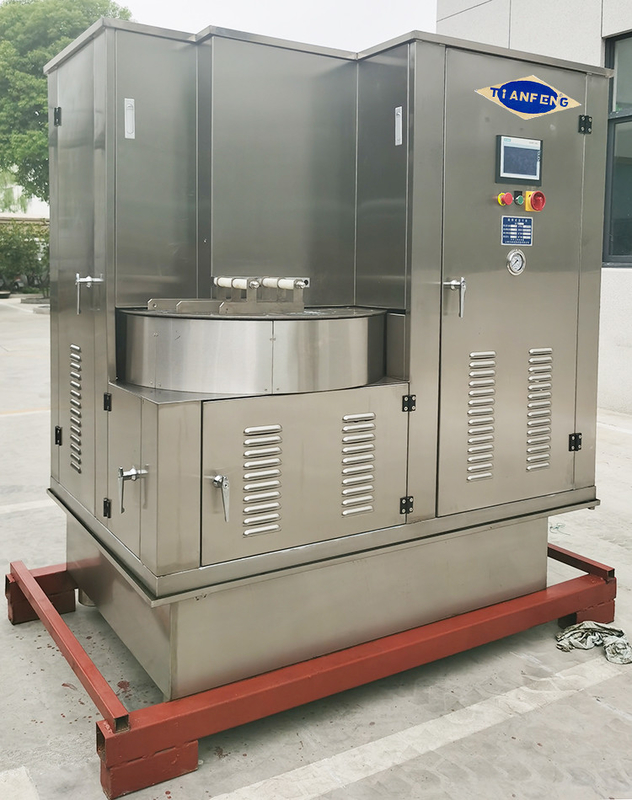

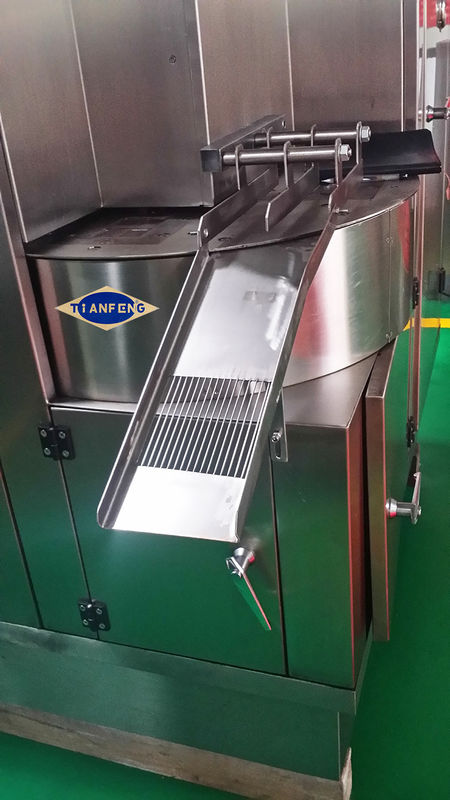

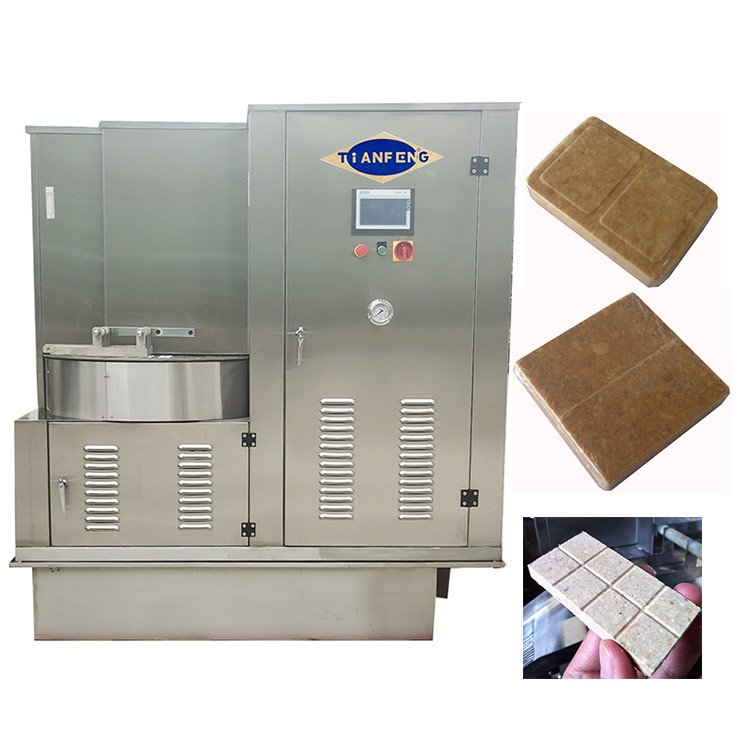

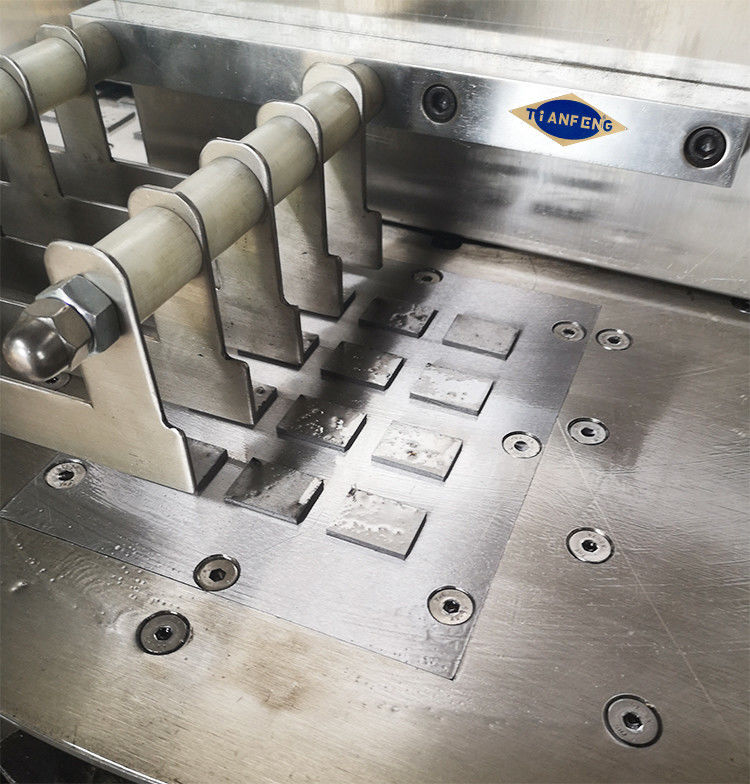

250 KN compact biscuits food making machine ZPW-4-4 Pill Tablet Press Machine

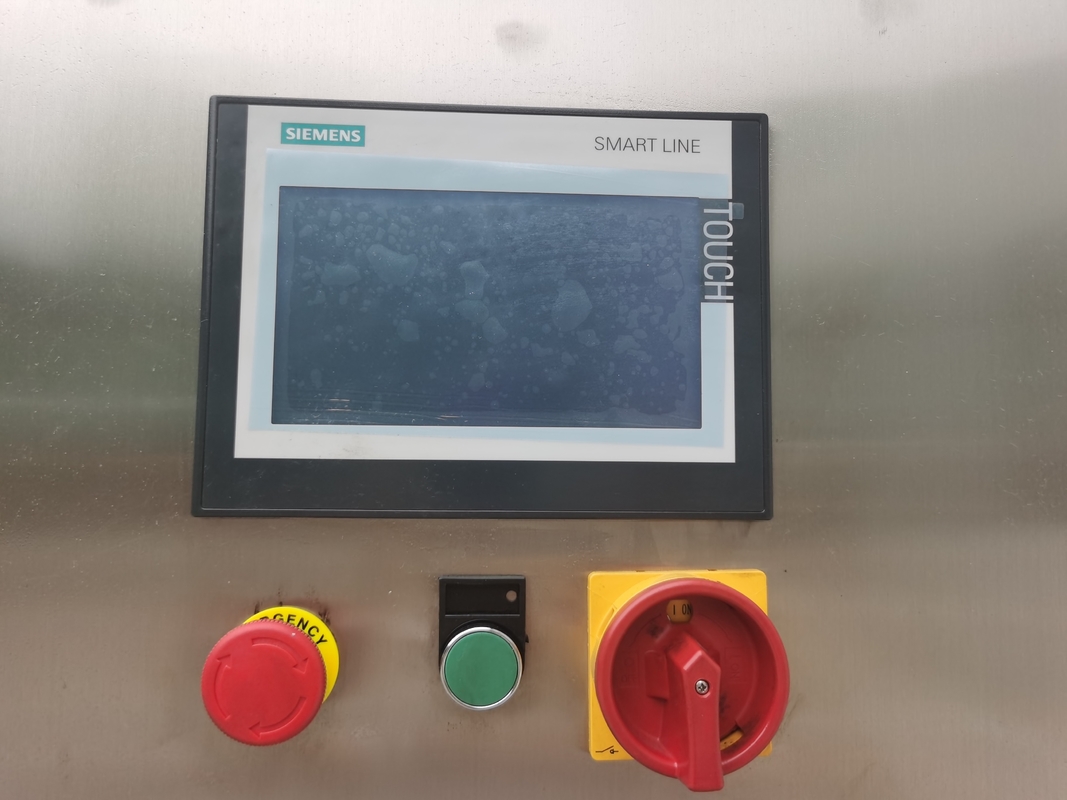

Shanghai Tianfeng provides food machinery for the manufacture of compact biscuits, also called fortified biscuits, hard tacks or ship biscuits. The biscuit making machine is designed with electrical programmable controller, easy operations, pneumatic/hydraulic power mechanism, photoelectric tracking device, stainless-steel machine housing and high production capacity.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 3000 | 200 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped 250 KN compact biscuits food making machine ZPW-4-4 Pill Tablet Press Machine by sea.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
