Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE and ISO
Model Number:
ZPW-4-2 ZPW-4-4
Video
Video
Video

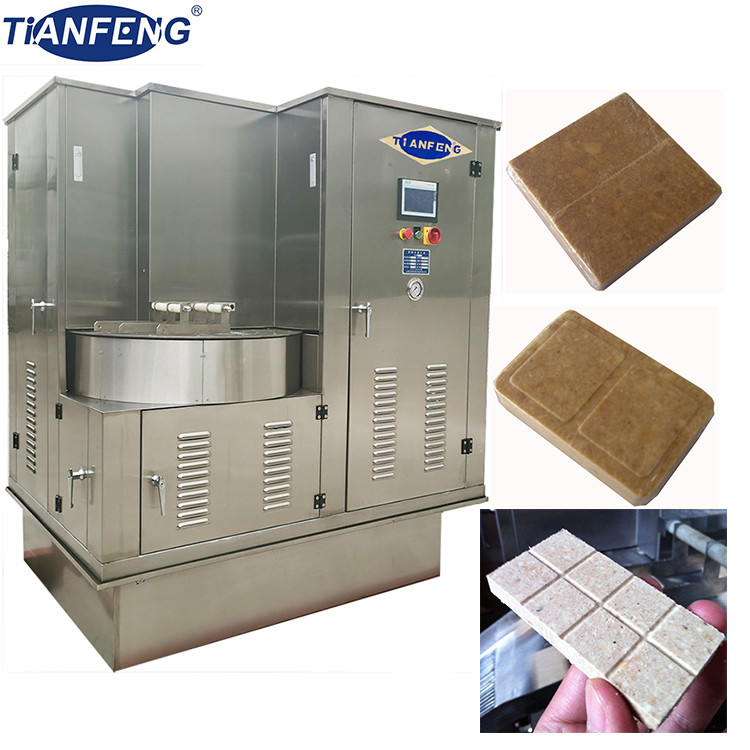

Compressed Biscuit processing machine ZPW-4-4 compressed biscuit machine
ZPW-4-4 rotary tablet press is primarily composed of mechanical structure, hydraulic system, electric drive unit and electronic control unit. In addition, it is equipped with stainless steel hopper and other devices. Except material feeding, the machine performs other operations automatically. So, it can realize full automation if equipped with an automatic feeding device.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW4-4 | ZPW4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 3000 | 2000 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped pharmaceutical pill press machine ZPW4-2 ZPW-4-4 by sea.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A:Certainly,.We have engineers available to service overseas.
