Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-4 ZPW-4-2
Video
Video

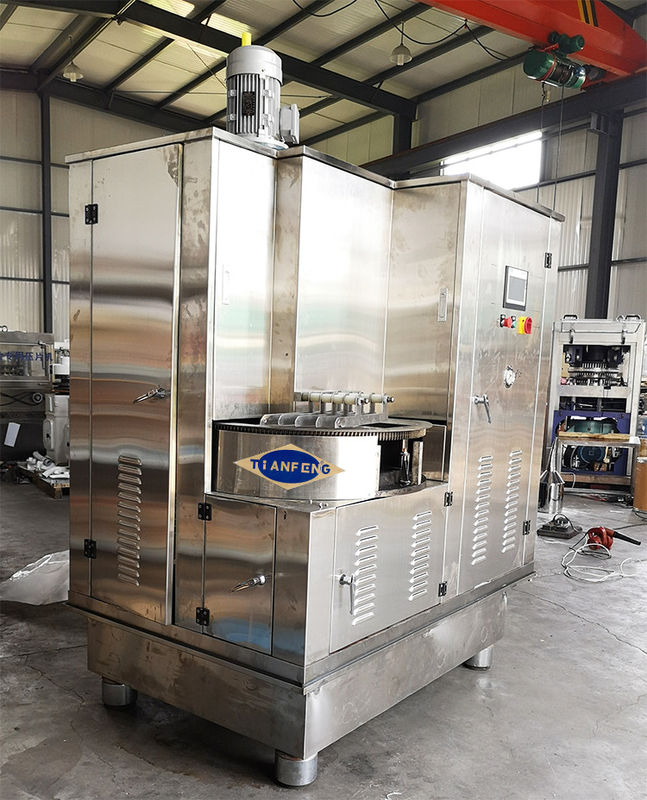

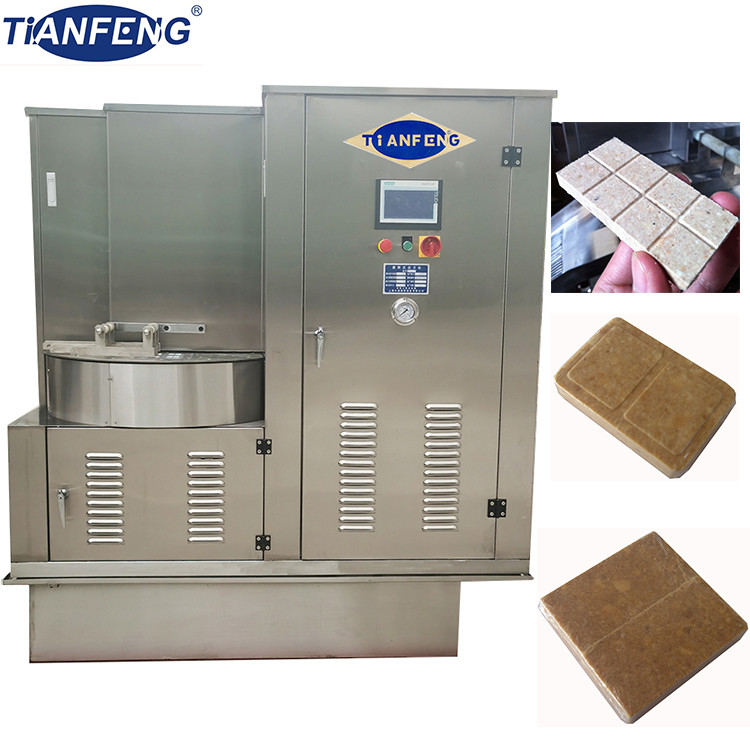

ZPW-4-4 ZPW-4-2 food making machine ZPW-4-2 compressed biscuit machine
Compressed biscuit machine recycles broken biscuits. The machine is easily operated due to photoelectric tracking, and driven by pneumatic and hydraulic system. It gets biscuit scraps as raw material, mixing with other nutritious ingredients and flavors, then make them compressed to pieces.
Technical Parameters of Rotary Tablet Press
| TYPE | ZPW-4-4 | ZPW-4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 2000 | 2500 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
