Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW-4-4 ZPW-4-2
Video
Video

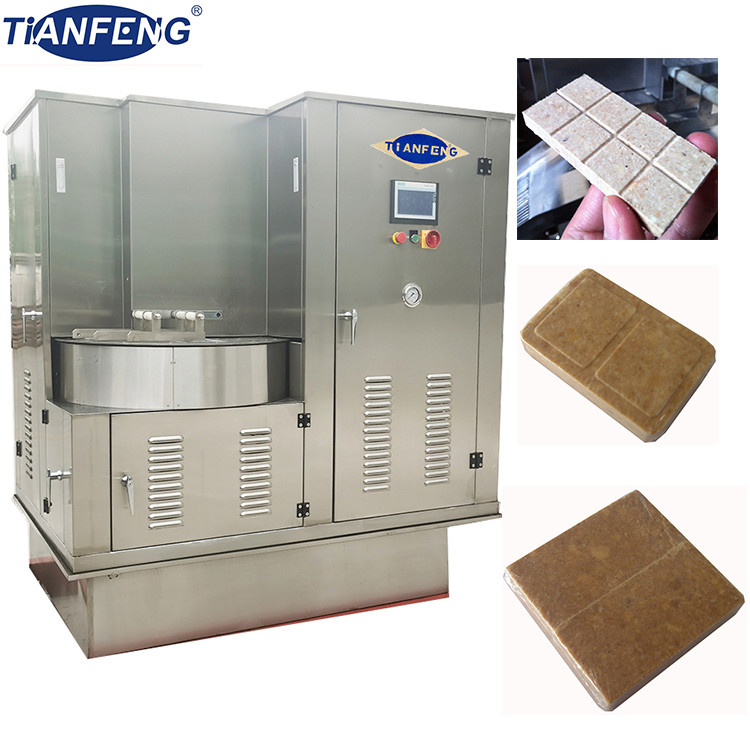

Compressed biscuit machine recycles broken biscuits. The machine is easily operated due to photoelectric tracking, and driven by pneumatic and hydraulic system. It gets biscuit scraps as raw material, mixing with other nutritious ingredients and flavors, then make them compressed to pieces.
The compressed biscuit is welcomed by the hikers, soldiers, travelers and so on. That's why our compressed biscuit machine is so popular in many countries.
Compressed Biscuit Line mainly includes Soft Biscuit Line, Crusher, Compressed Biscuit Machine, and Vacuum Packing Machine.
1. Manufacture Process:
Dough Mixing→Soft Biscuit Processing→Crushing→Mixing→Compressing →Packing
Technical Parameters of ZPW-4-4 Rotary Tablet Press
| TYPE | ZPW-4-4 | ZPW-4-2 |
| Max. Compression Pressure | 180-250 | 180-250 |
| Max. Dia. of Tablet(mm) | According to customer’s requirement | According to customer’s requirement |
| Max. Filling Depth (mm) | 40 (Adjustable) | 40 (Adjustable) |
| Max. Thickness of Tablet(mm) | 10-30 | 10-30 |
| Maximum Working Diameter (mm) | 1030 | 750 |
| Turret Speed(r/min) | 7 | 8 |
| Production Capacity(pc/h) | 6720 | 3840 |
| Motor(Kw) | 7.5-11KW | 7KW |
| Overall Size(mm) | 1750*1200*1810 | 1240*920*1710 |
| Net Weight(Kg) | 2000 | 2500 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
