Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31

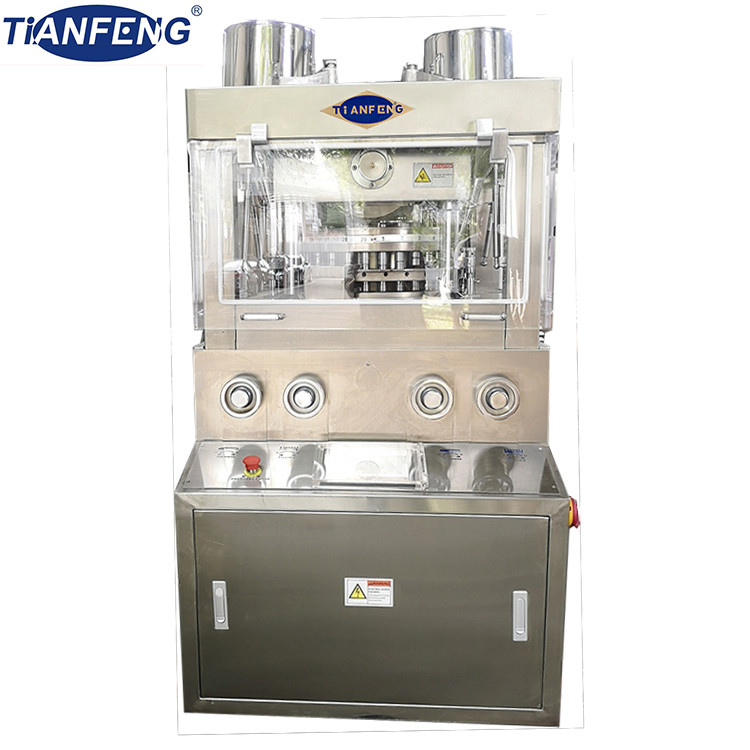

ZPW31 ZPW29 Rotary Tablet Press Machine (Rotary Pill Press) is used to procue round or other shape tablets, such as ringlike shape tabelts.
Double-pressing type, outputting tablets from both sides, nonstandard die.
Capable of pressing the particle raw material into larger diameter round tablets and custom shape tablets of various sizes.
It has double-pressing function, i.e., pre-pressing and main-pressing, the tablet quality will be improved.
Hand wheel adjusting mechanism with digital display, accurate and flexible.
Utilize the variable frequency stepless speed control device, easy to operate, safe and reliable.
Equipped with overload protection device. The machine will stop automatically when the overpressure happens.
The enclosing shield is fully closed, made of stainless steel. The internal tablet surface is made of stainless steel. All parts contacting medicine are made of stainless steel material or surface treated, free of toxicity, corrosion resistant.
The rotary tablet surface is treated specially, capable of keeping the surface finish and avoiding the cross pollution, compliant with GMP requirements.
The four sides of tablet pressing chamber are made of transparent organic glass, and can be opened completely. It is easy to clean and maintain. The secure lighting is equipped inside of the chamber, capable of watching the tablet pressing conditions clearly.
Technique Parameters of ZPW29 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) | 48000-125000 | 52000-135000 |
| Motor (KW) | 3 | 3 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 |
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold for free, discount if more order. Send one stainless steel dust collector for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
Send your inquiry directly to us
