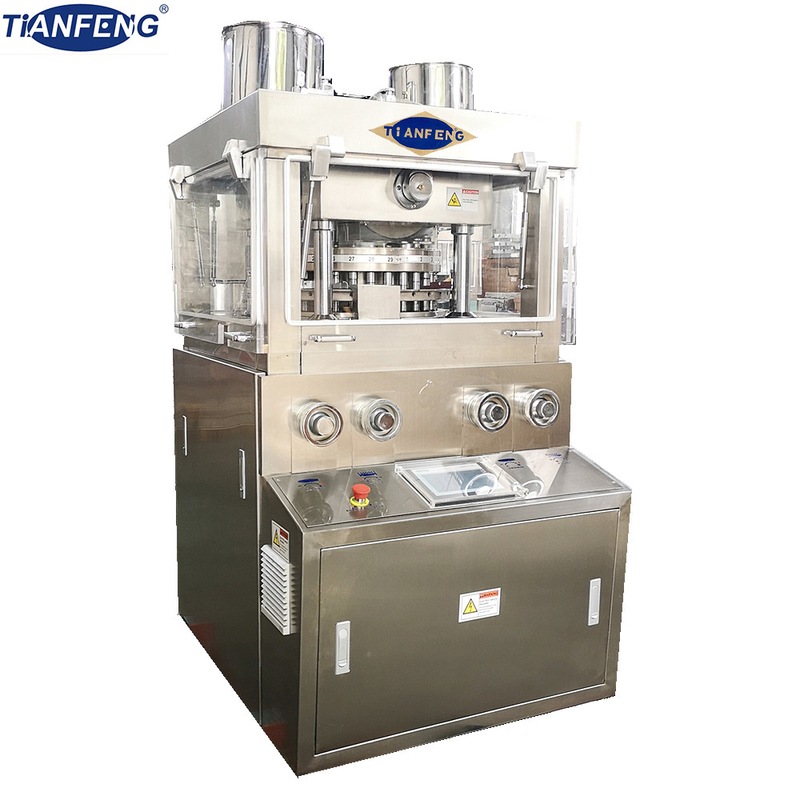

5.5KW Pharmaceutical disinfectant Pill Press Machine ZPW29 ZPW31 With PLC Touch Screen
Main Feature:
1. The speed is variable frequency speed regulation, which can be adjusted arbitrarily;
2. The test machine and adjustment work can be completed without stopping the machine;
3. All controllers and operating parts are reasonably arranged and easy to operate;
4. Stable rotation, stable performance, safe and accurate, suitable for pressing all kinds of tablets.
Technique Parameters of ZPW29 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) | 48000-125000 | 52000-135000 |
| Motor (KW) | 3 | 3 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped special tablet press machine ZPW29 ZPW31 by sea
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
