Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31
Video
Video

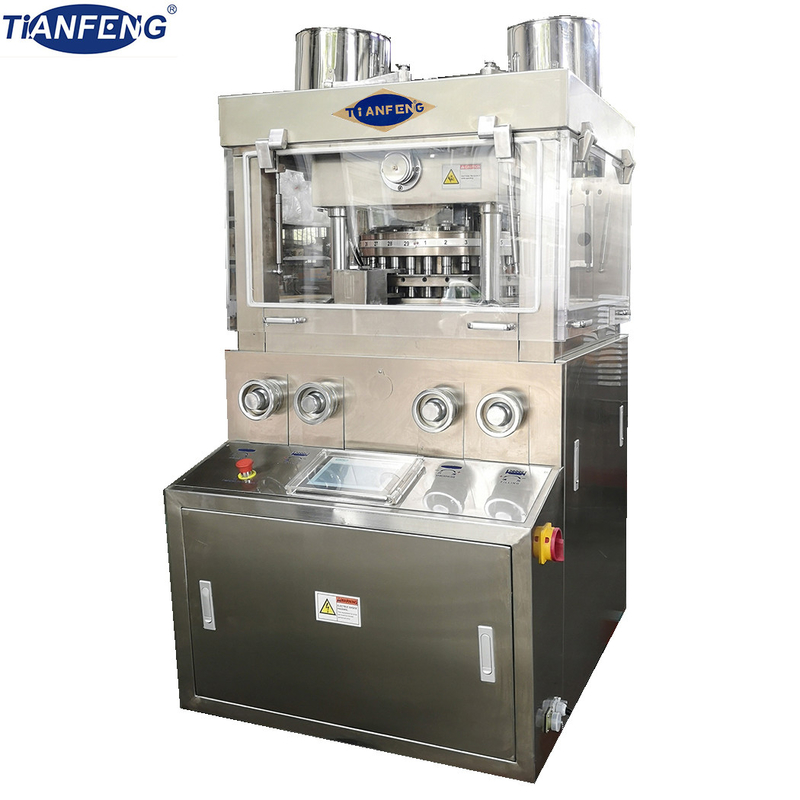

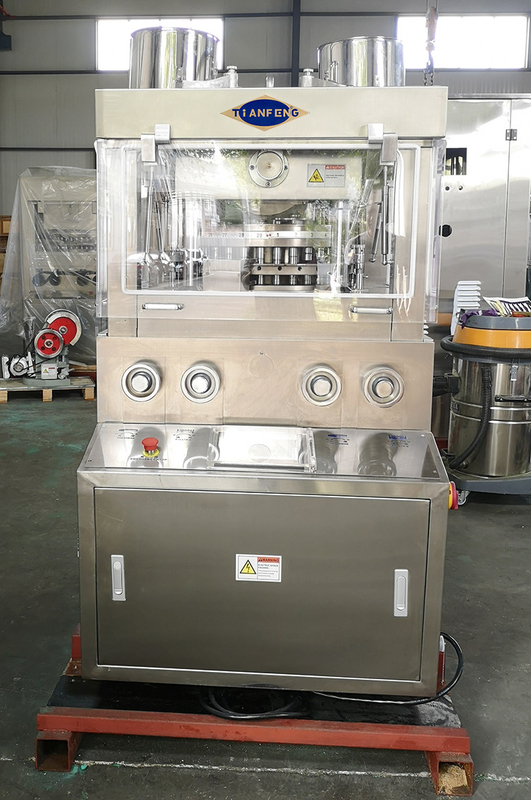

ZPW29 ZPW31 Automatic Pharmaceutical Pill Press with PLC Touch Screen 150000 Pcs/Hour

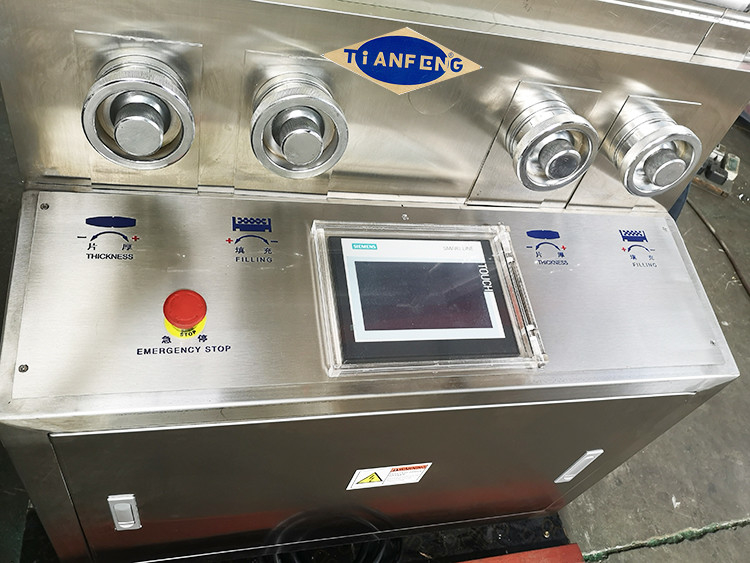

All our Rotary Tablet Presses are modern, solidly engineered machines with reliable components and dependable motors. Most have stainless steel parts and clear, all-round turret shields for safety and hygiene. Some have special features like intelligent, touch screen digital display controls, pressure overload protection, a safety cut-off button or other advanced safety features. Whether you are looking for ease of use or sheer production capacity, there is a Rotary Tablet Press in our range to meet your needs.
Technique Parameters of ZPW29 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets) | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) | 48000-125000 | 52000-135000 |
| Motor (KW) | 3 | 3 |
| Overall dimensions (mm) | 1230×950×1670 | 1230×950×1670 |
| Net weight (KG) | 1700 | 1700 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped ZPW29 ZPW31 Automatic Pharmaceutical Pill Press with PLC Touch Screen by sea.
