Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31

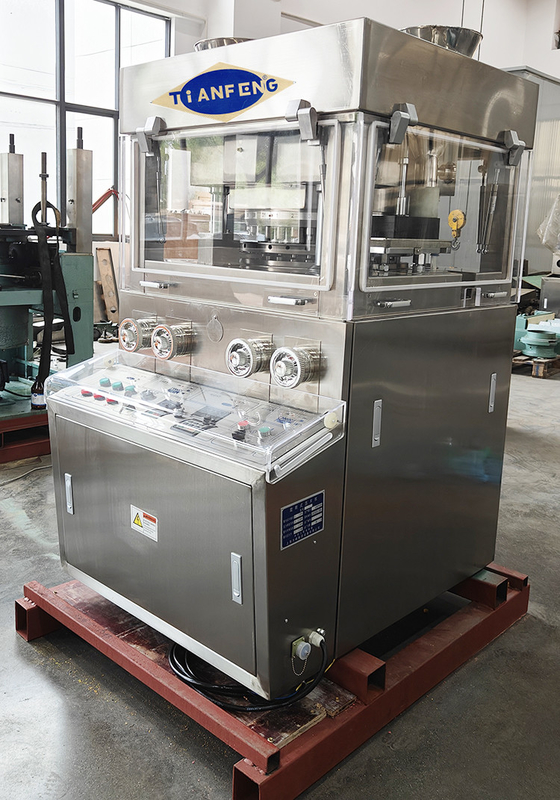

ZPW31 Double Layer Rotary Type Pill Tablet Press Machine 60000 Pieces/Hour With 2 Forced Feeders
ZPW31 ZPW29 double layer Tablet Press Machine
A tablet press(also known as a tablet pressing machine) is a mechanical device that works to compressing powder or granule into tablets and pills. The tablet pressing machine can produce tablets of various materials, including pharmaceuticals, nutraceuticals, cleaning products, industrial pellets, and cosmetics. To form a tablet, the granulated powder must be measured into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to compress the powder together.
Main Feature of Tablet Press Machine:
1. Double-press type, continuously automatic rotary tablet press
2. The machine is compatible with the GMP requirement. 304 Stainless steel or 316 stainless steel
3. Large power and pressure,Running smoothly
4. Overload protection unit
5. Frequency conversion device
6. Optuinal touch screen, easy to realize man-machine dialogue
7. Optional centralized lubrication system
Technique Parameters of ZPW29 ZPW31 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets)29 | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) 1 layer | 80000-125000 | 90000-135000 |
| 2 layer | 40000-62500 | 45000-67500 |
| Motor (KW) | 5.5 | 5.5 |
| Overall dimensions (mm) | 1240×980×1690 | 1240×980×1690 |
| Net weight (KG) | 1800 |
1800 |
Tablet Press Machine is a double-press type .continuous automatic tablet press for pressing granular raw materials into tablets .It is mainly used in pharmaceutical industry and also the chemical,food,electronic industries.

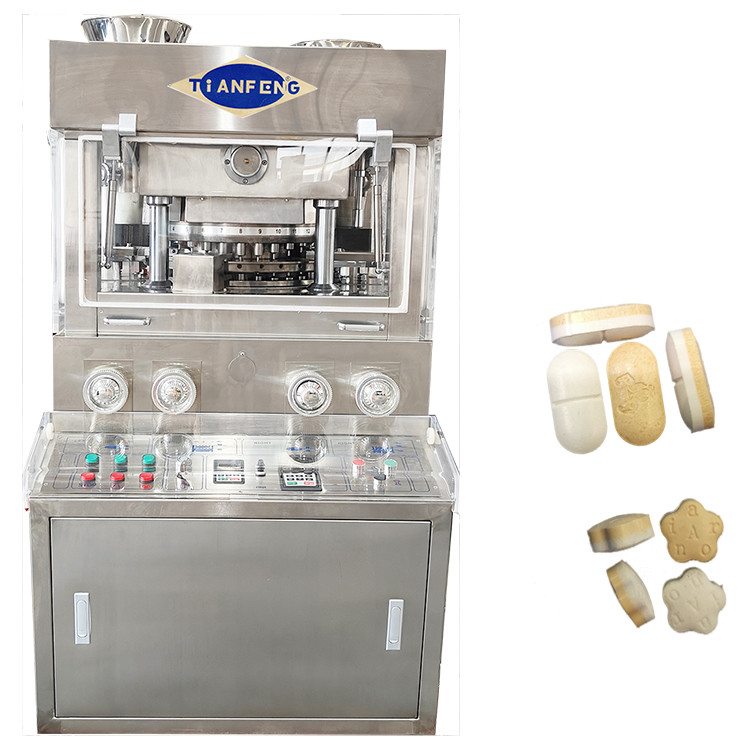

Produce all kinds of round tablets, irregular tablets ,double-layered and annular tablets.

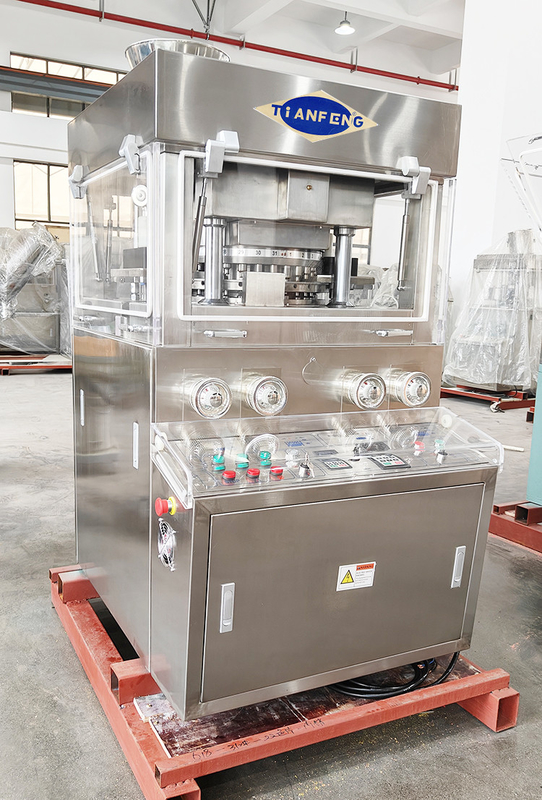

The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel .The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the GMP requirement.

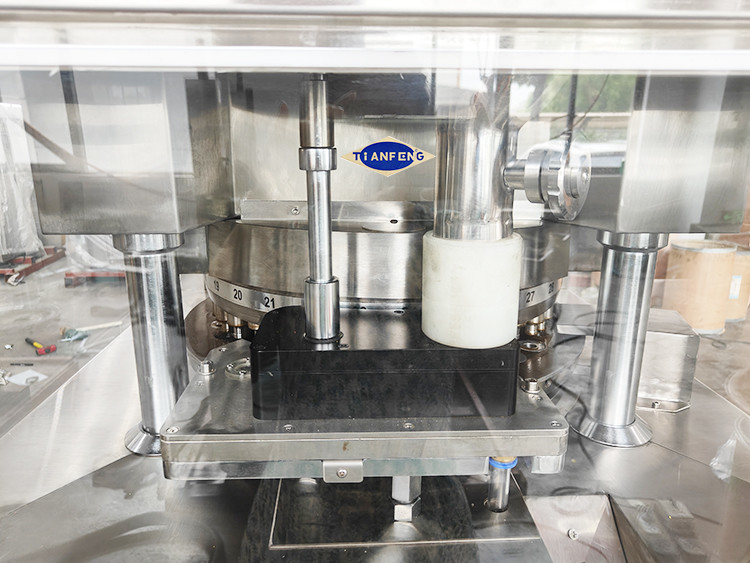

It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier.

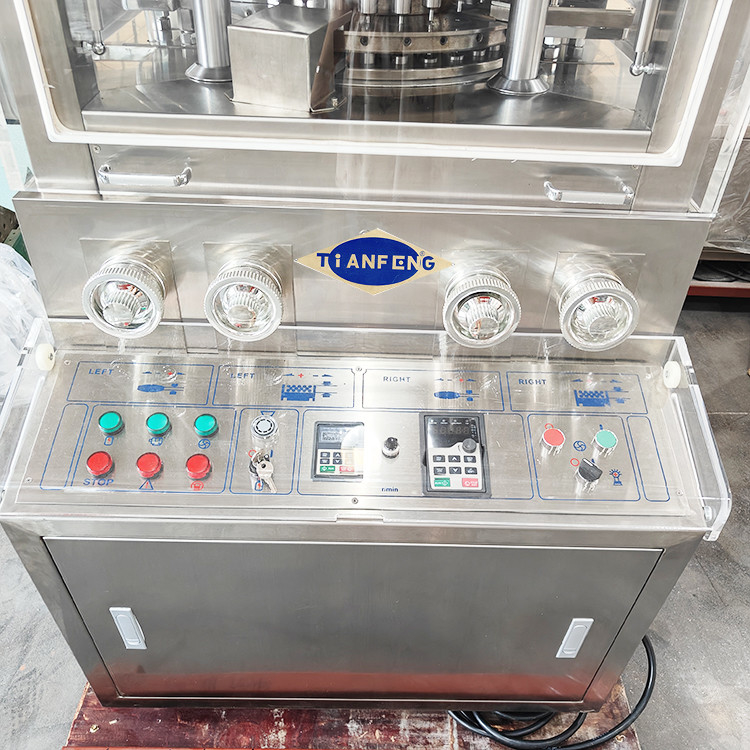

The lay-out of all the controllers and the operate parts is reasonable.
The speed adjustment of the driver is controlled by the frequency conversion device.
All the drive devices are located inside the machine so keep the machine clean.
A overload protection unit is included in the system to avoid the damage of the punches and apparatus ,when overload occurs, the machine stops automatically.
Tablet Press Machine Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use good quality electric elements.
4. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
5. The warranty time is one year:Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
6. Beside the warranty days, we continue to provide life-long maintenance services.
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
