Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31

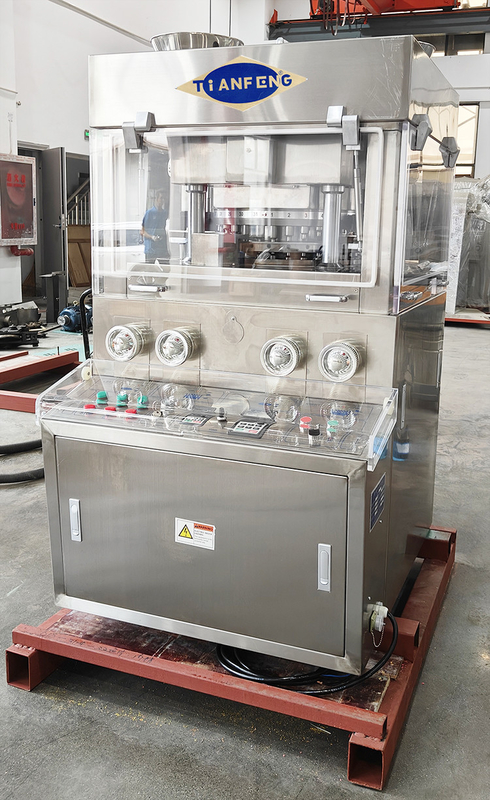

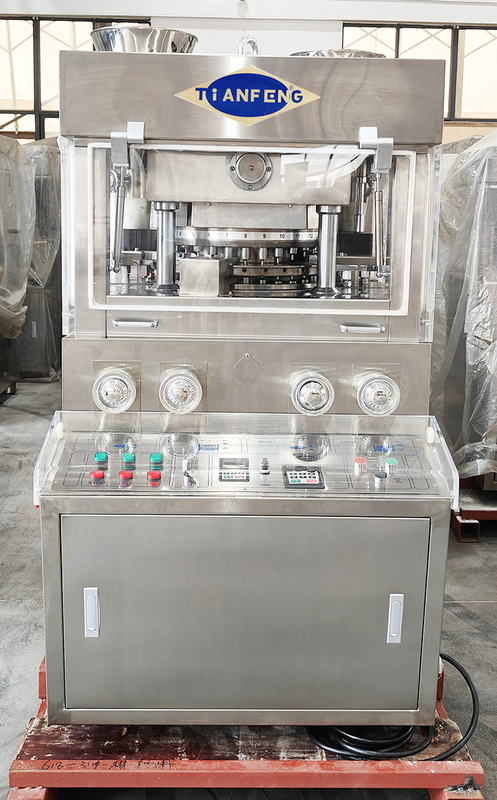

High Speed double layer Rotaty Tablet Press Machine
Main application

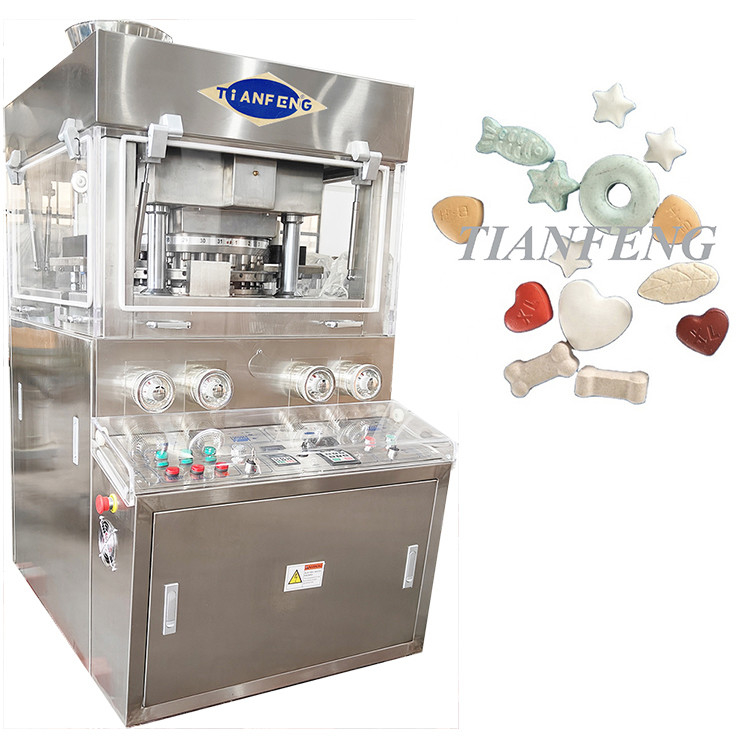

The rotaty tablet press machine is designed and manufactured in accordance with GMP, used to make granular raw materials into powder. The most prominent advantage of this tablet press is that it is fully closed to prevent dust and pollution. In addition to making round tablets, it can also make special shaped tablets, double-layer tablets and ring-shaped tablets. During the operation, the noise is low and the pressure is high, the machine will stop in case of overpressure to avoid damage to it.
Main features
1. The peripheral housing is fully closed. It is made of stainless steel. The internal table surface is made of stainless steel to maintain luster on the surface and avoid cross contamination, conforming to GMP requirements.

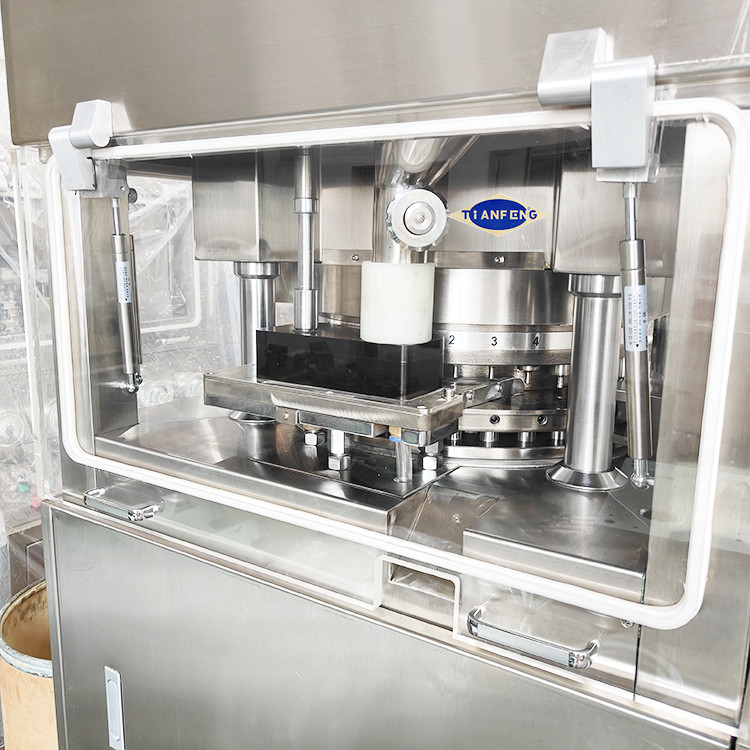

2. The transparent protective covers enable the machine operation atatus to be clearly observed. In addtion, they can be opened to make cleaning and maintenance easy.
3. Stepless speed adjustment is adopted to freely control the rotation speed.

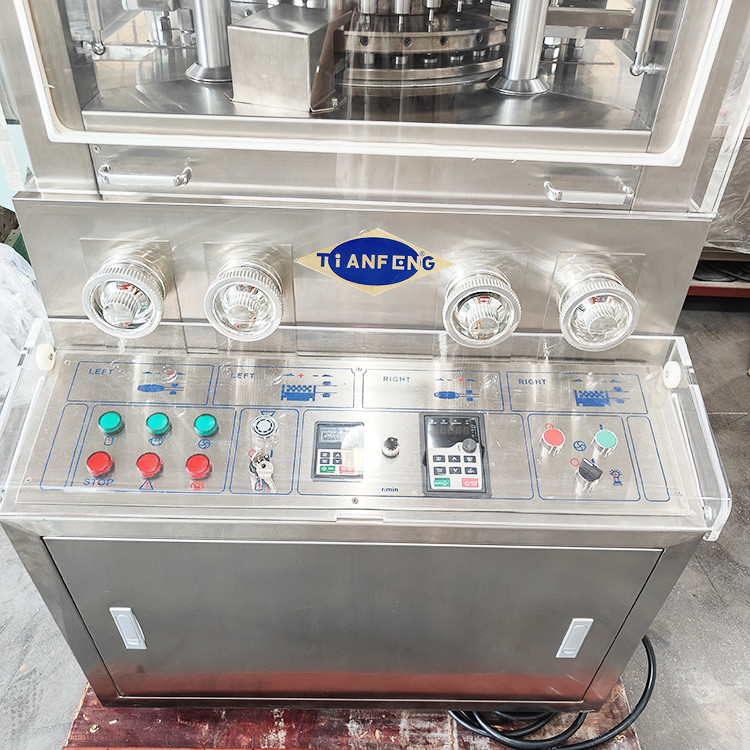

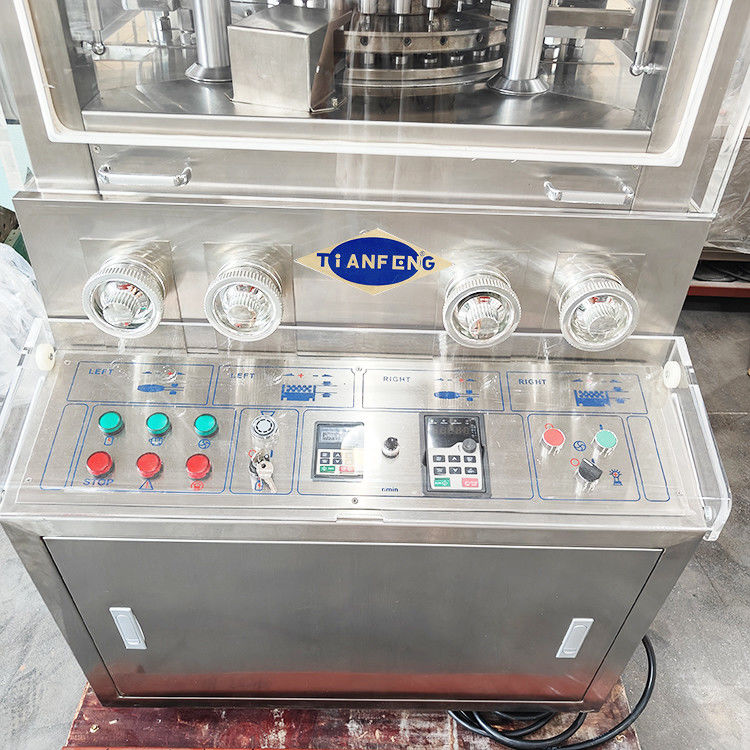

4. With mechanical and electrical integration, it adopts touch button and displaying( rotation speed, output, failure, etc).
5. The driving system is closed in the oil tank at the bottom of the machine. It is a safely isolated independent part without cross contamination, and the driving shaft is immersed in the oil tank to get sufficient lubrication with reduced noise and wear.
6. The machine is provided with a dust collector to thoroughly collect the dust in tht tablet pressing chamber.
7. When it makes double-layer tablets, the output will be reduced by half.
Technique Parameters of ZPW29 ZPW31 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets)29 | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) 1 layer | 80000-125000 | 90000-135000 |
| 2 layer | 40000-62500 | 45000-67500 |
| Motor (KW) | 5.5 | 5.5 |
| Overall dimensions (mm) | 1240×980×1690 | 1240×980×1690 |
| Net weight (KG) | 1800 |
1800 |
Tablet Press Machine Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Customization:
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Q: Are you trading company or manufacturer ?
We are factory, all machines are made by ourselves, and we have our R&D team so we also provide customize service and OEM.
Q: What Machine we make?
We engaged in making machines for the whole tablets production line and capsule production lines.
Q:What is your delivery time?
30 working days for Standard machine, We ship Monday through Saturday.
