Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZPW29 ZPW31

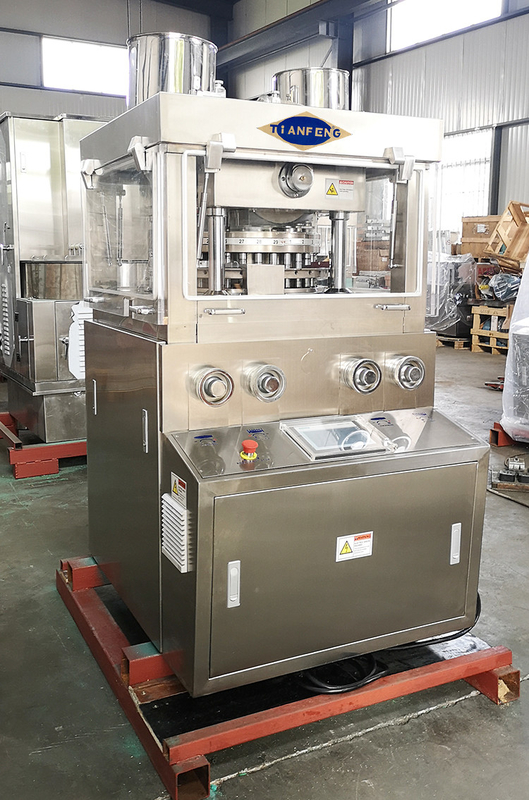

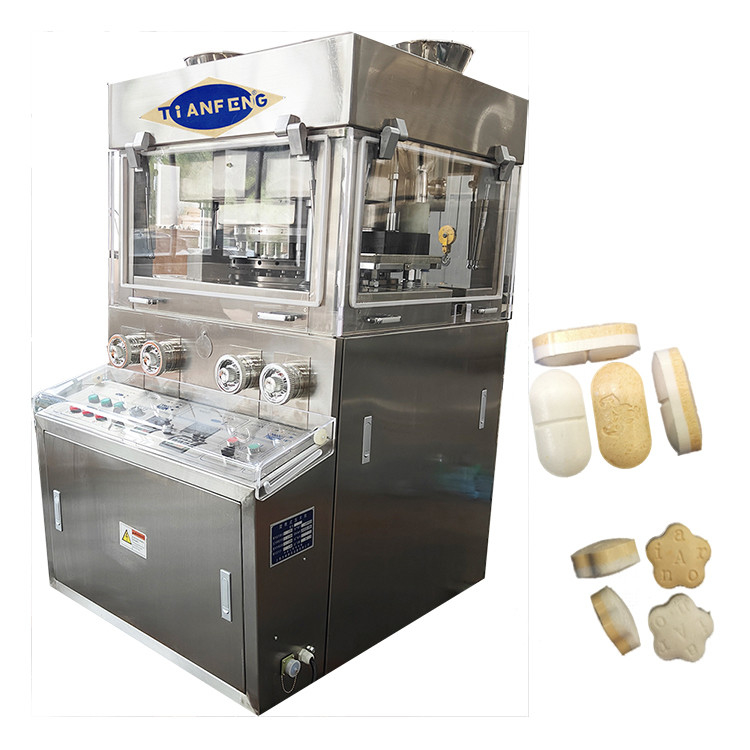

Up to diameter 25mm double layer effervescent pill Rotaty Tablet Press Machine
Main application
The rotary tablet press machine is a rotary tablet press machine which is widely used for pharmaceutical, food, chemical and electronic industry to produce all kinds of round tablets, irregular and double side engraved tablets.The most prominent advantage of this tablet press is that it is fully closed to prevent dust and pollution. In addition to making round tablets, it can also make special shaped tablets, double-layer tablets and ring-shaped tablets. During the operation, the noise is low and the pressure is high, the machine will stop in case of overpressure to avoid damage to it.
Operating principle:
Technique Parameters of ZPW29 ZPW31 Rotary Tablet Press Machine
| Model | ZPW29 | ZPW31 |
| Dies (sets)29 | 29 | 31 |
| Max. Pressure (KN) | 80 | 80 |
| Max. Dia. of tablet (mm) | 25 | 22 |
| Max. Filling Depth (mm) | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 |
| Turret speed (r/min) | 14-36 | 14-36 |
| Production capacity (pc/h) 1 layer | 80000-125000 | 90000-135000 |
| 2 layer | 40000-62500 | 45000-67500 |
| Motor (KW) | 5.5 | 5.5 |
| Overall dimensions (mm) | 1240×980×1690 | 1240×980×1690 |
| Net weight (KG) | 1800 |
1800 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped pharmaceutical pill press machine ZPW29 ZPW31 by sea.
A: We are a manufacturer,who has rich experiences in food, drinks , medical and cosmetic industrials,
we offer OEM services in the last over 30 years, and now we have our own brands and own designed machines for sale!
A: Generally all machines can be ready and shipped in 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
A:Certainly,.We have engineers available to service overseas.
