Place of Origin:
Shanghai, China
Brand Name:
Tianfeng
Certification:
CE/ISO
Model Number:
ZP5 ZP7 ZP9

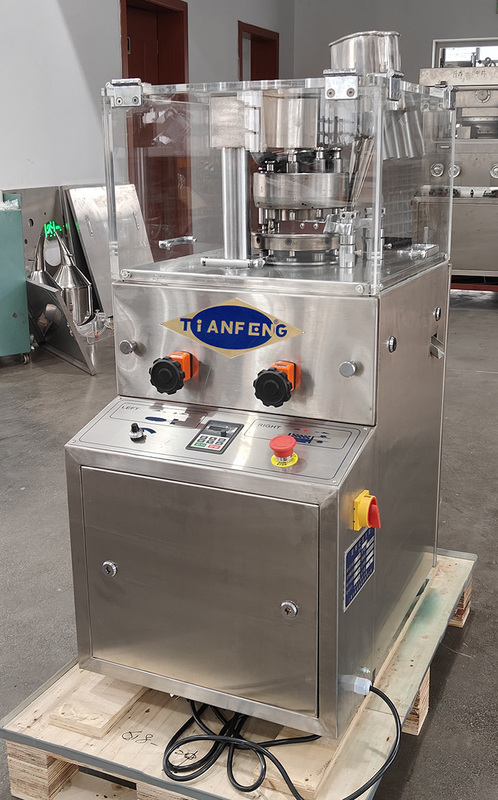

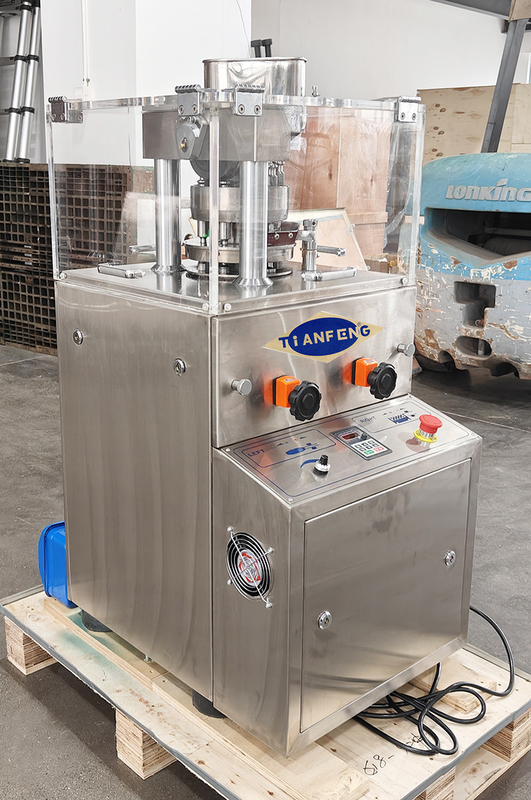

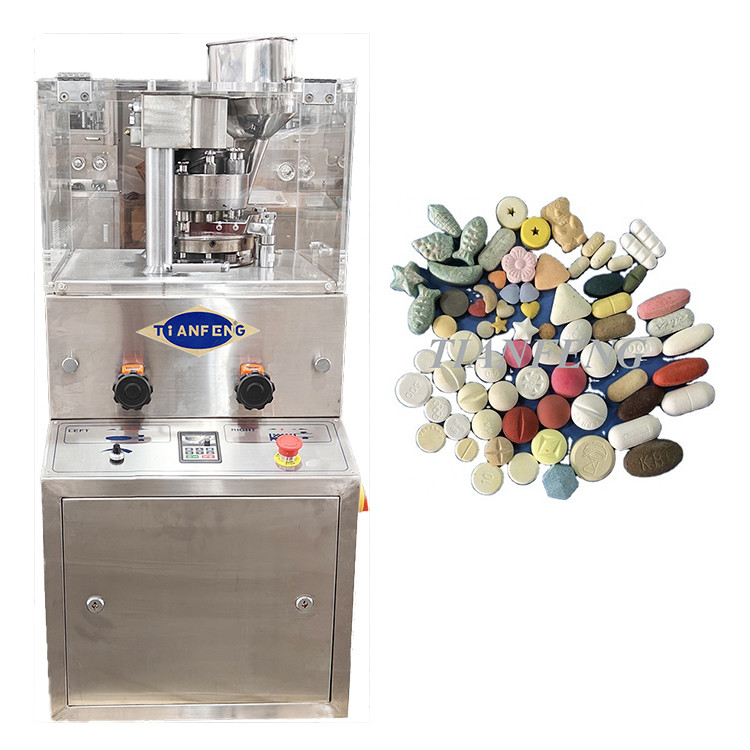

ZP5/7/9 Type Small Rotary Tablet Press Machine ( pharmaceutical machinery, pharmaceutical equipment)
Automatic Tablet Press machine is a single sided tablet press which is capable of producing tablets with diameters up to 12mm. With minimal operator and maintenance training demands, the machine provides a cost effective solution to small and medium batch tablet production.
It is a continuous automatic tablet press which can be used in the pharmaceutical, chemical, food, and electronic industries.
· The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement.
· It has transparent windows so that press condition can be observed clearly and the windows can be opened.
· Reliable safety sealing system and dust-proof system. Cleaning and maintenance is easier.
· The surface of the rotary table is specially treated to maintain surface gloss and prevent cross-contamination.
· Adopt frequency conversion speed control device for electrical speed control, which is easy to operate, smooth to run, safe and accurate.
· All transmissions are arranged inside the machine to keep the parts clean.
· Equipped with overload protection device, it can automatically stop when the pressure is overloaded.
· The machine is equipped with electromagnetic brake motor and other safety protection devices.

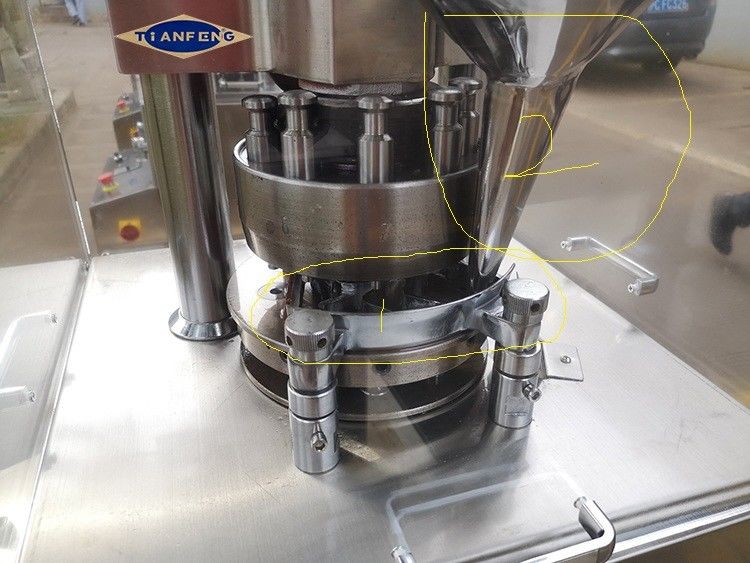

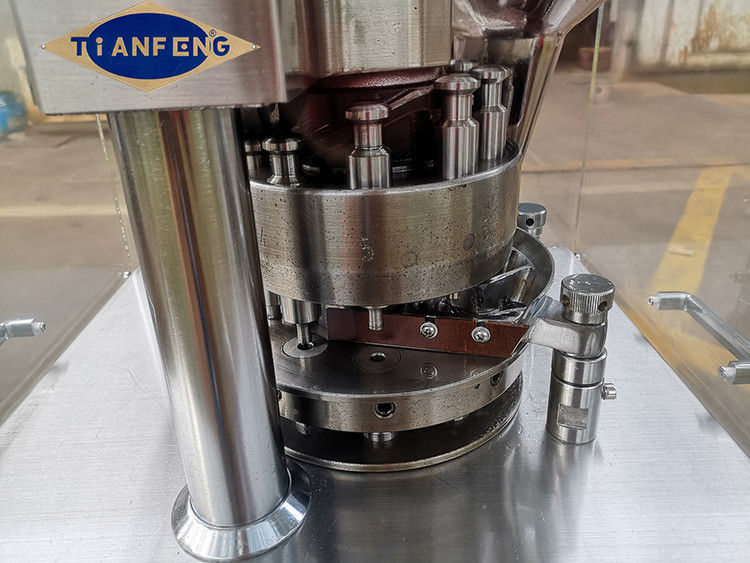

· The compression parts is entirely separated from the driving mechanisms.
· All spare parts to be in contact with the pharmaceuticals are made of stainless steel or the surface being treated specially for non-toxicity & corrosion proof.
· Machine speed, the depth of filling, the thickness of the tablet could be adjusted.
· Easily remove parts for quick machine’s maintenance.
Technical Parameters of ZP 5/7/9 rotary tablet press
| Model | ZP-5 | ZP-7 | ZP-9 |
| Dies (sets) | 5 | 7 | 9 |
| Max. Pressure (KN) | 60 | ||
| Max. Dia. of tablet (mm) | 20(special 22) | ||
| Max. Filling Depth (mm) | 15 | ||
| Thickness of largest tablet (mm) | 6 | ||
| Turret speed (r/min) | 30 | ||
| Production capacity (pc/h) | 9000 | 12600 | 16200 |
| Motor Power(KW) | 2.2 | ||
| Overall dimensions(mm) | 580*730*1200 | ||
| Net weight (kg) | 320 | ||
Step 1: Pack it in a simple and easy-to-assemble form.
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Spare Part Replacement
First round mold punch die set for free, discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
